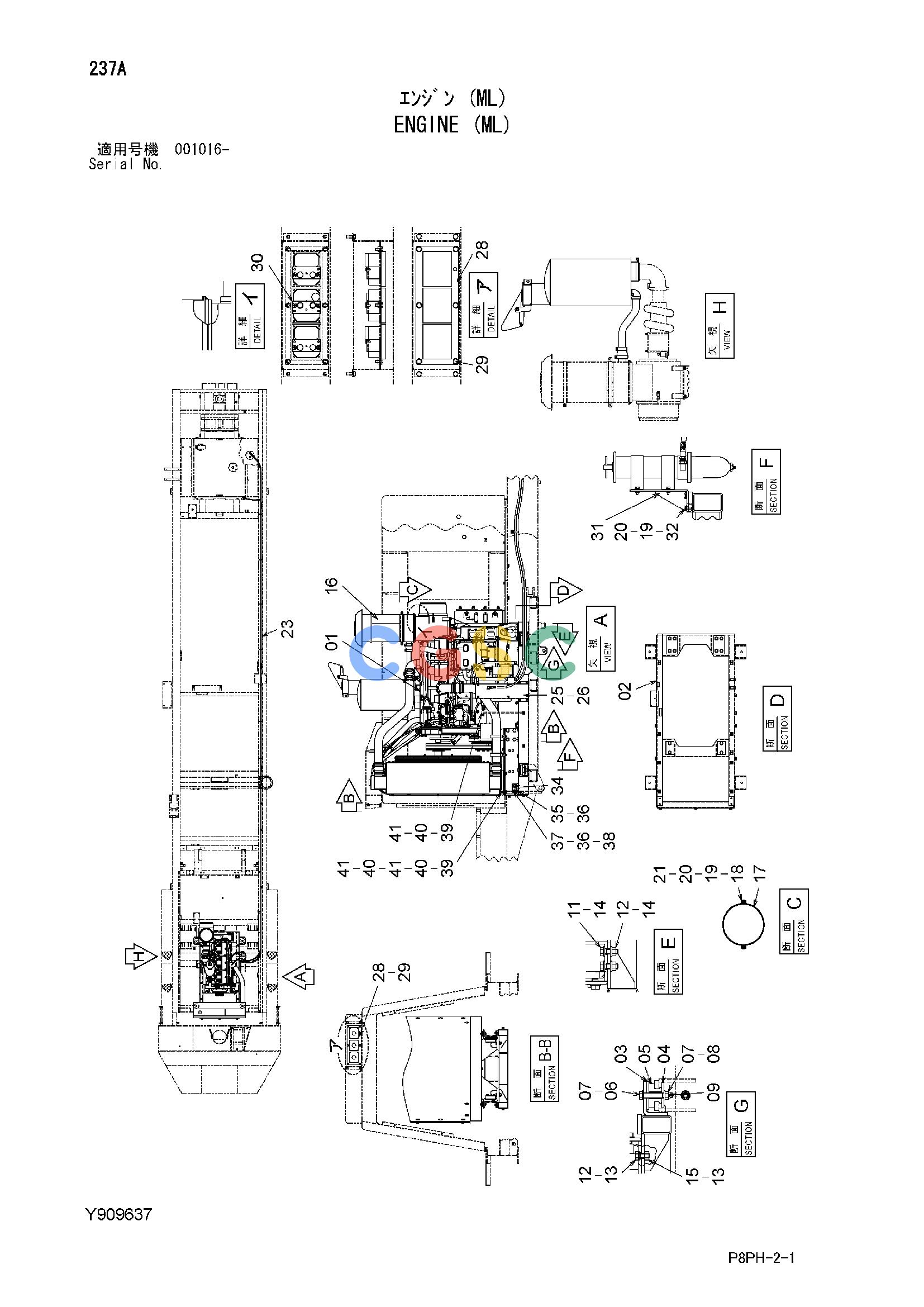

日立零件查询（AR2000）ENGINE (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411263 | [1] | ENGINE | |
| 02. | Y700935 | [1] | FRAME;ENGINE | |
| 03. | Y411466 | [4] | PLATE | |
| 04. | Y411467 | [4] | PLATE | |
| 05. | Y411463 | [4] | RUBBER | |
| 06. | Y410094 | [4] | BOLT | |
| 07. | J222018 | [8] | WASHER | |
| 08. | M641821 | [4] | NUT;CASTLE | |
| 09. | A764036 | [4] | PIN;SPLIT | |
| 11. | J922060 | [8] | BOLT | |
| 12. | J950020 | [12] | NUT | |
| 13. | A590120 | [8] | WASHER;PLANE | |
| 14. | J222020 | [16] | WASHER | |
| 15. | J922045 | [4] | BOLT | |
| 16. | Y802095 | [1] | PIPE | |
| 17. | Y411892 | [2] | CLAMP | |
| 18. | J901030 | [2] | BOLT | |
| 19. | A590110 | [6] | WASHER;PLANE | |
| 20. | A590910 | [6] | WASHER;SPRING | |
| 21. | J950010 | [2] | NUT | |
| 23. | +++++++ | [1] | FUEL TUBE (ML) | <for details: see separate page> |
| 25. | Y802058 | [1] | BRACKET | |
| 26. | J271020 | [4] | BOLT;SEMS | |
| 26A. | J901020 | [1] | BOLT | |
| 26B. | J222010 | [1] | WASHER | |
| 28. | Y301722 | [1] | PLATE | |
| 29. | J271025 | [6] | BOLT;SEMS | |
| 29A. | J901025 | [1] | BOLT | |
| 29B. | J222010 | [1] | WASHER | |
| 30. | Y413073 | [3] | BRACKET | |
| 31. | Y971416 | [1] | BRACKET | |
| 32. | J901025 | [4] | BOLT | |
| 34. | Y413158 | [2] | BRACKET | |
| 35. | J921230 | [4] | BOLT | |
| 36. | J222012 | [12] | WASHER | |
| 37. | J921240 | [4] | BOLT | |
| 38. | J950012 | [4] | NUT | |
| 39. | Y415412 | [2] | HOSE;RUBBER | |
| 40. | 4514699 | [2] | CLAMP;HOSE | |
| 41. | 4055312 | [2] | CLIP;BAND | |
| 42. | Y415413 | [1] | REDUCER | |
| 43. | Y415423 | [1] | VALVE | |
