纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[07]) - ROPS CAB WITH CONDITIONER - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
784 次

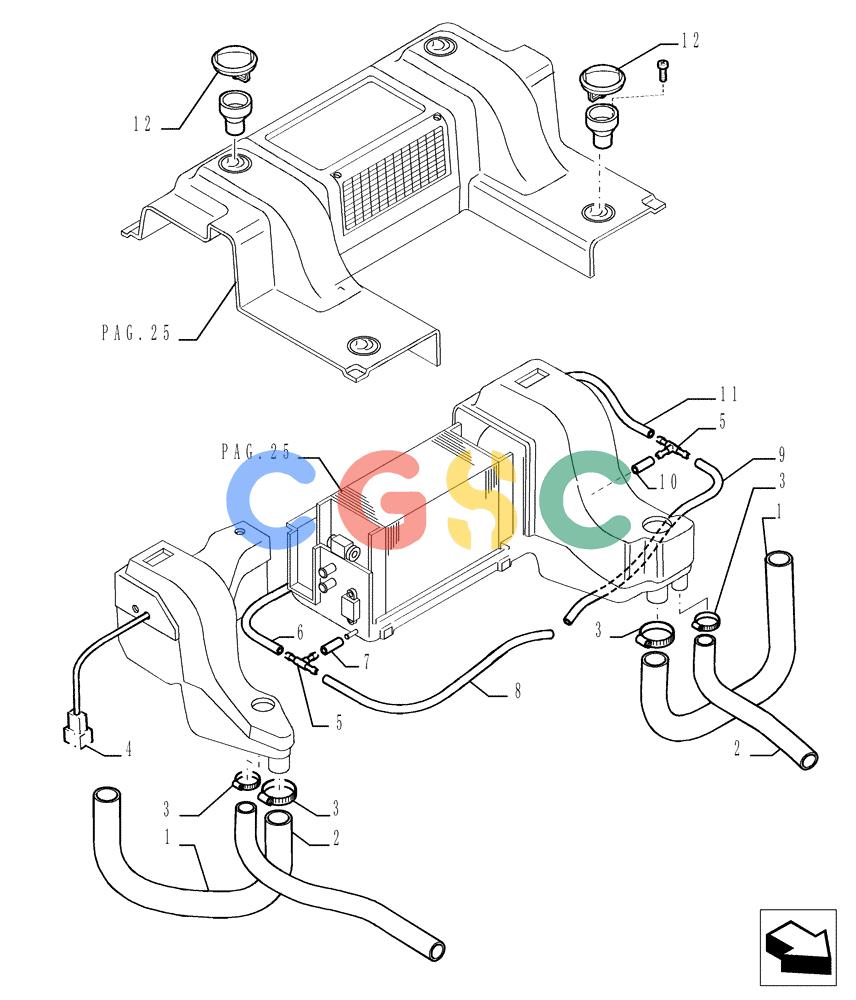

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093590 | [1] | AIR DUCT | LECD60 |
| 1. | 76093591 | [1] | AIR DUCT | LECD60 |
| 2. | 76093588 | [1] | AIR DUCT | LECD50 |
| 2. | 76093589 | [1] | AIR DUCT | LECD50 |
| 3. | 76092238 | [4] | HOSE CLAMP | LECD50 |
| 4. | 76092234 | [2] | WIRE HARNESS | LEC |
| 5. | 76093584 | [2] | TEE | LEC |
| 6. | 76093578 | [1] | HOSE | LEC240mm |
| 7. | 76093579 | [1] | FLEXIBLE HOSE | LEC100mm |
| 8. | 76093580 | [1] | FLEXIBLE HOSE | LEC1M |
| 9. | 76093581 | [1] | FLEXIBLE HOSE | LEC1M |
| 10. | 76093582 | [1] | FLEXIBLE HOSE | LEC250mm |
| 11. | 76093583 | [1] | FLEXIBLE HOSE | LEC500mm |
| 12. | 76067705 | [4] | DIFFUSER | LEC |
