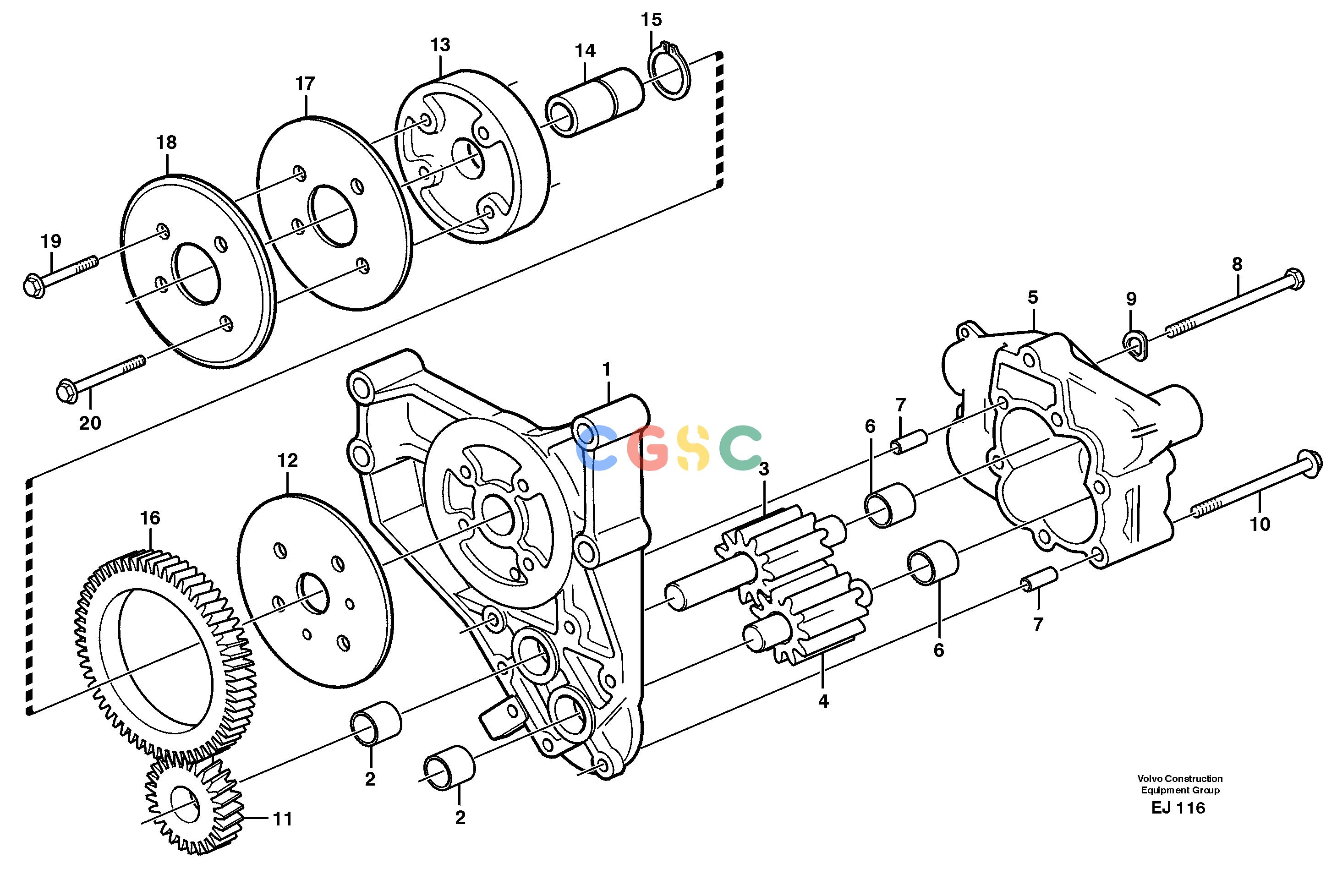

沃尔沃零件查询L330D Oil pumpNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE1556730
|
[1] |
Oil pump
|
|
| 1. |
VOE1543965
|
[1] |
Bracket
|
|
| 2. |
VOE1543978
|
[2] |
Bushing
|
|
| 3. |
|
[1] |
Gear
|
|
| 4. |
|
[1] |
Gear
|
|
| |
VOE1556019
|
[1] |
Oil pump housing
|
|
| 5. |
VOE1556020
|
[1] |
Housing
|
|
| 6. |
VOE1543978
|
[2] |
Bushing
|
|
| 7. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 8. |
VOE100223
|
[3] |
Screw
|
|
| 9. |
VOE13941907
|
[3] |
Washer
|
|
| 10. |
VOE13965183
|
[3] |
Flange screw
|
|
| 11. |
VOE1556097
|
[1] |
Gear
|
|
| 12. |
VOE1543598
|
[1] |
Thrust washer
|
|
| 13. |
VOE11999702
|
[1] |
Hub
|
|
| 14. |
VOE1543597
|
[1] |
Pin
|
|
| 15. |
VOE914459
|
[1] |
Snap ring
|
|
| 16. |
VOE1543450
|
[1] |
Idler gear
|
|
| 17. |
VOE11999703
|
[1] |
Thrust washer
|
|
| 18. |
VOE1543901
|
[1] |
Bearing shield
|
|
| 19. |
VOE60113098
|
[3] |
Flange screw
|
L = 50 MM
|
| 20. |
VOE984758
|
[1] |
Flange screw
|
L = 70 MM
|
| |
VOE276871
|
[1] |
Repair kit
|
|
