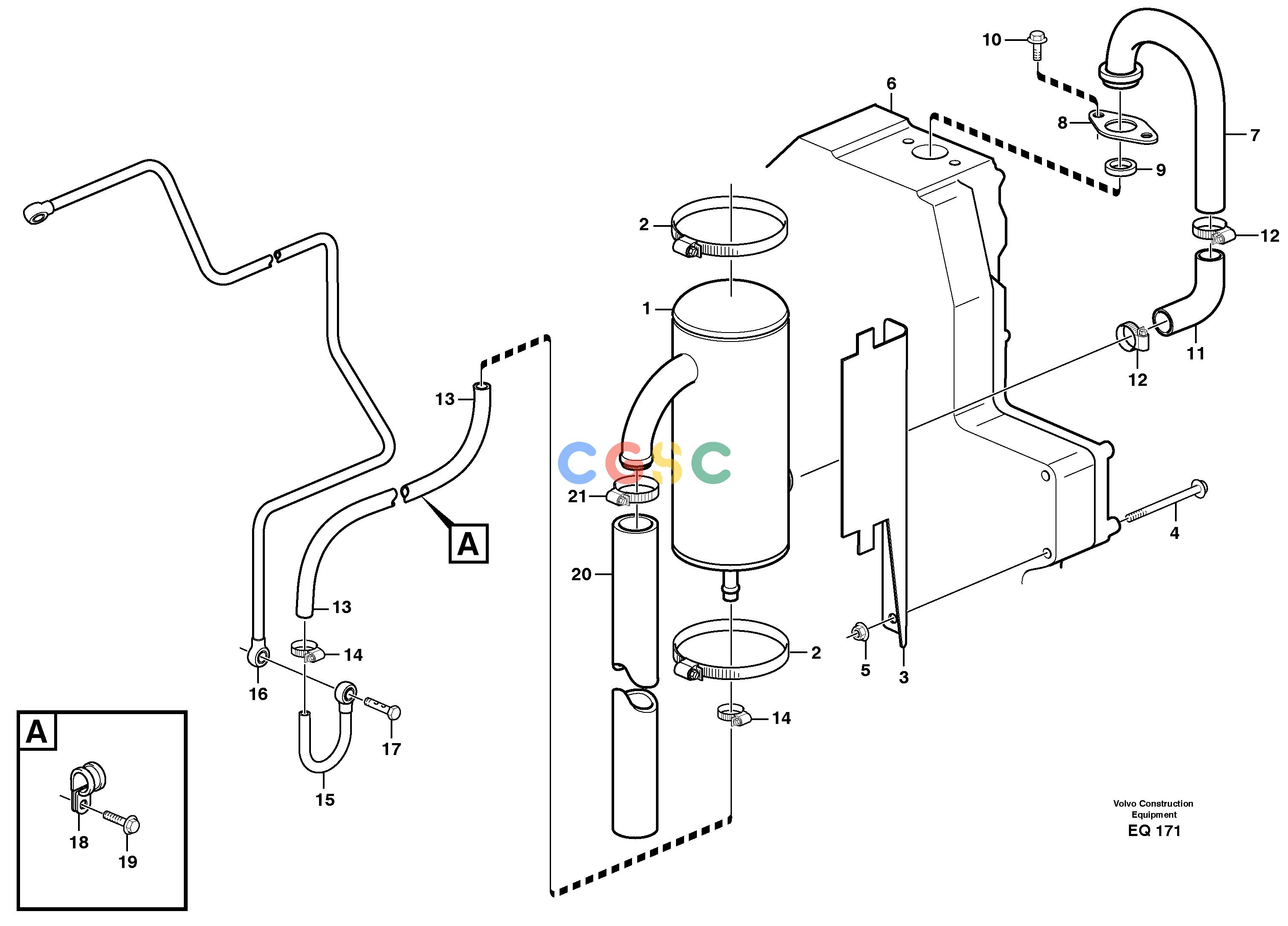

沃尔沃零件查询L330E Crankcase ventilationNone8188181-31712VOE8188181NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
589 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033878
|
[1] |
Oil trap
|
|
| 2. |
VOE961676
|
[2] |
Hose clamp
|
|
| 3. |
VOE11032101
|
[1] |
Bracket
|
|
| 4. |
VOE965197
|
[2] |
Flange screw
|
|
| 5. |
VOE971096
|
[2] |
Flange nut
|
|
| 6. |
|
[1] |
Tmg Gear Cover
|
|
| |
VOE11032298
|
[1] |
Pipe
|
|
| 7. |
VOE11032102
|
[1] |
Pipe
|
|
| 8. |
VOE11032105
|
[1] |
Washer
|
|
| 9. |
VOE22194880
|
[1] |
Sealing ring
|
|
| 10. |
VOE946440
|
[2] |
Flange screw
|
|
| 11. |
VOE11032106
|
[1] |
Hose
|
|
| 12. |
VOE943475
|
[2] |
Hose clamp
|
|
| 13. |
VOE983342
|
[REQ] |
Hose
|
L = 900 MM
|
| 14. |
VOE943470
|
[2] |
Hose clamp
|
|
| 15. |
VOE11030944
|
[1] |
Pipe
|
|
| 16. |
|
[1] |
Oil return pipe
|
|
| 17. |
|
[1] |
Hollow screw
|
|
| 18. |
VOE13949747
|
[1] |
Clamp
|
|
| 19. |
VOE13946544
|
[1] |
Screw
|
|
| 20. |
VOE927661
|
|
Rubber hose
|
L = 760 MM
|
| 21. |
VOE943475
|
|
Hose clamp
|
|
