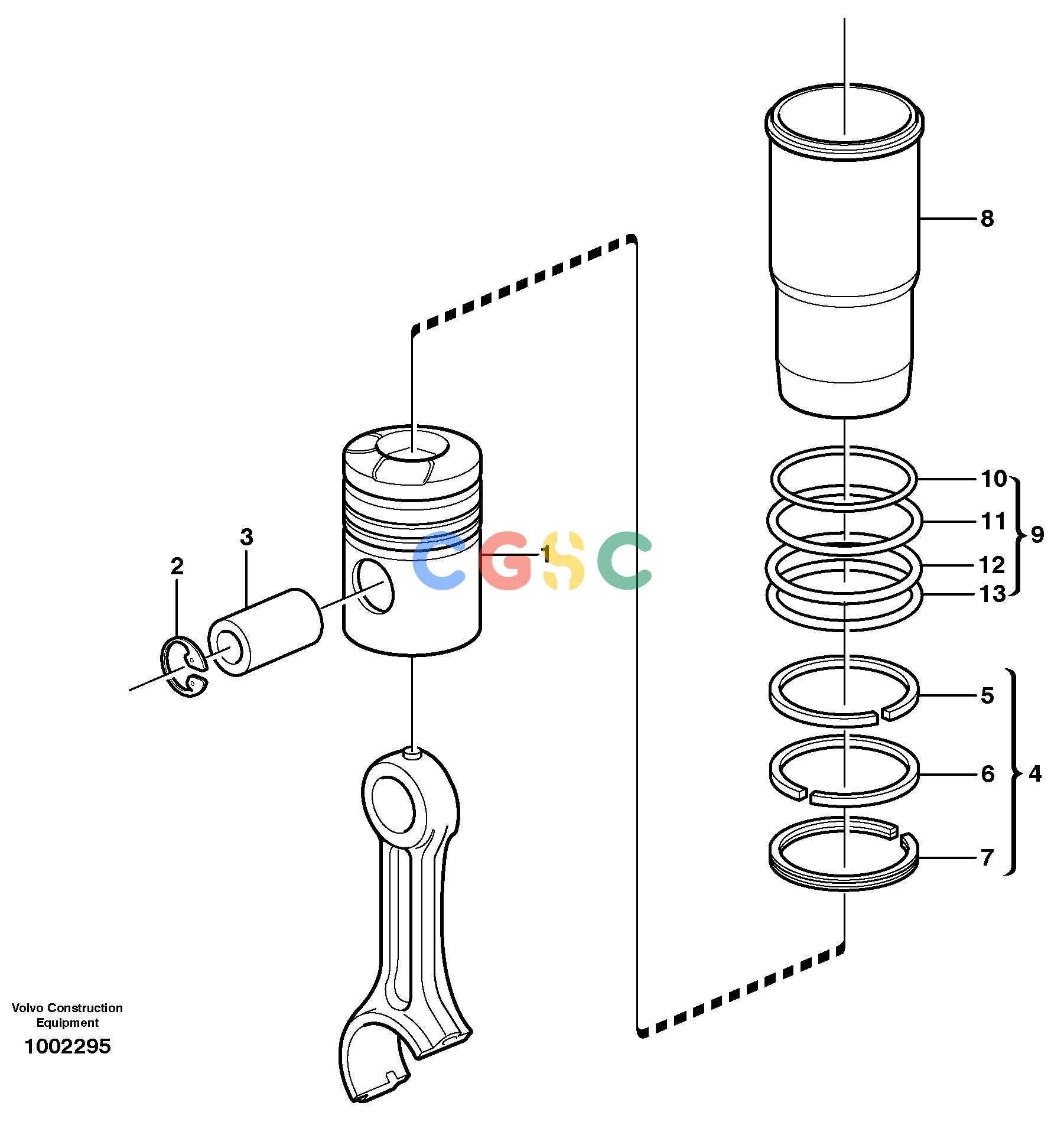

沃尔沃零件查询L330E Cylinder liner and pistonNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1556963
|
[6] |
Piston
|
|
| 2. |
VOE914532
|
[12] |
Retaining ring
|
|
| 3. |
VOE1556939
|
[6] |
Gudgeon pin
|
|
| 4. |
VOE276840
|
[6] |
Piston ring kit
|
|
| 5. |
VOE1556578
|
[6] |
Compression ring
|
|
| 6. |
VOE1556566
|
[6] |
Compression ring
|
|
| 7. |
VOE1556580
|
[6] |
Compression ring
|
|
| 8. |
VOE1556533
|
[6] |
Cylinder Liner
|
|
| 9. |
VOE270935
|
[6] |
Sealing kit
|
|
| 10. |
VOE1543507
|
[6] |
Sealing ring
|
|
| 11. |
VOE1543501
|
[6] |
Sealing ring
|
|
| 12. |
VOE1543568
|
[12] |
Sealing ring
|
|
| 13. |
VOE1543373
|
[6] |
Sealing ring
|
|
| |
VOE11706643
|
[6] |
Cylinder liner kit
|
|
