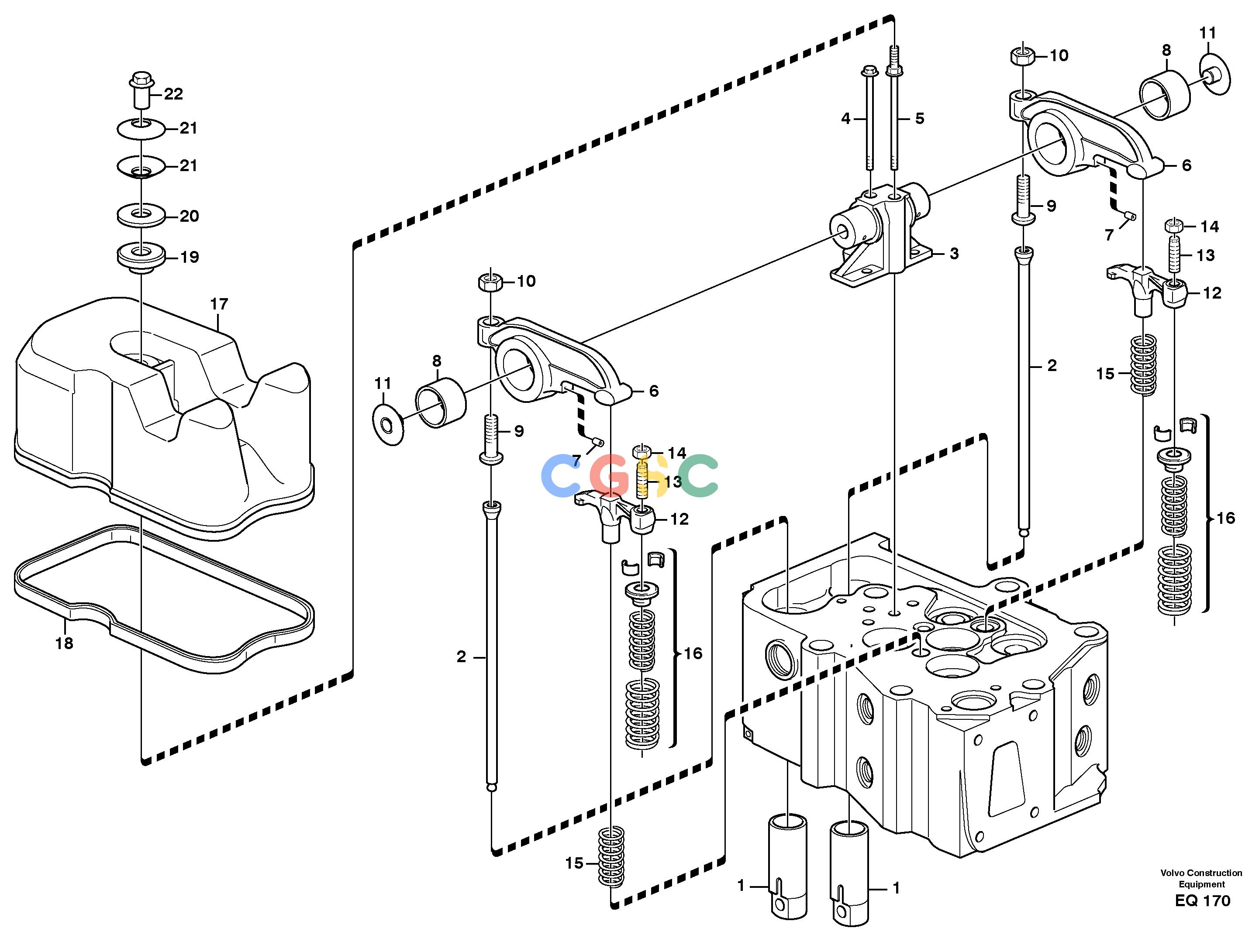

沃尔沃零件查询L330E Valve mechanismNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1556947
|
[12] |
Tappet
|
|
| 2. |
VOE20381951
|
[12] |
Push rod
|
|
| 3. |
VOE1543476
|
[6] |
Bearing bracket
|
|
| 4. |
VOE13975105
|
[6] |
Flange screw
|
|
| 5. |
VOE11999700
|
[6] |
Stud
|
|
| 6. |
VOE1543441
|
[12] |
Rocker arm
|
|
| 7. |
VOE1543723
|
[24] |
Jet
|
|
| 8. |
VOE1543443
|
[12] |
Bushing
|
|
| 9. |
VOE1543372
|
[12] |
Screw
|
|
| 10. |
VOE13946911
|
[12] |
Nut
|
|
| 11. |
VOE1543508
|
[12] |
Lock plug
|
|
| 12. |
VOE1556167
|
[12] |
Yoke
|
|
| 13. |
VOE1543368
|
[12] |
Adjusting screw
|
|
| 14. |
VOE13946911
|
[12] |
Nut
|
|
| 15. |
VOE1543981
|
[12] |
Compression spring
|
|
| 16. |
|
[12] |
Valve collet
|
|
| 17. |
VOE1543469
|
[6] |
Valve cover
|
|
| 18. |
VOE1543581
|
[6] |
Sealing strip
|
|
| 19. |
VOE1543582
|
[6] |
Ring
|
|
| 20. |
VOE1543657
|
[6] |
Washer
|
|
| 21. |
VOE13943819
|
[12] |
Disc spring
|
|
| 22. |
VOE1543654
|
[6] |
Cap nut
|
|
