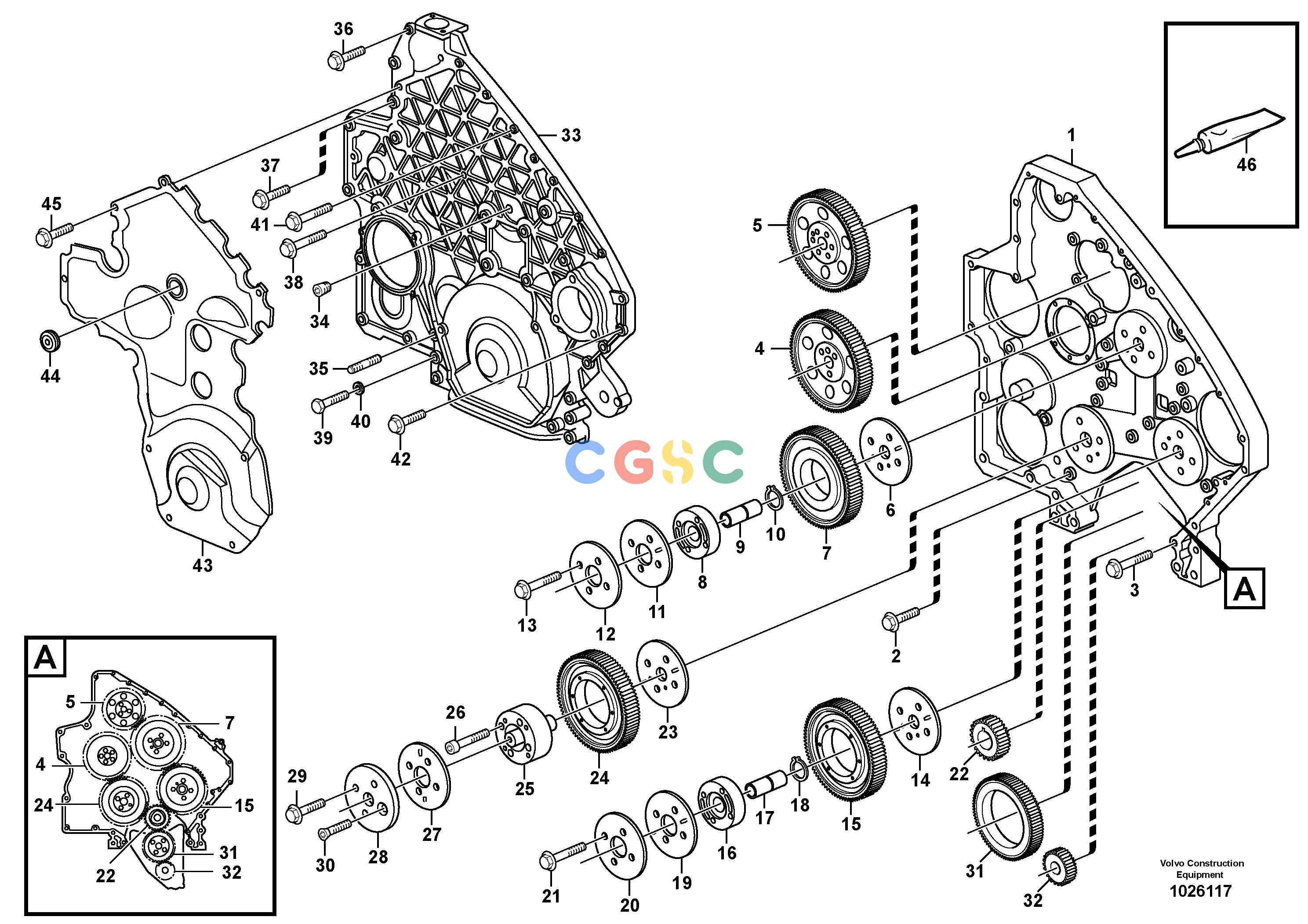

沃尔沃零件查询L330E Timing gear casing and gearsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1556660
|
[1] |
Timing gear casing
|
|
| 2. |
VOE13978266
|
[14] |
Flange screw
|
M8 x 35 MM
|
| 3. |
VOE13978267
|
[1] |
Flange screw
|
M8 x 50 MM
|
| 4. |
|
[1] |
Gear
|
|
| 5. |
|
[1] |
Gear
|
|
| 6. |
VOE1543598
|
[1] |
Thrust washer
|
|
| 7. |
VOE1543897
|
[1] |
Idler
|
|
| 8. |
VOE11999702
|
[1] |
Hub
|
|
| 9. |
VOE1543597
|
[1] |
Pin
|
|
| 10. |
VOE914459
|
[1] |
Snap ring
|
|
| 11. |
VOE11999703
|
[1] |
Thrust washer
|
|
| 12. |
VOE1543901
|
[1] |
Bearing shield
|
|
| 13. |
VOE471513
|
[4] |
Screw
|
|
| 14. |
VOE1543598
|
[1] |
Thrust washer
|
|
| 15. |
VOE1543445
|
[1] |
Idler
|
|
| 16. |
VOE11999702
|
[1] |
Hub
|
|
| 17. |
VOE1543597
|
[1] |
Pin
|
|
| 18. |
VOE914459
|
[1] |
Snap ring
|
|
| 19. |
VOE11999703
|
[1] |
Thrust washer
|
|
| 20. |
VOE1543901
|
[1] |
Bearing shield
|
|
| 21. |
VOE471513
|
[4] |
Screw
|
|
| 22. |
|
[1] |
Gear
|
|
| 23. |
VOE1543598
|
[1] |
Thrust washer
|
|
| 24. |
VOE1556652
|
[1] |
Idler gear
|
|
| 25. |
VOE1556649
|
[1] |
Hub
|
|
| 26. |
VOE13974111
|
[4] |
Allen Hd Screw
|
|
| 27. |
VOE1556651
|
[1] |
Thrust washer
|
|
| 28. |
VOE1556650
|
[1] |
Bearing shield
|
|
| 29. |
VOE13975204
|
[3] |
Flange screw
|
|
| 30. |
VOE13944830
|
[1] |
Allen Head Screw
|
|
| 31. |
|
[1] |
Idler gear
|
|
| 32. |
|
[1] |
Gear
|
|
| 33. |
VOE11032187
|
[1] |
Timing gear cover
|
|
| 34. |
VOE3964715
|
[1] |
Plug
|
|
| 35. |
VOE11032186
|
[1] |
Stud
|
|
| 36. |
VOE13947760
|
[4] |
Screw
|
M8 x 40 MM
|
| 37. |
VOE13965220
|
[4] |
Screw
|
M10 x 45 MM
|
| 38. |
VOE13947790
|
[3] |
Screw
|
M10 x 80 MM
|
| 39. |
VOE13970993
|
[1] |
Hexagon screw
|
M14 x 25 MM
|
| 40. |
VOE976929
|
[1] |
Gasket
|
|
| 41. |
VOE13965182
|
[2] |
Screw
|
M8 x 80 MM
|
| 42. |
VOE13948217
|
[1] |
Screw
|
M8 x 45 MM
|
| 43. |
VOE1556176
|
[1] |
Noise shield
|
|
| 44. |
VOE943920
|
[1] |
Plug
|
|
| 45. |
VOE13946501
|
[8] |
Screw
|
|
| 46. |
VOE1161277
|
[REQ] |
Sealant
|
20 GRAM
|
| |
VOE11713514
|
[REQ] |
Sealant
|
304 ML
|
