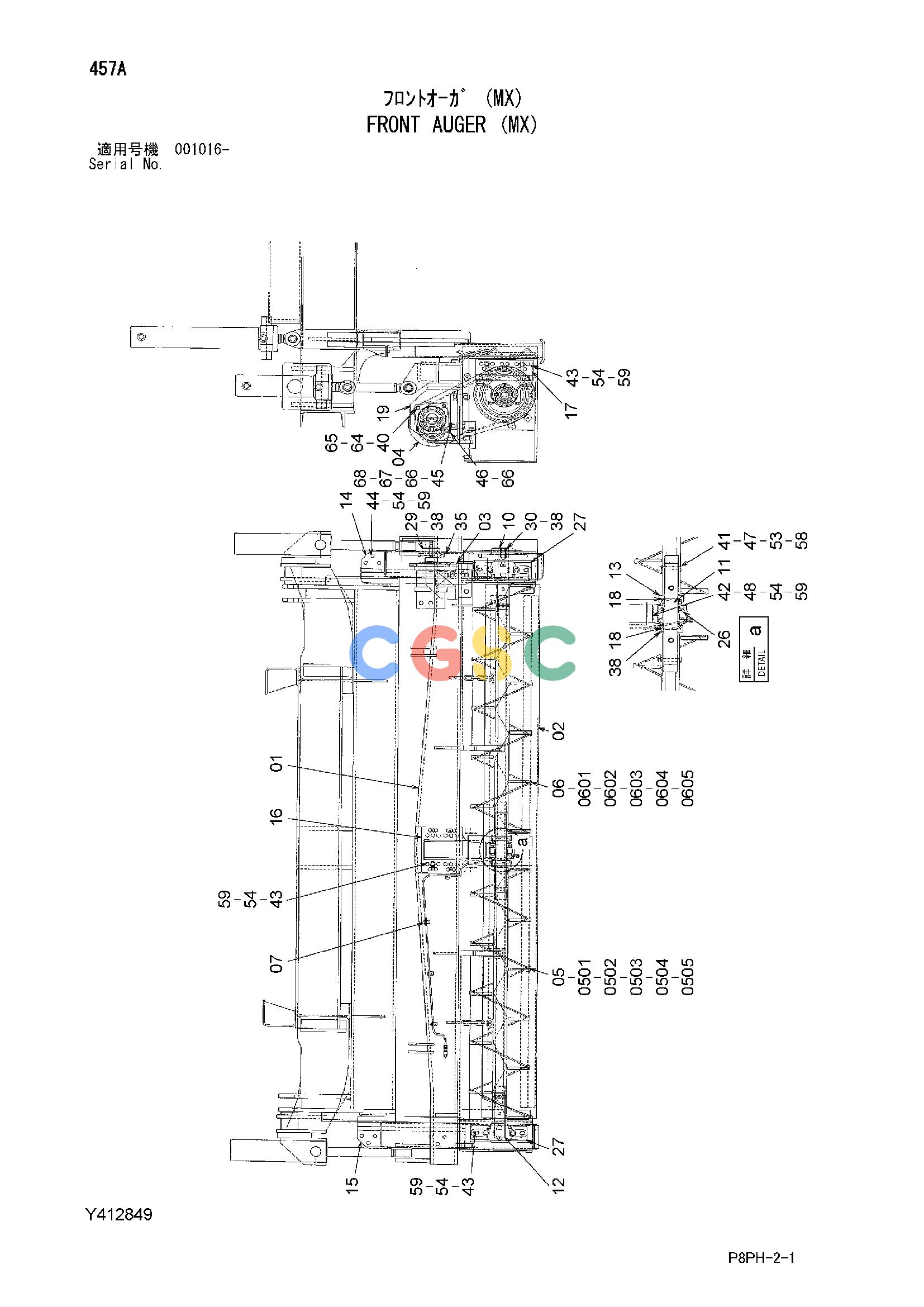

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | +++++++ | [1] | AUGER FRAME | |
| 02. | +++++++ | [1] | COVER | |
| 03. | +++++++ | [1] | RIGHT･LEFT･HOUSING | |
| 04. | +++++++ | [1] | CHAIN GUARD | |
| 05. | +++++++ | [1] | LEFT AUGER ASS'Y | |
| 0501. | +++++++ | [1] | LEFT WELDED AUGER | |
| 0502. | Y409056 | [15] | SCREW LINER | |
| 0503. | +++++++ | [30] | BOLT;FLUSH (M12X50) | |
| 0504. | J950012 | [30] | NUT | |
| 0505. | A590912 | [30] | WASHER;SPRING | |
| 06. | +++++++ | [1] | RIGHT AUGER ASS'Y | |
| 0601. | +++++++ | [1] | RIGHT WELDED AUGER | |
| 0602. | Y409057 | [15] | SCREW LINER | |
| 0603. | +++++++ | [30] | BOLT;FLUSH (M12X50) | |
| 0604. | J950012 | [30] | NUT | |
| 0605. | A590912 | [30] | WASHER;SPRING | |
| 07. | +++++++ | [1] | GREASE PIPING | |
| 10. | +++++++ | [1] | RIGHT SHAFT | |
| 11. | +++++++ | [1] | MIDDLE SHAFT | |
| 12. | +++++++ | [1] | LEFT SHAFT | |
| 13. | +++++++ | [2] | SEAL HOUSING | |
| 14. | +++++++ | [1] | GUIDE RIGHT | |
| 15. | +++++++ | [1] | GUIDE LEFT | |
| 16. | +++++++ | [1] | BRG. BRACKET | |
| 17. | +++++++ | [2] | BRG. BRACKET | |
| 18. | +++++++ | [2] | SEAL | |
| 19. | +++++++ | [1] | MOTOR BRACKET | |
| 26. | +++++++ | [1] | BRG. | NTN SN511 +LH-22211BK;H311X |
| 27. | +++++++ | [2] | BRG. | NTN SN511 +LH-22211BK;H311X |
| 29. | +++++++ | [1] | SPROCKET (#80X13T) | |
| 30. | +++++++ | [1] | SPROCKET (#80X26T) | |
| 35. | +++++++ | [1] | CHAIN (#80X47LINKS) | |
| 35A. | +++++++ | [1] | CHAIN (OFFSET) | TSUBAKIMOTO RS80 (OL) |
| 38. | +++++++ | [4] | SCREW;SET (M10X20) | |
| 40. | +++++++ | [4] | BOLT (M14X60, 10.9) | |
| 41. | J921290 | [8] | BOLT | |
| 42. | J921680 | [2] | BOLT | |
| 43. | J921650 | [14] | BOLT | |
| 44. | J921640 | [12] | BOLT | |
| 45. | J922055 | [4] | BOLT | |
| 46. | +++++++ | [2] | BOLT (M20X100) | |
| 47. | J950012 | [8] | NUT | |
| 48. | J950016 | [20] | NUT | |
| 53. | A590112 | [8] | WASHER;PLANE | |
| 54. | A590116 | [22] | WASHER;PLANE | |
| 58. | A590912 | [8] | WASHER;SPRING | |
| 59. | A590916 | [28] | WASHER;SPRING | |
| 64. | J950014 | [4] | NUT | |
| 65. | A590914 | [4] | WASHER;SPRING | |
| 66. | J950020 | [6] | NUT | |
| 67. | J257220 | [4] | WASHER;SPRING | |
| 68. | A590120 | [4] | WASHER;PLANE |
