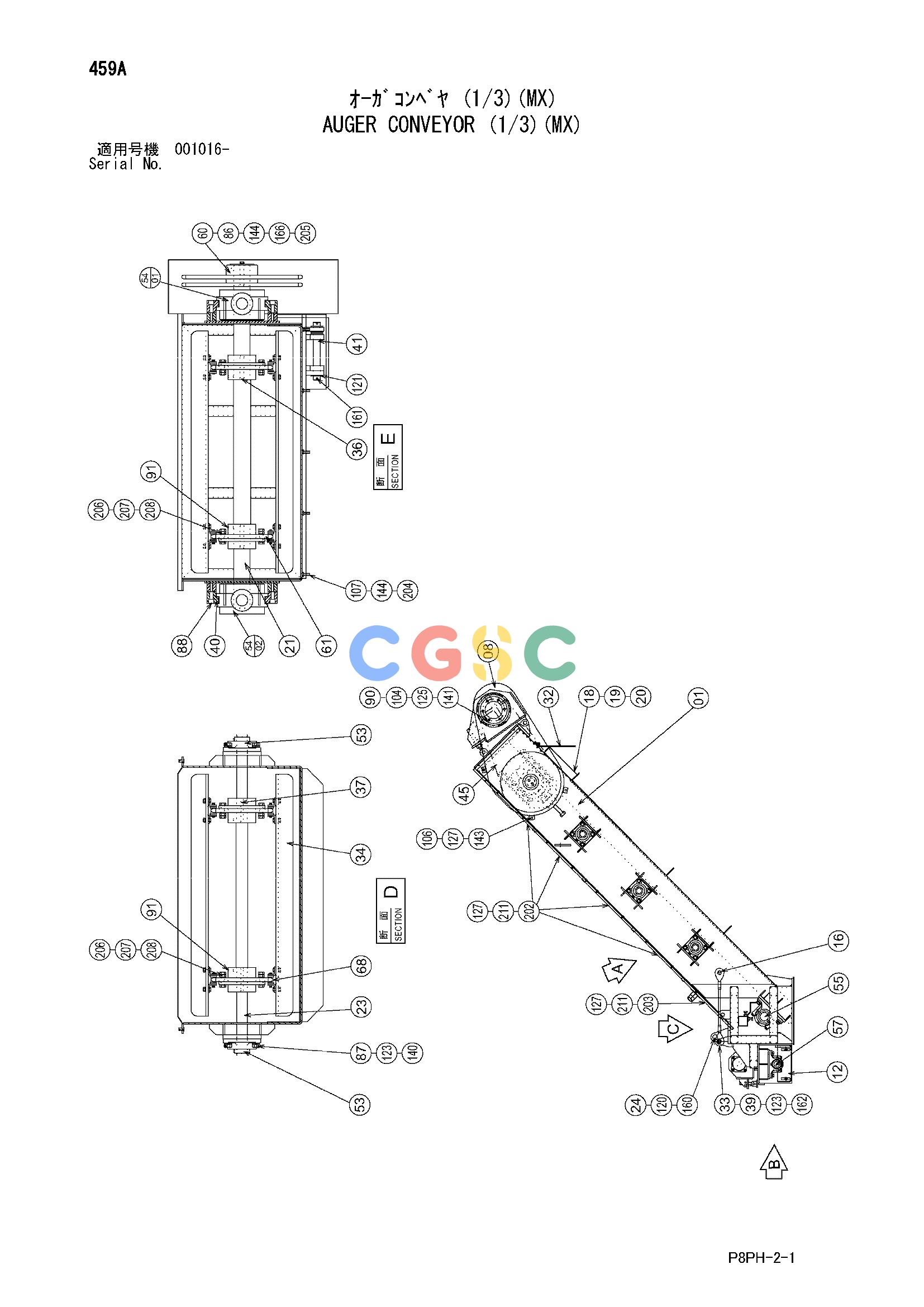

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | +++++++ | [1] | CONVEYOR FRAME | |
| 08. | +++++++ | [1] | SHIELD | |
| 12. | +++++++ | [1] | SLIDE LEFT | |
| 16. | Y415437 | [2] | WIRE | |
| 18. | Y410419 | [2] | SHIM | |
| 19. | Y410421 | [2] | SHIM | |
| 20. | Y410422 | [2] | SHIM | |
| 21. | +++++++ | [1] | SHAFT | |
| 23. | +++++++ | [3] | SHAFT | |
| 24. | +++++++ | [2] | PIN | |
| 32. | +++++++ | [1] | APRON | |
| 33. | +++++++ | [2] | PIN | |
| 34. | +++++++ | [18] | ANGLE | |
| 36. | +++++++ | [4] | KEY | |
| 37. | +++++++ | [6] | KEY | |
| 39. | +++++++ | [2] | SLEEVE | |
| 40. | +++++++ | [4] | MOULDING | |
| 41. | +++++++ | [1] | PIN | |
| 45. | +++++++ | [1] | CHAIN | TSUBAKIMOTO RS100-2, 90LINKS |
| 45A. | Y415793 | [1] | CHAIN (OFFSET) | |
| 53. | +++++++ | [6] | BRG. | NTN UCF310 |
| 5401. | +++++++ | [1] | BRG. | TV-517 |
| 5402. | +++++++ | [1] | BRG. | TV-517 |
| 55. | +++++++ | [1] | BRG. | NTN SN517 +LH-22217BK;H317X |
| 57. | +++++++ | [2] | BRG. | NTN SN511 +LH-22211BK;H311X |
| 60. | +++++++ | [1] | CHAIN WHEEL | |
| 61. | +++++++ | [4] | CHAIN WHEEL | RF204-S-13T-CW1, dia. 75 |
| 68. | +++++++ | [6] | CHAIN WHEEL | RF204-S-13T-CW1, dia. 50 |
| 86. | J901035 | [2] | BOLT | |
| 87. | J922045 | [24] | BOLT | |
| 88. | J781270 | [24] | BOLT;SOCKET | |
| 90. | J901665 | [10] | BOLT | |
| 91. | +++++++ | [20] | SCREW;SET (M8X16, 8.8) | |
| 104. | J950016 | [10] | NUT | |
| 106. | J950012 | [3] | NUT | |
| 107. | J950010 | [5] | NUT | |
| 120. | A590145 | [4] | WASHER;PLANE | |
| 121. | A590130 | [5] | WASHER;PLANE | |
| 123. | A590120 | [28] | WASHER;PLANE | |
| 125. | A590116 | [10] | WASHER;PLANE | |
| 127. | A590112 | [23] | WASHER;PLANE | |
| 140. | A590920 | [24] | WASHER;SPRING | |
| 141. | A590916 | [10] | WASHER;SPRING | |
| 143. | A590912 | [3] | WASHER;SPRING | |
| 144. | A590910 | [7] | WASHER;SPRING | |
| 160. | A768090 | [4] | PIN;SPLIT | |
| 161. | +++++++ | [2] | PIN;SPLIT (dia. 6.3X60) | |
| 162. | A765040 | [4] | PIN;SPLIT | |
| 166. | +++++++ | [1] | KEY | |
| 202. | +++++++ | [4] | COVER | |
| 203. | +++++++ | [1] | COVER | |
| 204. | +++++++ | [1] | BAR | |
| 205. | +++++++ | [1] | END PLATE | |
| 206. | J921660 | [80] | BOLT | |
| 207. | +++++++ | [80] | HARD LOCK NUT (M16) | |
| 208. | A590116 | [160] | WASHER;PLANE | |
| 211. | 4022699 | [20] | PIN;LOCK |
