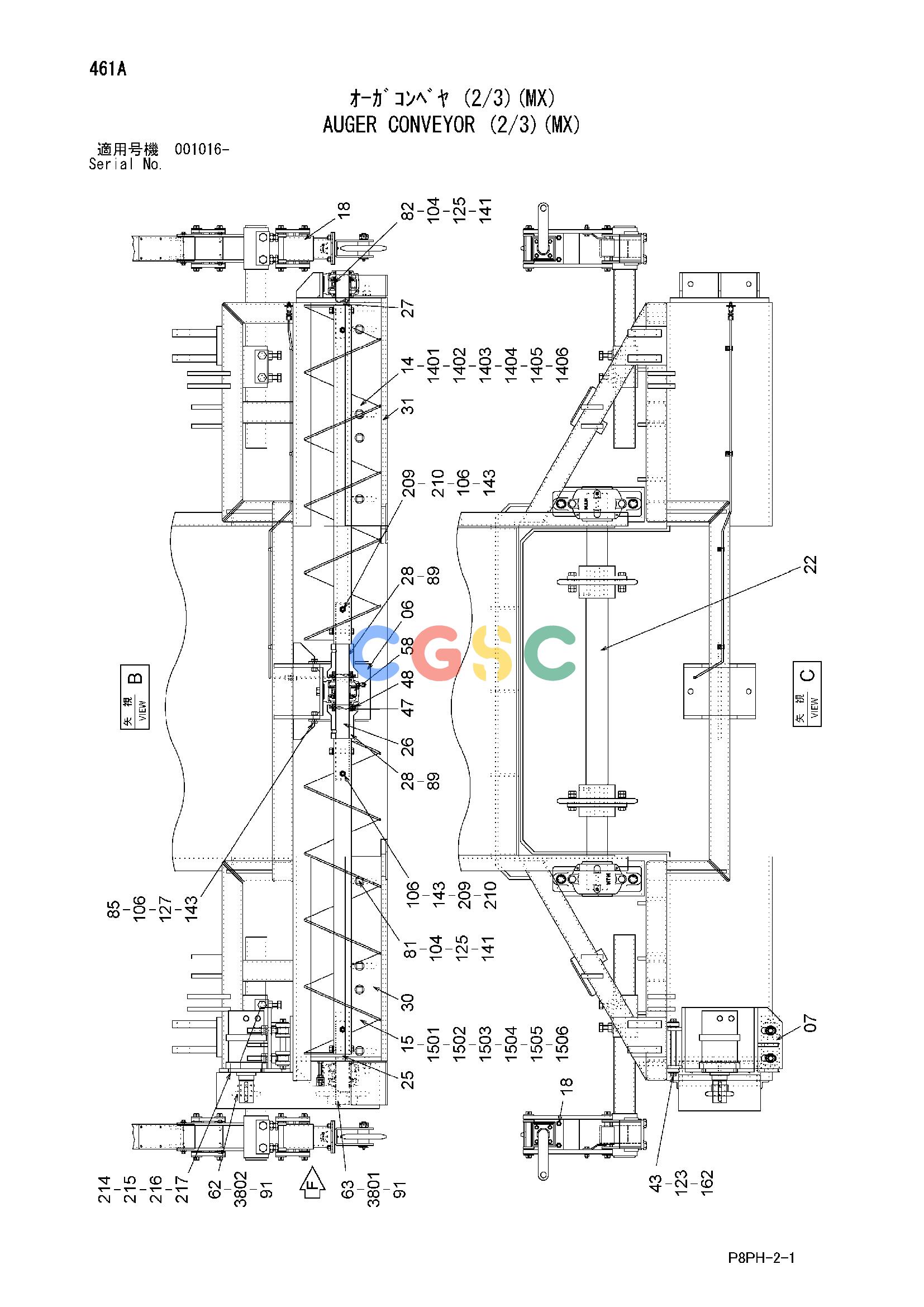

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 06. | +++++++ | [1] | BRG. SHEELD | |
| 07. | +++++++ | [1] | MOTOR BASE | |
| 14. | +++++++ | [1] | AUGER LEFT ASS'Y | |
| 1401. | +++++++ | [1] | AUGER | |
| 1402. | Y409057 | [15] | SCREW LINER | |
| 1403. | +++++++ | [30] | BOLT;FLUSH (M12X35) | |
| 1404. | J950012 | [30] | NUT | |
| 1405. | A590112 | [30] | WASHER;PLANE | |
| 1406. | A590912 | [30] | WASHER;SPRING | |
| 15. | +++++++ | [1] | AUGER RIGHT ASS'Y | |
| 1501. | +++++++ | [1] | AUGER | |
| 1502. | Y409056 | [14] | SCREW LINER | |
| 1503. | +++++++ | [28] | BOLT;FLUSH (M12X35) | |
| 1504. | J950012 | [28] | NUT | |
| 1505. | A590112 | [28] | WASHER;PLANE | |
| 1506. | A590912 | [28] | WASHER;SPRING | |
| 18. | Y907629 | [2] | DEPTH CONTROL DEVICE | |
| 22. | +++++++ | [1] | SHAFT | |
| 25. | +++++++ | [1] | SHAFT | |
| 26. | +++++++ | [1] | SHAFT | |
| 27. | +++++++ | [1] | SHAFT | |
| 28. | +++++++ | [2] | SEAL HOUSING | |
| 30. | Y414512 | [1] | SCRAPER | |
| 31. | Y414511 | [1] | SCRAPER | |
| 3801. | +++++++ | [1] | KEY | |
| 3802. | +++++++ | [1] | KEY | |
| 43. | +++++++ | [1] | PIN | |
| 47. | +++++++ | [4] | SEAL | |
| 48. | +++++++ | [2] | SEAL | |
| 58. | +++++++ | [1] | BRG. | NTN SN511 +LH-22211BK;H311X |
| 62. | +++++++ | [1] | CHAIN WHEEL (#80X13T) | |
| 63. | +++++++ | [1] | CHAIN WHEEL (#80X26T) | |
| 81. | +++++++ | [6] | BOLT;FLUSH | (M16X50, 8.8) |
| 82. | J901665 | [10] | BOLT | |
| 85. | J901240 | [4] | BOLT | |
| 89. | +++++++ | [2] | SCREW;SET | (M12X16, 8.8) |
| 91. | +++++++ | [4] | SCREW;SET (M8X16, 8.8) | |
| 104. | J950016 | [16] | NUT | |
| 106. | J950012 | [12] | NUT | |
| 123. | A590120 | [2] | WASHER;PLANE | |
| 125. | A590116 | [16] | WASHER;PLANE | |
| 127. | A590112 | [4] | WASHER;PLANE | |
| 141. | A590916 | [16] | WASHER;SPRING | |
| 143. | A590912 | [12] | WASHER;SPRING | |
| 162. | A765040 | [2] | PIN;SPLIT | |
| 209. | +++++++ | [8] | BOLT (M12X95, 10.9) | |
| 210. | A590112 | [8] | WASHER;PLANE | |
| 214. | J901465 | [4] | BOLT | |
| 215. | J950014 | [4] | NUT | |
| 216. | A590114 | [4] | WASHER;PLANE | |
| 217. | A590914 | [4] | WASHER;SPRING |
