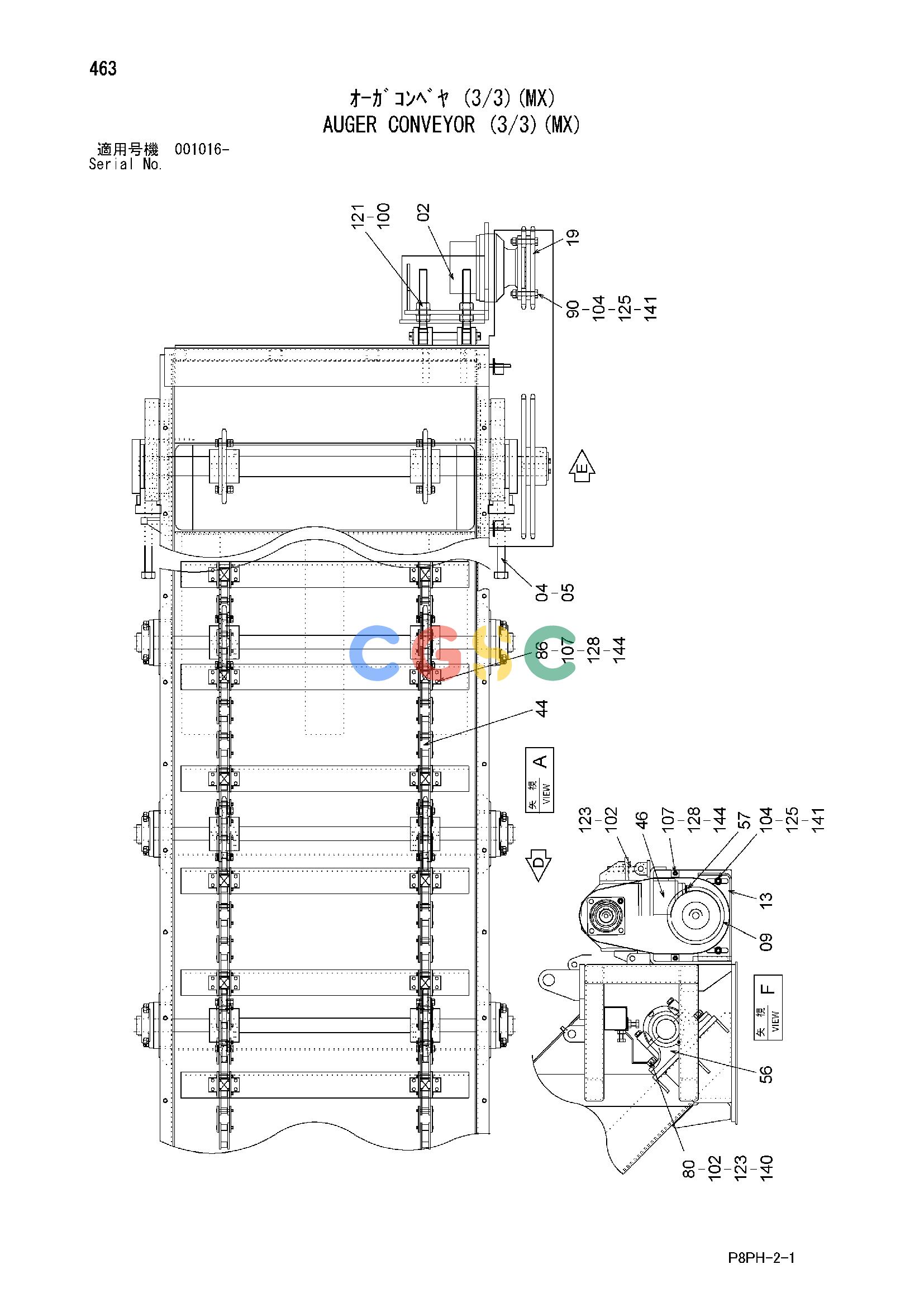

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 02. | +++++++ | [1] | MOTOR BASE | |
| 04. | J950030 | [2] | NUT | |
| 05. | +++++++ | [2] | TENSIONING BOLT | |
| 09. | +++++++ | [1] | SHIELD | |
| 13. | +++++++ | [1] | SLIDE RIGHT | |
| 19. | +++++++ | [1] | SPROCKET | |
| 44. | +++++++ | [2] | CHAIN | TSUBAKIMOTO RF204S-6LK2-AT, 106LINKS |
| 46. | +++++++ | [1] | CHAIN | TSUBAKIMOTO RS80, 48LINKS |
| 46A. | +++++++ | [1] | CHAIN (OFFSET) | TSUBAKIMOTO RS80 (OL) |
| 56. | +++++++ | [1] | BRG. | NTN SN517 +LH-22217BK;H317X |
| 57. | +++++++ | [1] | BRG. | NTN SN511 +LH-22211BK;H311X |
| 80. | +++++++ | [2] | BOLT (M20X70, 10.9) | |
| 86. | J901035 | [144] | BOLT | |
| 90. | +++++++ | [6] | BOLT (M16X95, 8.8) | |
| 100. | J950030 | [4] | NUT | |
| 102. | J950020 | [6] | NUT | |
| 104. | J950016 | [10] | NUT | |
| 107. | J950010 | [146] | NUT | |
| 121. | A590130 | [4] | WASHER;PLANE | |
| 123. | A590120 | [6] | WASHER;PLANE | |
| 125. | A590116 | [10] | WASHER;PLANE | |
| 128. | A590110 | [146] | WASHER;PLANE | |
| 140. | A590920 | [2] | WASHER;SPRING | |
| 141. | A590916 | [10] | WASHER;SPRING | |
| 144. | A590910 | [146] | WASHER;SPRING |
