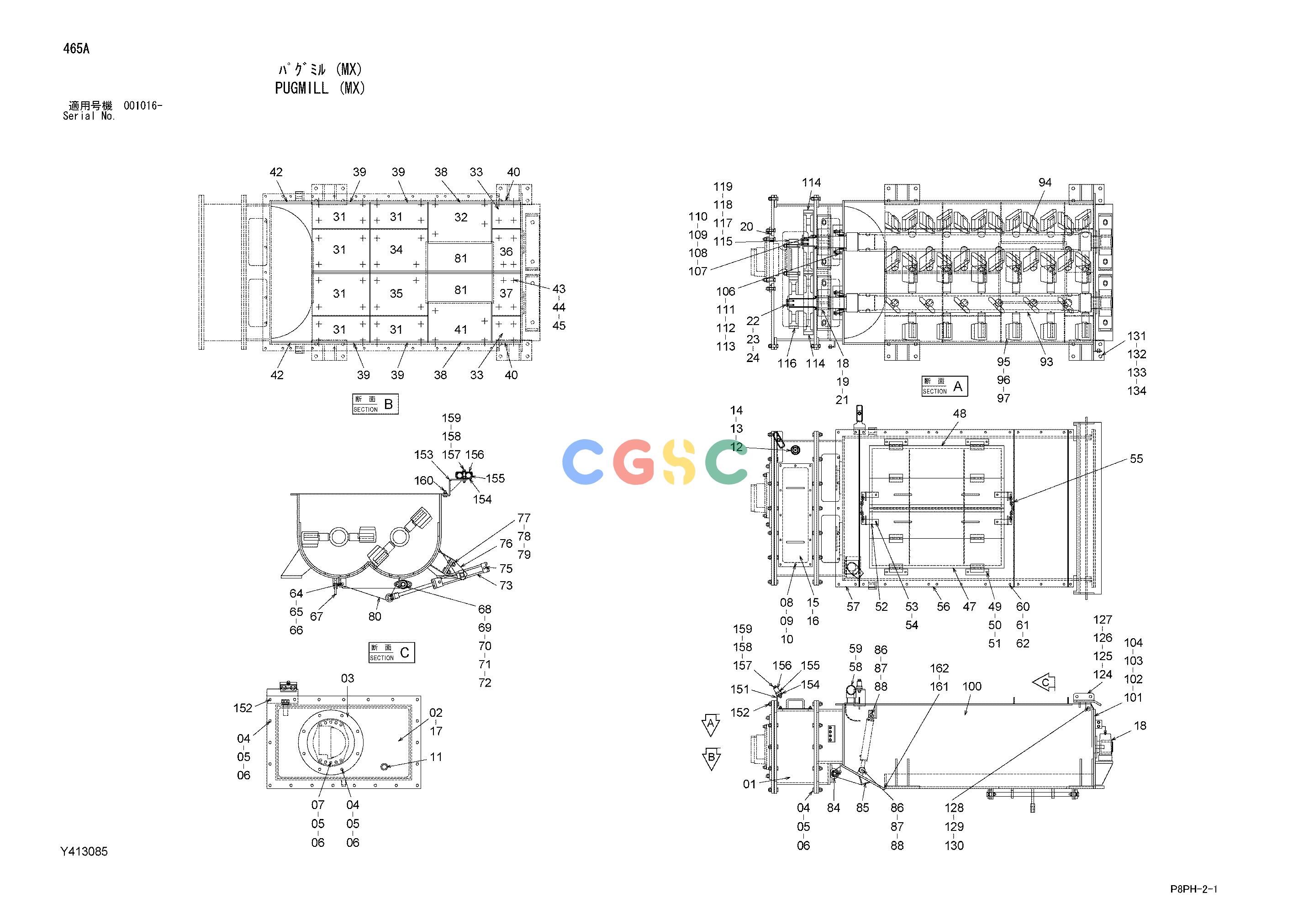

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | +++++++ | [1] | CASE | |
| 02. | +++++++ | [1] | FLANGE | |
| 03. | +++++++ | [1] | PLATE | |
| 04. | J901660 | [47] | BOLT | |
| 05. | A590916 | [59] | WASHER;SPRING | |
| 06. | J950016 | [59] | NUT | |
| 07. | J951680 | [10] | BOLT | |
| 08. | J901035 | [12] | BOLT | |
| 09. | A590910 | [12] | WASHER;SPRING | |
| 10. | J950010 | [12] | NUT | |
| 11. | +++++++ | [1] | LEVEL GAUGE | |
| 12. | +++++++ | [1] | BREATHER | |
| 13. | +++++++ | [4] | BOLT (M14X15) | |
| 14. | A590904 | [4] | WASHER;SPRING | |
| 15. | +++++++ | [1] | COVER | |
| 16. | +++++++ | [1] | SEAT;PACKING | |
| 17. | +++++++ | [1] | SEAT;PACKING | |
| 18. | +++++++ | [4] | BRG.;UNIT | NTN UCP315 |
| 19. | +++++++ | [2] | SEAL;OIL | NOK AE3618A0 |
| 20. | +++++++ | [1] | O-RING | NOK P375 |
| 21. | +++++++ | [2] | COLLAR | |
| 22. | +++++++ | [2] | PLATE | |
| 23. | J901240 | [4] | BOLT | |
| 24. | A590912 | [4] | WASHER;SPRING | |
| 31. | Y411643 | [6] | LINER | |
| 32. | Y411644 | [1] | LINER | |
| 33. | Y411645 | [2] | LINER | |
| 34. | Y411646 | [1] | LINER | |
| 35. | Y411647 | [1] | LINER | |
| 36. | Y411648 | [1] | LINER | |
| 37. | Y411649 | [1] | LINER | |
| 38. | Y411650 | [2] | LINER | |
| 39. | Y411651 | [4] | LINER | |
| 40. | Y411652 | [2] | LINER | |
| 41. | Y411653 | [1] | LINER | |
| 42. | +++++++ | [2] | LINER | |
| 43. | Y411654 | [86] | BOLT;FLUSH (M12X40) | |
| 44. | A590912 | [86] | WASHER;SPRING | |
| 45. | J950012 | [86] | NUT | |
| 47. | +++++++ | [1] | COVER | |
| 48. | +++++++ | [1] | COVER | |
| 49. | J901240 | [8] | BOLT | |
| 50. | A590912 | [8] | WASHER;SPRING | |
| 51. | J950012 | [8] | NUT | |
| 52. | +++++++ | [4] | BRACKET | |
| 53. | J901030 | [4] | BOLT | |
| 54. | J950010 | [4] | NUT | |
| 55. | +++++++ | [2] | CHAIN | |
| 56. | +++++++ | [1] | COVER | |
| 57. | +++++++ | [1] | COVER | |
| 58. | J702220 | [1] | ELBOW | |
| 59. | J70720 | [1] | ADAPTER | |
| 60. | J901230 | [31] | BOLT | |
| 61. | A590912 | [33] | WASHER;SPRING | |
| 62. | J950012 | [33] | NUT | |
| 64. | +++++++ | [2] | PIN | |
| 65. | A590116 | [2] | WASHER;PLANE | |
| 66. | 4022701 | [2] | PIN;LOCK | |
| 67. | 4083751 | [1] | BOLT;EYE | |
| 68. | +++++++ | [2] | BRG.;UNIT | ASAHI SEIKO MUCFL205 |
| 69. | J901250 | [4] | BOLT | |
| 70. | A590912 | [4] | WASHER;SPRING | |
| 71. | A590112 | [4] | WASHER;PLANE | |
| 72. | J950012 | [4] | NUT | |
| 73. | Y415597 | [1] | CYL. | |
| 73A. | Y413128 | [1] | KIT;SEAL | |
| 75. | 4182732 | [2] | ADAPTER | |
| 76. | +++++++ | [1] | BRACKET | |
| 77. | J921650 | [2] | BOLT | |
| 78. | A590916 | [2] | WASHER;SPRING | |
| 79. | J950016 | [2] | NUT | |
| 80. | +++++++ | [1] | GATE | |
| 81. | Y415598 | [2] | LINER | |
| 84. | +++++++ | [2] | BRG.;UNIT | NTN UCP204 |
| 85. | +++++++ | [1] | GATE | |
| 86. | +++++++ | [4] | PIN | |
| 87. | A590112 | [8] | WASHER;PLANE | |
| 88. | A763025 | [8] | PIN;SPLIT | |
| 93. | +++++++ | [1] | SHAFT | |
| 94. | +++++++ | [1] | SHAFT | |
| 95. | Y411655 | [48] | PADDLE | |
| 96. | Y411656 | [96] | BOLT (M20X65, 10.9) | |
| 97. | J950020 | [96] | NUT | |
| 100. | +++++++ | [1] | HOUSING | |
| 101. | +++++++ | [1] | PLATE | |
| 102. | J951650 | [10] | BOLT | |
| 103. | A590916 | [10] | WASHER;SPRING | |
| 104. | J950016 | [10] | NUT | |
| 106. | +++++++ | [2] | CASE | |
| 107. | +++++++ | [2] | FLANGE | |
| 108. | +++++++ | [6] | GRAND PACKING | FB INDUSTRIES #1800, □12.7X400L |
| 109. | J901040 | [8] | BOLT | |
| 110. | J950010 | [8] | NUT | |
| 111. | J901250 | [8] | BOLT | |
| 112. | A590912 | [8] | WASHER;SPRING | |
| 113. | J950012 | [8] | NUT | |
| 114. | +++++++ | [2] | GEAR | |
| 115. | +++++++ | [1] | GEAR | |
| 116. | +++++++ | [1] | GEAR | |
| 117. | +++++++ | [6] | BOLT (M18X110) | |
| 118. | J257218 | [6] | WASHER;SPRING | |
| 119. | J950018 | [6] | NUT | |
| 124. | +++++++ | [1] | SUPPORT | |
| 125. | Y410419 | [2] | PLATE | |
| 126. | J901630 | [4] | BOLT | |
| 127. | A590916 | [4] | WASHER;SPRING | |
| 128. | +++++++ | [2] | PIN | |
| 129. | A590120 | [4] | WASHER;PLANE | |
| 130. | A765028 | [4] | PIN;SPLIT | |
| 131. | J922070 | [16] | BOLT | |
| 132. | A590120 | [32] | WASHER;PLANE | |
| 133. | A590920 | [16] | WASHER;SPRING | |
| 134. | J950020 | [16] | NUT | |
| 151. | Y971672 | [1] | BRACKET | |
| 152. | J901665 | [2] | BOLT | |
| 153. | Y971675 | [1] | BRACKET | |
| 154. | Y411332 | [2] | PLATE | |
| 155. | 3075326 | [2] | RUBBER | |
| 156. | 8065749 | [2] | CLAMP | |
| 157. | J901290 | [2] | BOLT | |
| 158. | A590912 | [2] | WASHER;SPRING | |
| 159. | A590112 | [2] | WASHER;PLANE | |
| 160. | J901240 | [2] | BOLT | |
| 161. | Y413207 | [1] | ANGLE | |
| 162. | J901216 | [1] | BOLT |
