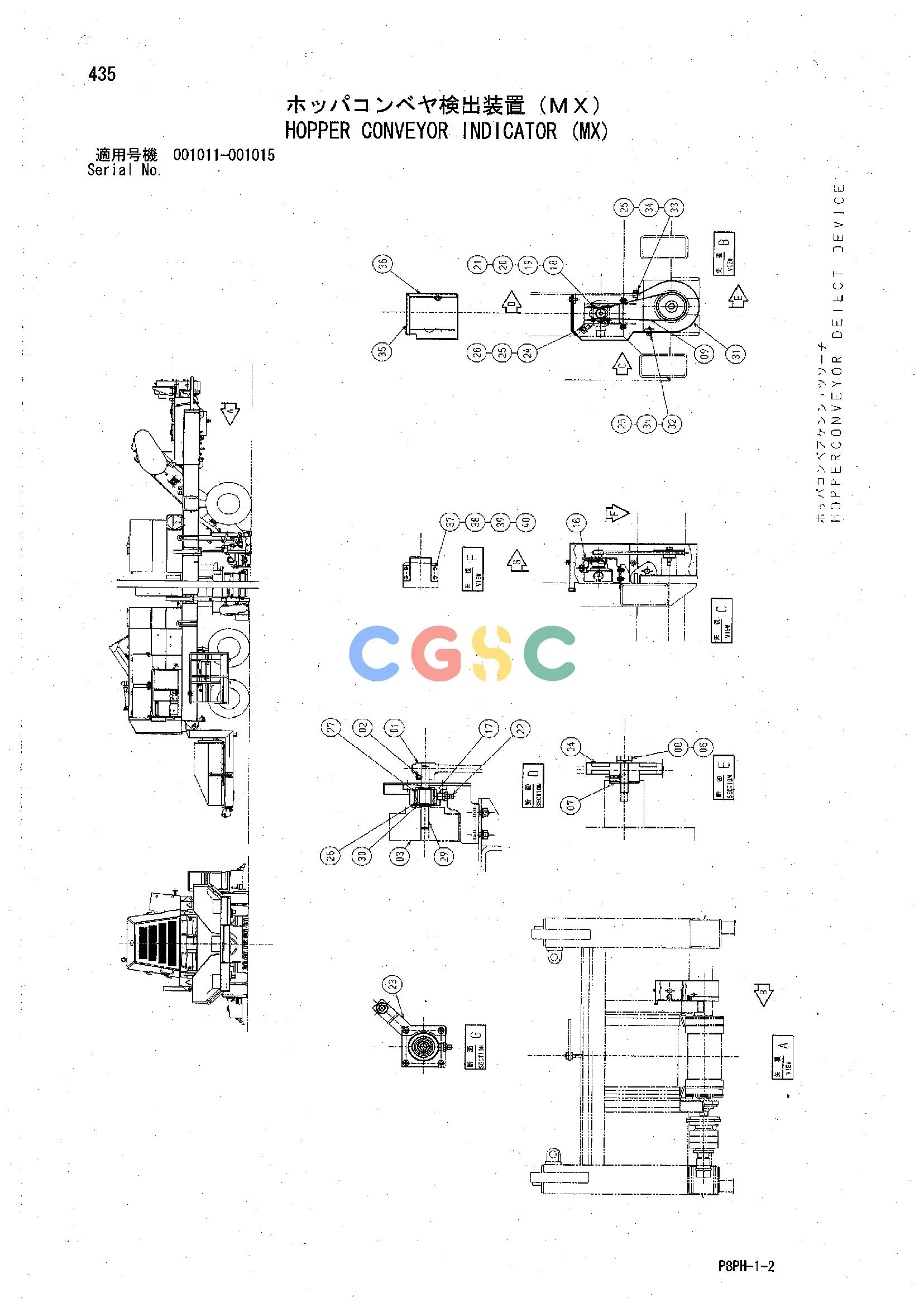

日立零件查询（AR2000）HOPPER CONVEYOR INDICATOR (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y410205 | [1] | DRIVE WHEEL | |
| 02. | M450406 | [1] | SCREW;SET | |
| 03. | Y411792 | [1] | ENCODER | |
| 04. | Y410336 | [1] | DRIVE WHEEL | |
| 05. | M321145 | [1] | BOLT;REAMER | |
| 06. | A590910 | [1] | WASHER;SPRING | |
| 07. | Y410340 | [1] | SPACER | |
| 08. | J901045 | [1] | BOLT | |
| 09. | Y410339 | [1] | DRIVING BELT | |
| 16. | Y410207 | [1] | BRACKET | |
| 17. | Y410500 | [1] | HOUSING | |
| 18. | M430420 | [4] | SCREW | |
| 19. | A590104 | [4] | WASHER;PLANE | |
| 20. | A590904 | [4] | WASHER;SPRING | |
| 21. | M500403 | [4] | NUT | |
| 22. | J75481 | [1] | FITTING;GREASE | |
| 23. | Y410499 | [1] | BRACKET | |
| 24. | J900816 | [1] | BOLT | |
| 25. | A590908 | [4] | WASHER;SPRING | |
| 26. | M500807 | [1] | NUT | |
| 27. | Y410512 | [1] | BRG. | |
| 28. | Z443964 | [1] | RING;RETAINING | |
| 29. | Y410501 | [1] | SHAFT | |
| 30. | Y410513 | [1] | RING;RETAINING | |
| 31. | Y801905 | [1] | COVER | |
| 32. | J900820 | [2] | BOLT | |
| 33. | J900825 | [1] | BOLT | |
| 34. | A590108 | [3] | WASHER;PLANE | |
| 35. | Y410608 | [1] | RUBBER | |
| 36. | Y409776 | [1] | RUBBER | |
| 37. | J900616 | [4] | BOLT | |
| 38. | A590106 | [4] | WASHER;PLANE | |
| 39. | A590906 | [4] | WASHER;SPRING | |
| 40. | M500605 | [4] | NUT | |
