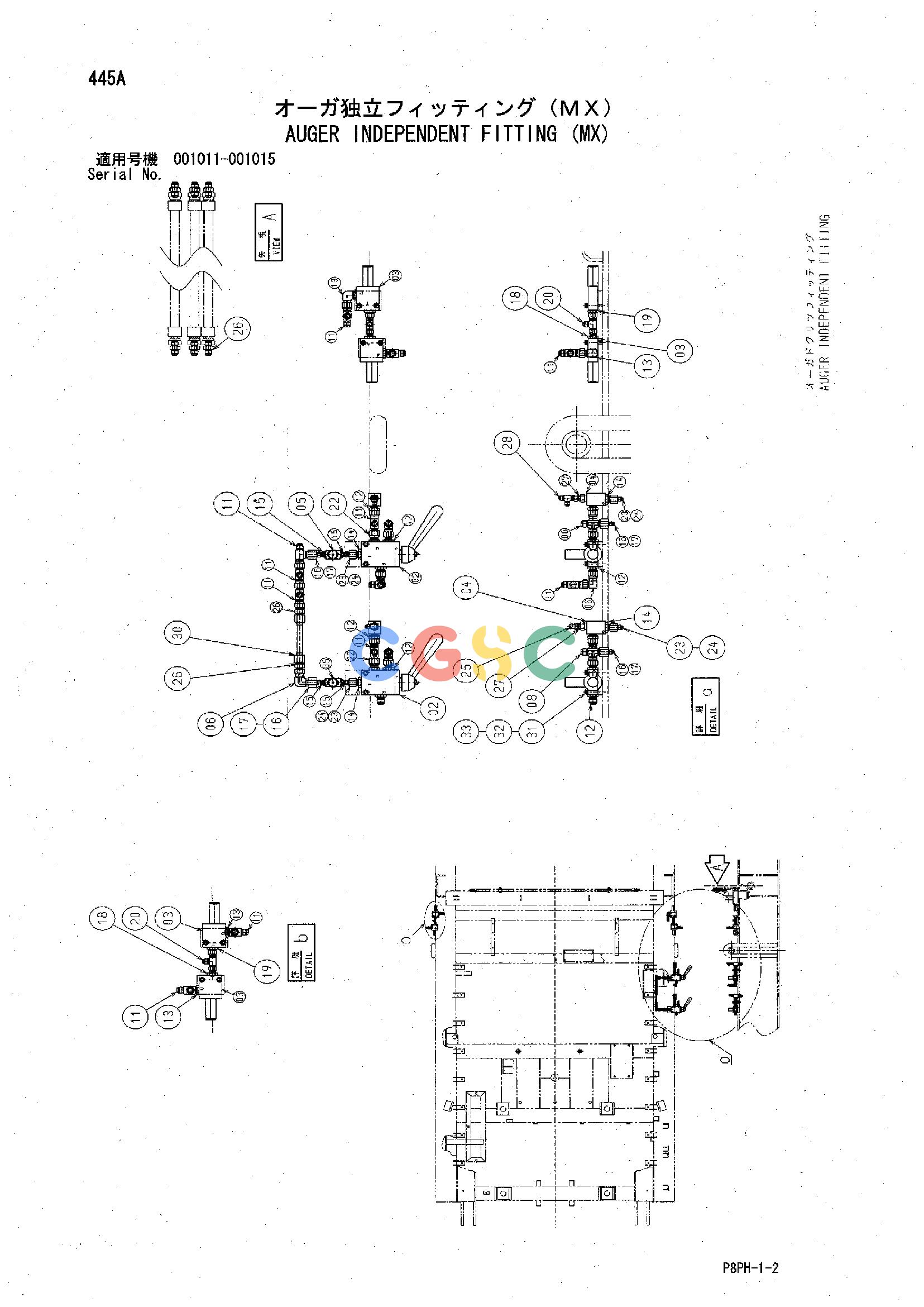

日立零件查询（AR2000）AUGER INDEPENDENT FITTING (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
512 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y413717 | [2] | VALVE | |
| 03. | Y413719 | [4] | VALVE | |
| 04. | Y413718 | [2] | VALVE;SHAFT | |
| 05. | Y411187 | [2] | VALVE;NEEDLE | |
| 06. | 88-2067 | [2] | ELBOW | PARKER 8C6XSS |
| 08. | 88-2170 | [2] | TEE | PARKER 8S6XSS |
| 11. | 88-2009 | [10] | TEE | PARKER 8R6XSS |
| 12. | 88-2011 | [6] | CONNECTOR | PARKER 8F50XSS |
| 13. | 88-XXXX | [4] | ELBOW | PARKER 8-6C50XSS |
| 14. | 88-2149 | [4] | CONNECTOR | PARKER 6-8F50XSS |
| 15. | 88-2063 | [4] | CONNECTOR | PARKER 4F650MXSS |
| 16. | 88-2062 | [4] | REDUCER | PARKER 8-4TRTXSS |
| 17. | 88-2001 | [4] | NUT | PARKER 8BTMXSS |
| 18. | 88-2113 | [2] | CONNECTOR | PARKER 6F650MXSS |
| 19. | 88-XXXX | [2] | CONNECTOR | PARKER 6F50XSS |
| 20. | 88-2144 | [2] | TEE | PARKER 6R6XSS |
| 22. | 88-2098 | [2] | CONNECTOR | PARKER 8F650XSS |
| 23. | 88-2163 | [4] | REDUCER | PARKER 6-4TRTXSS |
| 24. | 88-2059 | [4] | NUT | PARKER 6BMTXSS |
| 25. | 88-2111 | [1] | ELBOW | PARKER 4C6XSS |
| 26. | 88-2005 | [8] | UNION | PARKER 8HTXSS |
| 27. | 88-2064 | [2] | CONNECTOR | PARKER 4F50XSS |
| 28. | 88-2083 | [1] | TEE | PARKER 4R6SXSS |
| 30. | Y971427 | [1] | PIPE | |
| 31. | J900645 | [12] | BOLT | |
| 32. | A590106 | [12] | WASHER;PLANE | |
| 33. | A590906 | [12] | WASHER;SPRING | |
