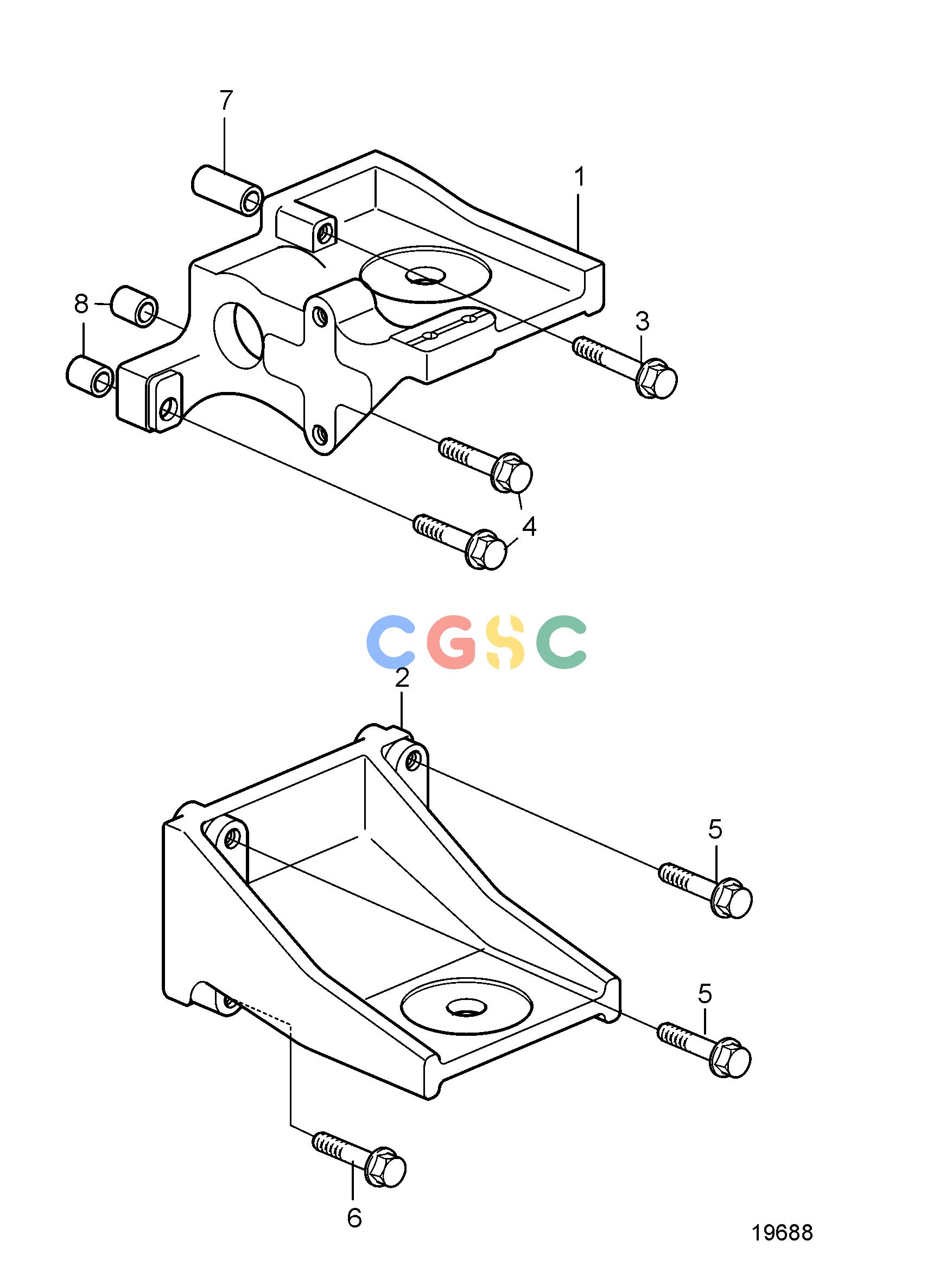

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-EngineEngine MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
351 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
888436
|
[1] |
Engine bracket, left
|
|
| 2. |
3883173
|
[1] |
Engine bracket, right
|
|
| 3. |
984652
|
[1] |
Flange screw
|
|
| 4. |
984651
|
[2] |
Flange screw
|
|
| 5. |
984757
|
[4] |
Flange screw
|
|
| 6. |
984662
|
[1] |
Flange screw
|
|
| 7. |
984644
|
[1] |
Spacer sleeve
|
|
| 8. |
829653
|
[2] |
Spacer sleeve
|
|
