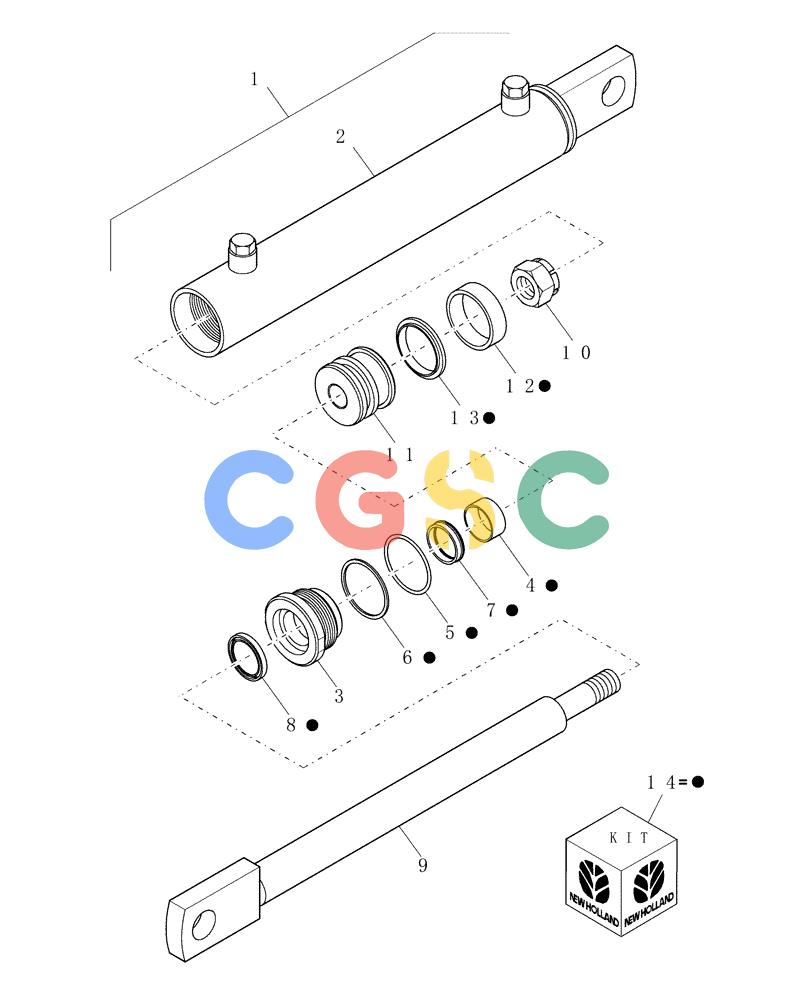

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (043[1]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 86637318 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
588 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86637318
|
[1] |
HYDRAULIC CYLINDER
|
NH
Tailgate Lift Superseded by part number: 87019624
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Cylinder Barrel, {86609947}
|
| 3. |
86580770
|
[1] |
CYLINDER END CAP
|
NH
|
| 4. |
9843627
|
[1] |
WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk
|
NH
Wear, 1.250" ID x .50" Thick
|
| 5. |
272380
|
[1] |
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
|
NH
|
| 6. |
86565440
|
[1] |
SEALING WASHER
|
NH
Backup
|
| 7. |
86513307
|
[1] |
SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk
|
NH
1.250" ID x 1.500" OD
|
| 8. |
529340
|
[1] |
SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk
|
NH
Rod Wiper
|
| 9. |
86609949
|
[1] |
ROD
|
NH
Superseded by part number: 87025447
|
| 10. |
280724
|
[1] |
LOCK NUT,3/4" - 16
|
NH
|
| 11. |
80592950
|
[1] |
PISTON
|
NH
|
| 12. |
771705
|
[1] |
RING
|
NH
Wear, 2.004" ID x .50" Thick
|
| 13. |
86553483
|
[1] |
SEAL
|
NH
3 Piece, Piston
|
| 14. |
86586336
|
[1] |
SEAL KIT
|
NH
|
