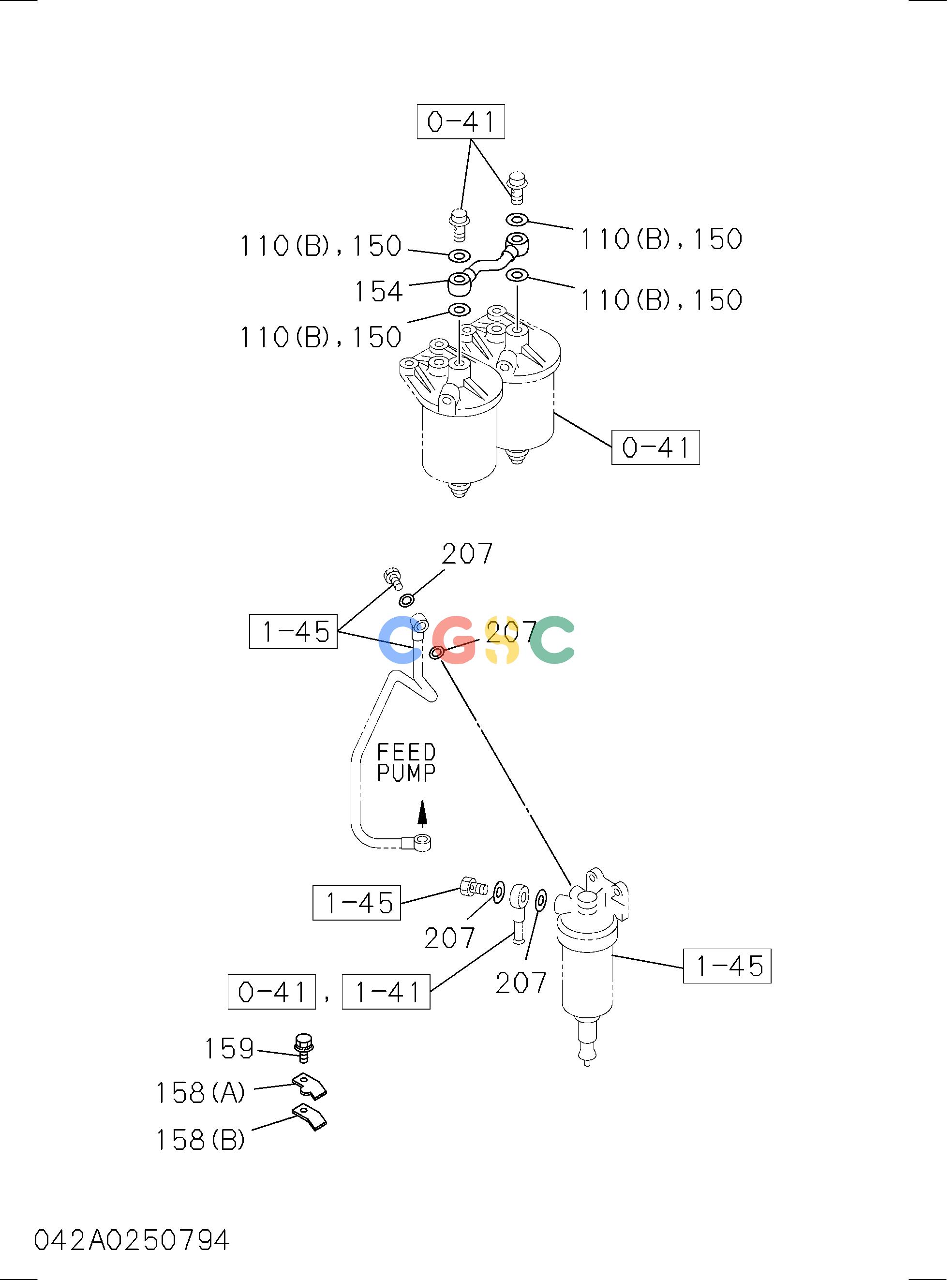

日立零件查询（BX70D）FUEL PUMP AND PIPE Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
759 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 107. | 5154114570 | [1] | PIPE; FUEL,FEED PUMP TO FUEL FILTER | |
| 110(A). | 9095714080 | [2] | GASKET; JOINT BOLT,FUEL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 119. | 9154127311 | [1] | PIPE; FUEL,FUEL FILTER TO INJ PUMP | |
| 150. | 9095720140 | [6] | GASKET; FUEL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 158(A). | 5154190040 | [1] | CLIP; INJ PIPE TO INL MANIF | |
| 158(B). | 5154190051 | [1] | CLIP; INJ PIPE TO INL MANIF | |
| 159. | 0501406160 | [1] | BOLT; CLIP | |
