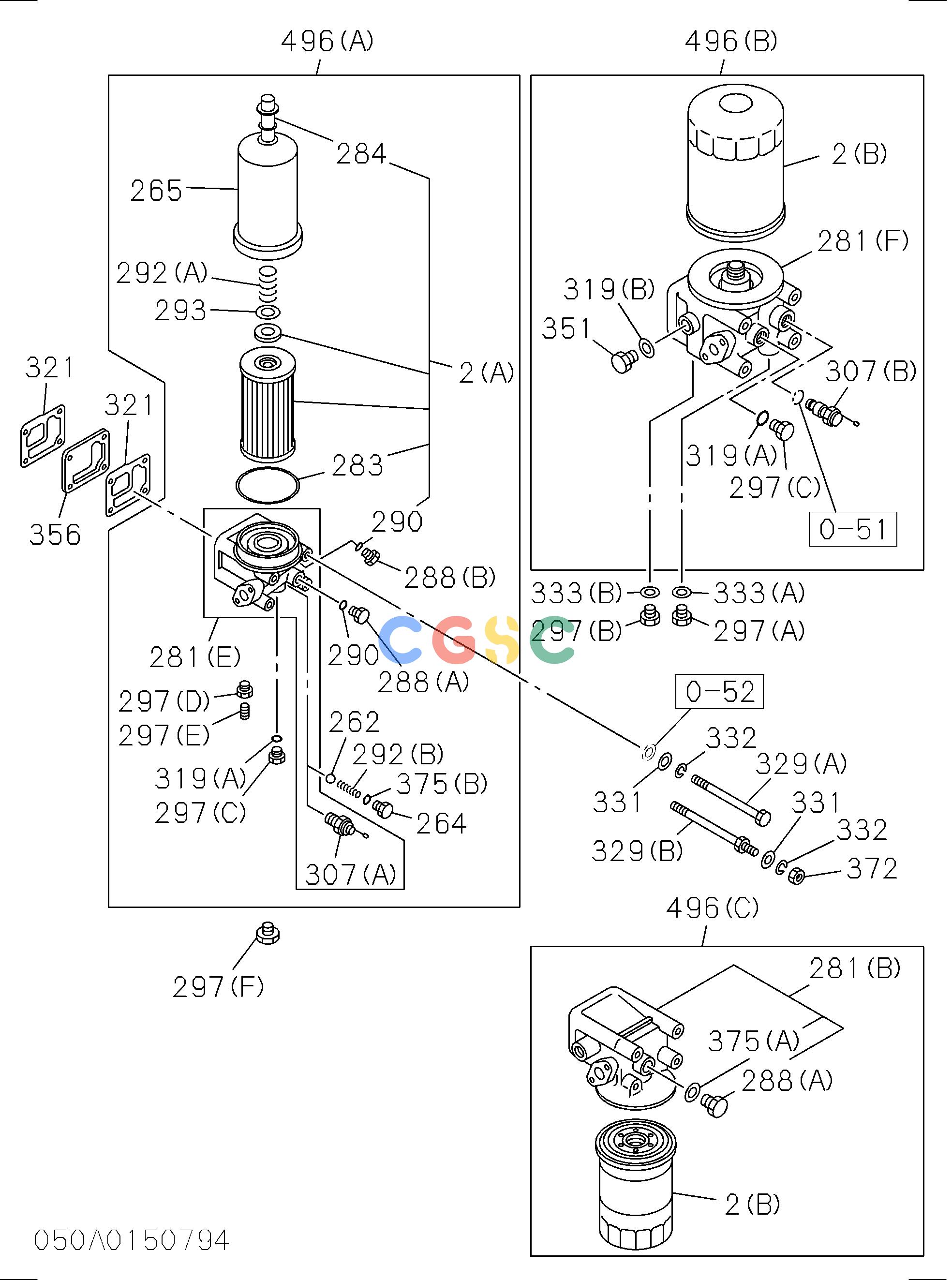

日立零件查询（BX70D）OIL COOLER AND OIL FILTER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
941 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2(B). | 8941609641 | [1] | ELEMENT; OIL FILTER | |
| 2(B). | 8943212191 | [1] | ELEMENT; OIL FILTER | |
| 18. | 5112880020 | [1] | VALVE ASM; OIL COOLER | |
| 89. | 1090540150 | [4] | BOLT; ELEMENT TO CASE | |
| 90. | 1217290430 | [4] | GASKET; BOLT,OIL COOLER | |
| 102. | 8944694120 | [1] | COOLER ASM; OIL | |
| 109. | 0500408200 | [2] | BOLT; OIL COOLER TO BODY | M8X20 W/LK WASHER |
| 109. | 0500408250 | [11] | BOLT; OIL COOLER TO BODY | M8X25 W/LK WASHER |
| 109. | 0500408450 | [8] | BOLT; OIL COOLER TO BODY | M8X45 W/LK WASHER |
| 109. | 8942059861 | [1] | BOLT; OIL COOLER TO BODY | M8X65 |
| 110. | 8944496450 | [1] | BODY; CASE,OIL COOLER | |
| 111. | 5112890030 | [1] | CORE; OIL COOLER | |
| 112. | 8971281500 | [1] | PLUG; OIL COOLER CASE | |
| 113(A). | 9095716200 | [1] | GASKET; PLUG,OIL COOLER CASE | |
| 113(B). | 8944706680 | [1] | GASKET; PLUG,OIL COOLER CASE | |
| 281(F). | 8944457422 | [1] | COVER; OIL FILTER | |
| 297(C). | 9132630100 | [1] | PLUG; COVER | |
| 307(B). | 8944634270 | [1] | VALVE; OVERFLOW | |
| 319(A). | 9099211930 | [1] | GASKET; PLUG,CUT OFF | |
| 321. | 1132191940 | [1] | GASKET; OIL FILTER TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 321. | 8943706700 | [1] | GASKET; OIL FILTER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 329(A). | 5090000071 | [2] | BOLT; OIL FILTER | |
| 329(B). | 8944295250 | [2] | BOLT; OIL FILTER | |
| 331. | 9091605100 | [4] | WASHER; PL,FILTER FIX | |
| 331. | 9091605100 | [2] | WASHER; PL,FILTER FIX | |
| 332. | 9091505100 | [4] | WASHER; LK,FILLER | |
| 332. | 9091505100 | [2] | WASHER; LK,FILLER | |
| 372. | 9091104100 | [2] | NUT; BRKT TO BRKT | M10 |
| 444. | 5112820110 | [2] | GASKET; ELEMENT TO BODY | |
| 469. | 8943210130 | [1] | GASKET; OIL COOLER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 496(B). | 8944457402 | [1] | ELEMENT; OIL FILTER | C |
| 496(B). | 8943224880 | [1] | ELEMENT; OIL FILTER | |
