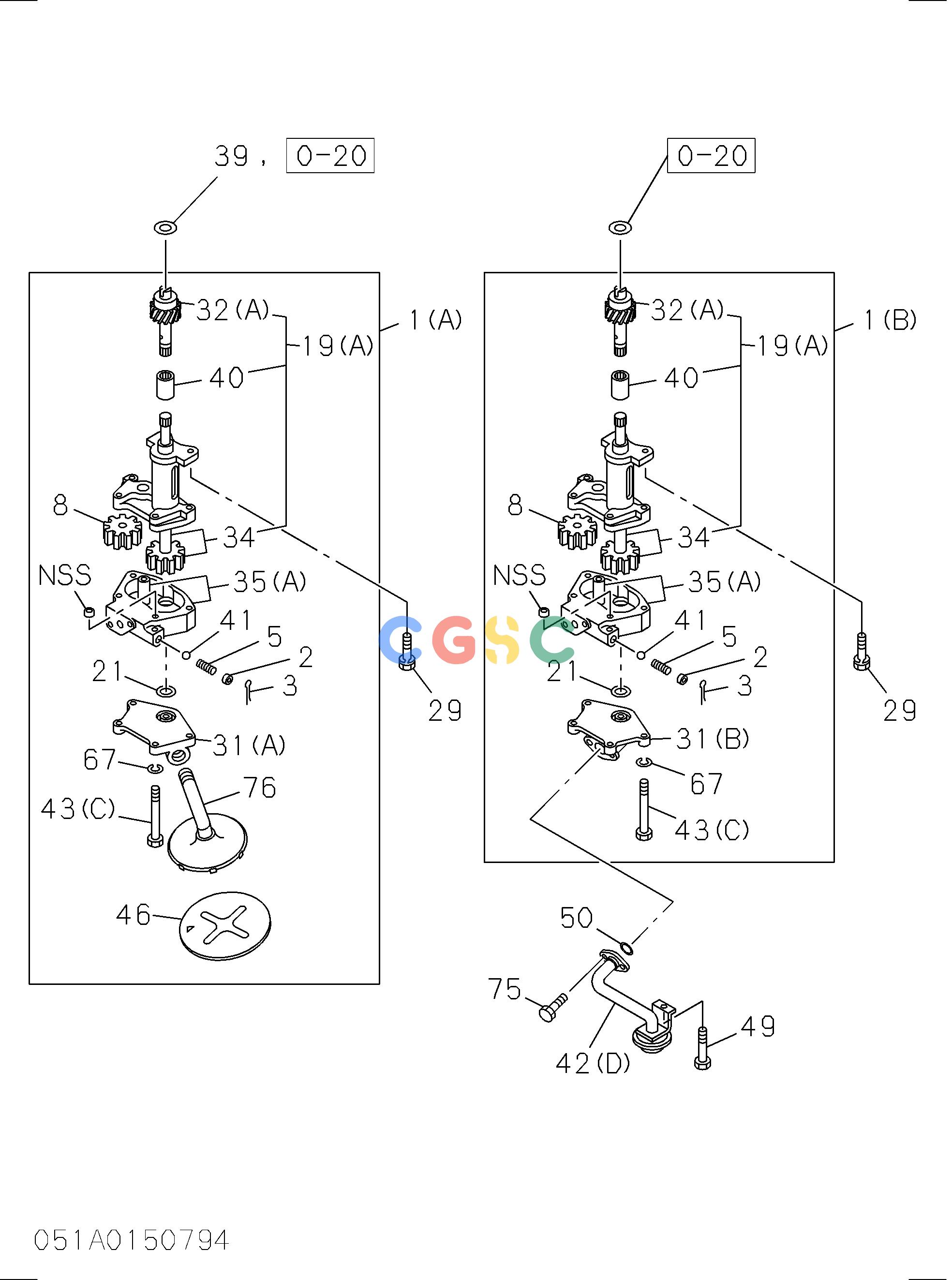

日立零件查询（BX70D）OIL PUMP AND OIL STRAINER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
422 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 8941671171 | [1] | PUMP ASM; OIL | C |
| 2. | 5131650040 | [1] | SEAT; SPR | |
| 3. | 9081040300 | [1] | PIN; SPLIT | |
| 5. | 5095800980 | [1] | SPRING; COIL | |
| 8. | 5131250020 | [1] | GEAR; DRIVEN,OIL PUMP | |
| 19(A). | 5878102022 | [1] | GEAR SET;OIL PUMP | |
| 21. | 9095612230 | [1] | GASKET; OIL PUMP | |
| 29. | 0500410250 | [2] | BOLT; OIL PUMP | |
| 31(A). | 5131130380 | [1] | COVER; OIL PUMP | |
| 32(A). | 1131280180 | [1] | PINION; OIL PUMP DRIVING | |
| 34. | 5131210140 | [1] | SHAFT; OIL PUMP | |
| 35(A). | 5131130351 | [1] | COVER; OIL PUMP | C |
| 40. | 1131230160 | [1] | COUPLING; PINION TO SHAFT | |
| 41. | 5098430030 | [1] | BALL; OIL RELIEF VLV | |
| 43(C). | 5090002140 | [4] | BOLT; CASE | |
| 46. | 9131430100 | [1] | GAUZE; OIL STRAINER | |
| 56. | 1096231630 | [1] | GASKET; RELIEF VALVE | |
| 76. | 8941671180 | [1] | PIPE ASM; OIL | |
