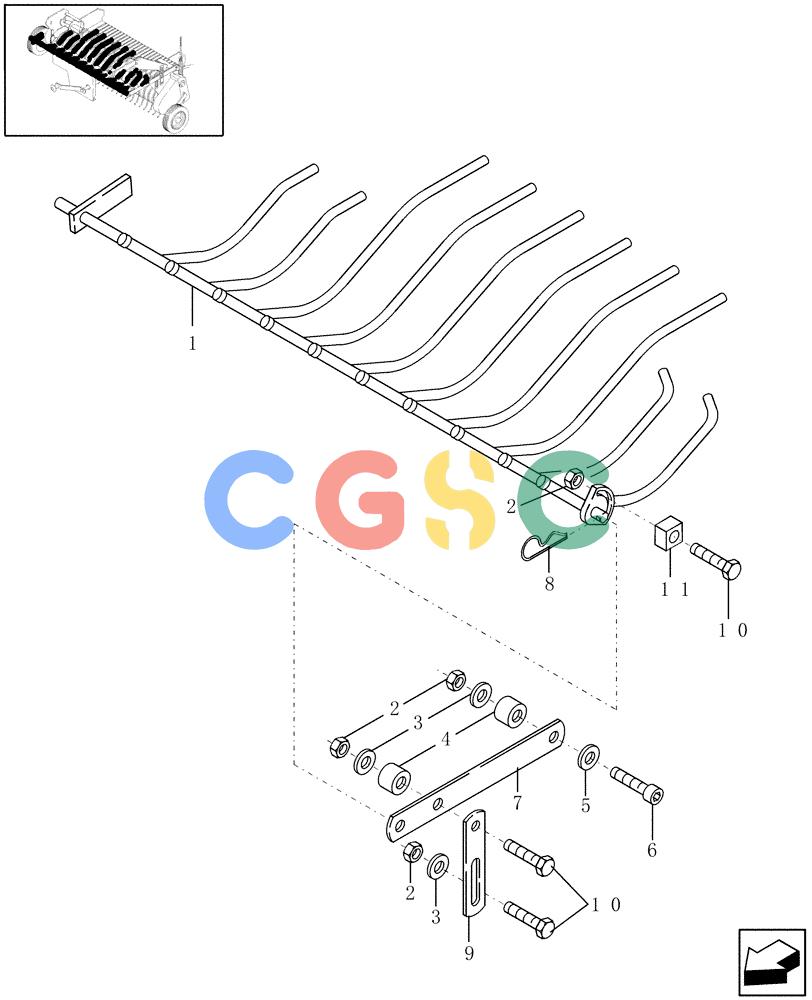

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (074) - WIDE PICKUP, WINDGUARD Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86634560
|
[1] |
ROD ASSY.
|
NH
Windguard
|
| 2. |
832-46410
|
[10] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 3. |
213404
|
[6] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| 4. |
133095
|
[1] |
SPACER,10.32mm ID x 15.85mm OD x 7.9mm L
|
NH
|
| 5. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 6. |
614-10035
|
[2] |
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 9706704
|
| 7. |
86634563
|
[2] |
STRAP
|
NH
|
| 8. |
86000109
|
[2] |
COTTER PIN
|
NH
1/8" x 3-1/4"
|
| 9. |
86634562
|
[2] |
CONNECTING LINK
|
NH
|
| 10. |
811-10030
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 11. |
44612
|
[4] |
SPACER
|
NH
|
