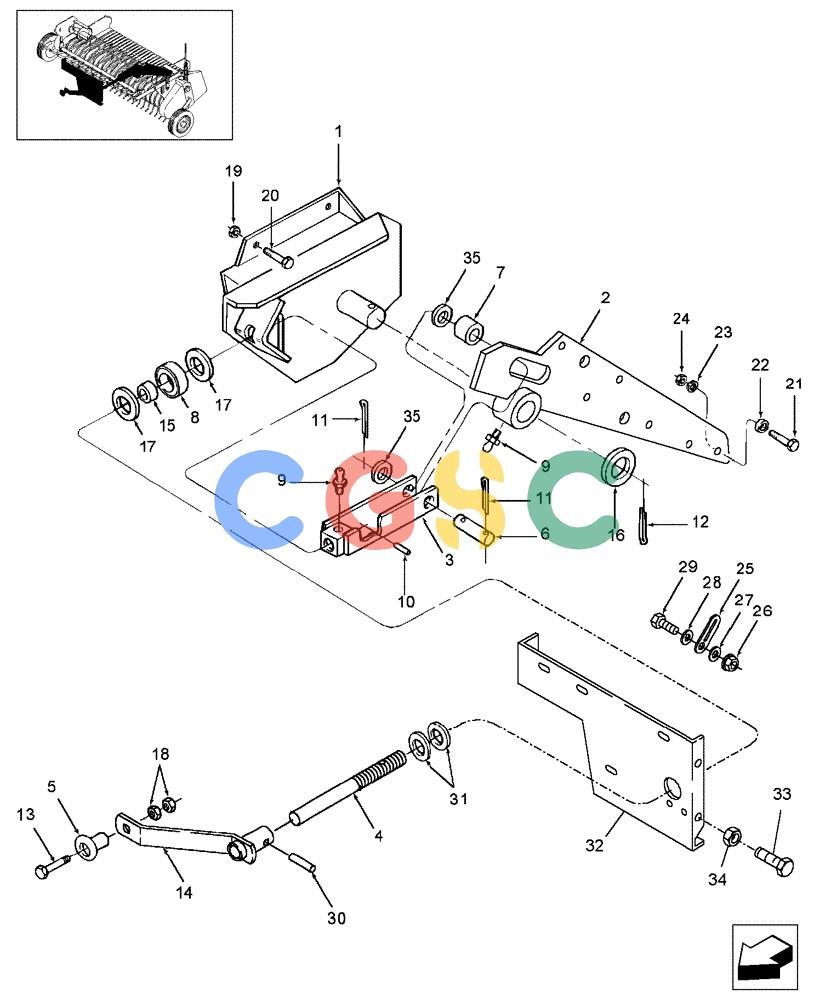

| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Support, Welded to Main Frame
|
| 2. |
86637259
|
[1] |
ARM
|
NH
|
| 3. |
86637268
|
[1] |
LINK
|
NH
|
| 4. |
86543355
|
[1] |
THREADED ROD
|
NH
|
| 5. |
33781
|
[1] |
KNOB
|
NH
|
| 6. |
86634564
|
[1] |
PIN
|
NH
|
| 7. |
86636631
|
[1] |
HUB
|
NH
|
| 8. |
90999
|
[1] |
SPACER,25.65mm ID x 50.8mm OD x 15.88mm L
|
NH
|
| 9. |
219-90
|
[2] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
Superseded by part number: 87569
|
| 10. |
280315
|
[1] |
GROOVED PIN,4.76mm OD x 25.4mm L
|
NH
|
| 11. |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 12. |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Superseded by part number: 87400
|
| 13. |
413-644
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
|
CAS
Superseded by part number: 88444
|
| 14. |
86636653
|
[1] |
CRANKED HANDLE
|
NH
|
| 15. |
86636652
|
[1] |
SPACER
|
NH
|
| 16. |
101406
|
[1] |
SPACER
|
NH
|
| 17. |
56867
|
[2] |
WASHER
|
NH
1-7/8" OD Superseded by part number: 578092
|
| 18. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 19. |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 20. |
614-10020
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 21. |
614-10030
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 22. |
748303
|
[1] |
SPACER
|
NH
|
| 23. |
58225
|
[1] |
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
|
NH
Special, 1-1/4" OD Superseded by part number: 87654824
|
| 24. |
832-46410
|
[1] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 25. |
9804832
|
[1] |
BAR
|
NH
|
| 27. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| 28. |
287129
|
[2] |
SPECIAL WASHER
|
NH
Spacer, 3/8" ID, .294" Thk, Hardened
|
| 30. |
435-5624
|
[1] |
GROOVED PIN,3/16" x 1 1/2", Type E
|
CAS
Superseded by part number: 280404
|
| 31. |
322359
|
[2] |
BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk
|
NH
|
| 32. |
86620940
|
[1] |
SHIELD
|
NH
LH
|
| 33. |
811-8020
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 34. |
825-5148
|
[6] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 35. |
249100
|
[1] |
WASHER,0.78" ID x 1.25" OD x 0.06" Thk
|
NH
|
