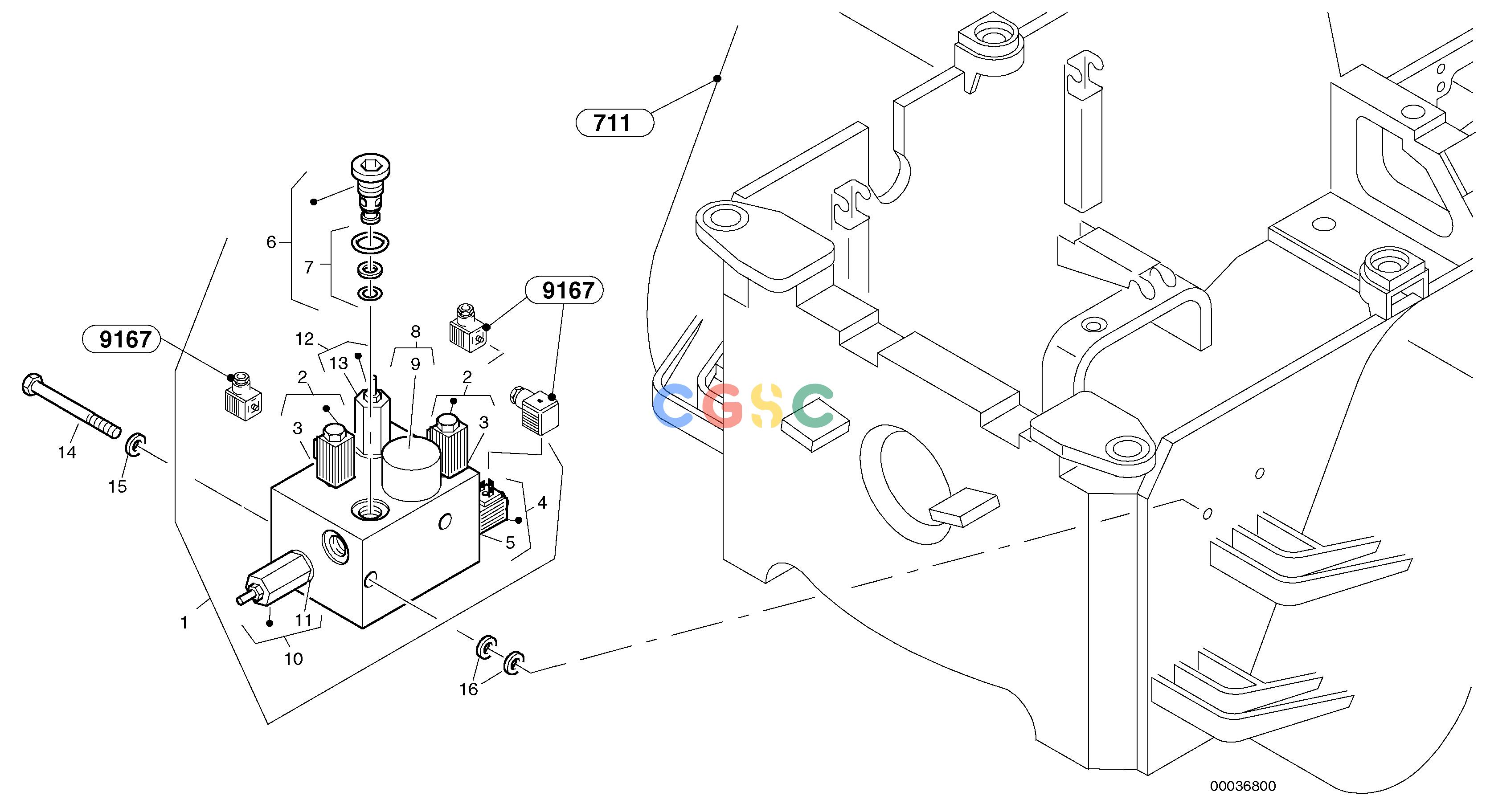

沃尔沃零件查询L40 Control valve - Boom suspension system (BSS)TYPE 191, 192 SER NO - 10001910107--1920001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812928
|
[1] |
Control bloc, cpl.
|
|
| 2. |
ZM2904943
|
[2] |
2/2 Way magnet valve
|
|
| 3. |
ZM2900009
|
[1] |
Gasket set
|
|
| 4. |
ZM2904944
|
[1] |
Magnet
|
|
| 5. |
ZM2288024
|
[1] |
Gasket set
|
|
| 6. |
ZM2900008
|
[1] |
Back-pressure valve
|
|
| 7. |
ZM2900010
|
[1] |
Gasket set
|
|
| 8. |
ZM2906885
|
[1] |
Back-pressure valve
|
|
| 9. |
ZM2906886
|
[1] |
Gasket Kit
|
|
| 10. |
ZM2906887
|
[1] |
3-way pressure limiting valve
|
|
| 11. |
ZM2906888
|
[1] |
Gasket kit
|
|
| 12. |
ZM2906889
|
[1] |
Relief valve jet
|
|
| 13. |
ZM2906890
|
[1] |
Gasket set
|
|
| 14. |
ZM7096072
|
[2] |
Screw
|
M10x130
|
| 15. |
VOE960148
|
[2] |
Plain washer
|
B10,5
|
| 16. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
