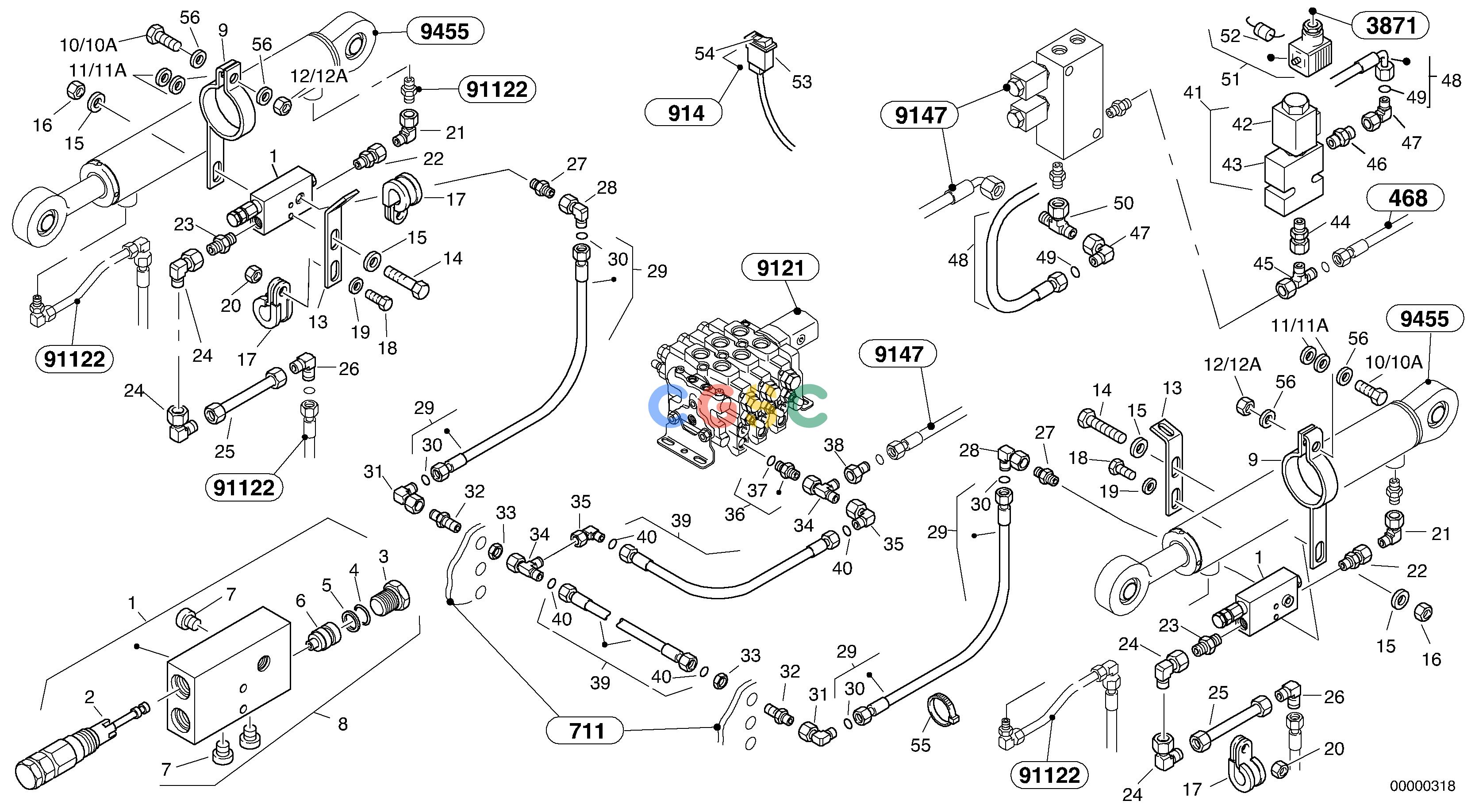

沃尔沃零件查询L40 Line fracture safety - LiftTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
389 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2808221
|
[2] |
Valve
|
|
| 2. |
ZM2906187
|
[1] |
Valve
|
|
| 3. |
ZM2905267
|
[1] |
Screw plug
|
|
| 4. |
ZM2905766
|
[1] |
O-ring
|
15,34x2,62
|
| 5. |
ZM2903316
|
[1] |
Ring
|
|
| 6. |
ZM2905768
|
[1] |
Control piston
|
|
| 7. |
ZM2905770
|
[3] |
Screw plug
|
|
| 8. |
ZM2906188
|
[1] |
Gasket kit
|
|
| 9. |
ZM2810609
|
[2] |
Clip
|
|
| 10. |
VOE997437
|
[2] |
Hexagon screw
|
M10x40
|
| 10A. |
ZM7095952
|
[2] |
Bolt
|
M10x80
|
| 11. |
VOE13949523
|
[6] |
Washer
|
10,5
|
| 11A. |
VOE13949523
|
[18] |
Washer
|
10,5
|
| 12. |
ZM7098002
|
[2] |
Nut
|
M10
|
| 12A. |
ZM2120430
|
[2] |
Nut
|
VM10
|
| 13. |
ZM2814297
|
[2] |
Bracket
|
|
| 14. |
VOE14370276
|
[2] |
Screw
|
M8x60
|
| 15. |
VOE11305837
|
[4] |
Washer
|
B 8,4
|
| 16. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 17. |
ZM4343099
|
[4] |
Clip
|
RSGU 1.17/15
|
| 18. |
VOE13955272
|
[4] |
Screw
|
M6x20
|
| 19. |
ZM4333068
|
[4] |
Washer
|
|
| 20. |
ZM7098000
|
[4] |
Nut
|
M6
|
| 21. |
VOE946390
|
[2] |
Elbow nipple
|
L18
|
| 22. |
VOE11306452
|
[2] |
Fitting
|
L18G1/2 B
|
| 23. |
VOE11306367
|
[2] |
Fitting
|
L18G1/2 B
|
| 24. |
VOE946390
|
[4] |
Elbow nipple
|
L18
|
| 25. |
ZM2814298
|
[2] |
Tube Assembly
|
|
| 26. |
VOE11306492
|
[2] |
Fitting
|
L18
|
| 27. |
ZM8091974
|
[2] |
Fitting
|
L10G1/4 B
|
| 28. |
VOE13945357
|
[2] |
Elbow nipple
|
L10
|
| 29. |
VOE11306455
|
[2] |
Hose assembly
|
|
| 30. |
ZM1089232
|
[4] |
O-ring
|
|
| 31. |
VOE13945357
|
[2] |
Elbow nipple
|
L10
|
| 32. |
VOE957082
|
[2] |
Nipple
|
L10
|
| 33. |
VOE957018
|
[2] |
Hexagon nut
|
M16x1,5
|
| 34. |
VOE13944262
|
[2] |
Joint nipple
|
L10
|
| 35. |
VOE13945357
|
[2] |
Elbow nipple
|
L10
|
| 36. |
ZM2801344
|
[1] |
Fitting Ge
|
|
| 37. |
ZM2901101
|
[1] |
O-ring
|
11,89x1,98
|
| 38. |
VOE11306363
|
[1] |
Fitting
|
|
| 39. |
VOE11306455
|
[2] |
Hose assembly
|
|
| 40. |
ZM1089232
|
[4] |
O-ring
|
|
| 41. |
ZM2812925
|
[1] |
Shut-off Valve
|
|
| 42. |
ZM2906062
|
[1] |
Shut-off valve
|
|
| 43. |
ZM2906063
|
[1] |
Housing
|
|
| 44. |
VOE13963823
|
[1] |
Nipple
|
|
| 45. |
VOE13944262
|
[1] |
Joint nipple
|
L10
|
| 46. |
ZM8091974
|
[1] |
Fitting
|
L10G1/4 B
|
| 47. |
VOE13945357
|
[2] |
Elbow nipple
|
L10
|
| 48. |
VOE11305386
|
[1] |
Hose assembly
|
|
| 49. |
ZM1089232
|
[2] |
O-ring
|
|
| 50. |
VOE944525
|
[1] |
T-nipple
|
L10
|
| 51. |
ZM2813639
|
[1] |
Electric cable
|
|
| 52. |
VOE14371059
|
[1] |
Diode
|
|
| 53. |
VOE11306710
|
[1] |
Switch
|
|
| 54. |
ZM2808253
|
[1] |
Symbol (fork lift attachm.)
|
|
| 55. |
VOE14016673
|
[12] |
Strip clamp
|
|
| 56. |
VOE960148
|
[4] |
Plain washer
|
10,5
|
