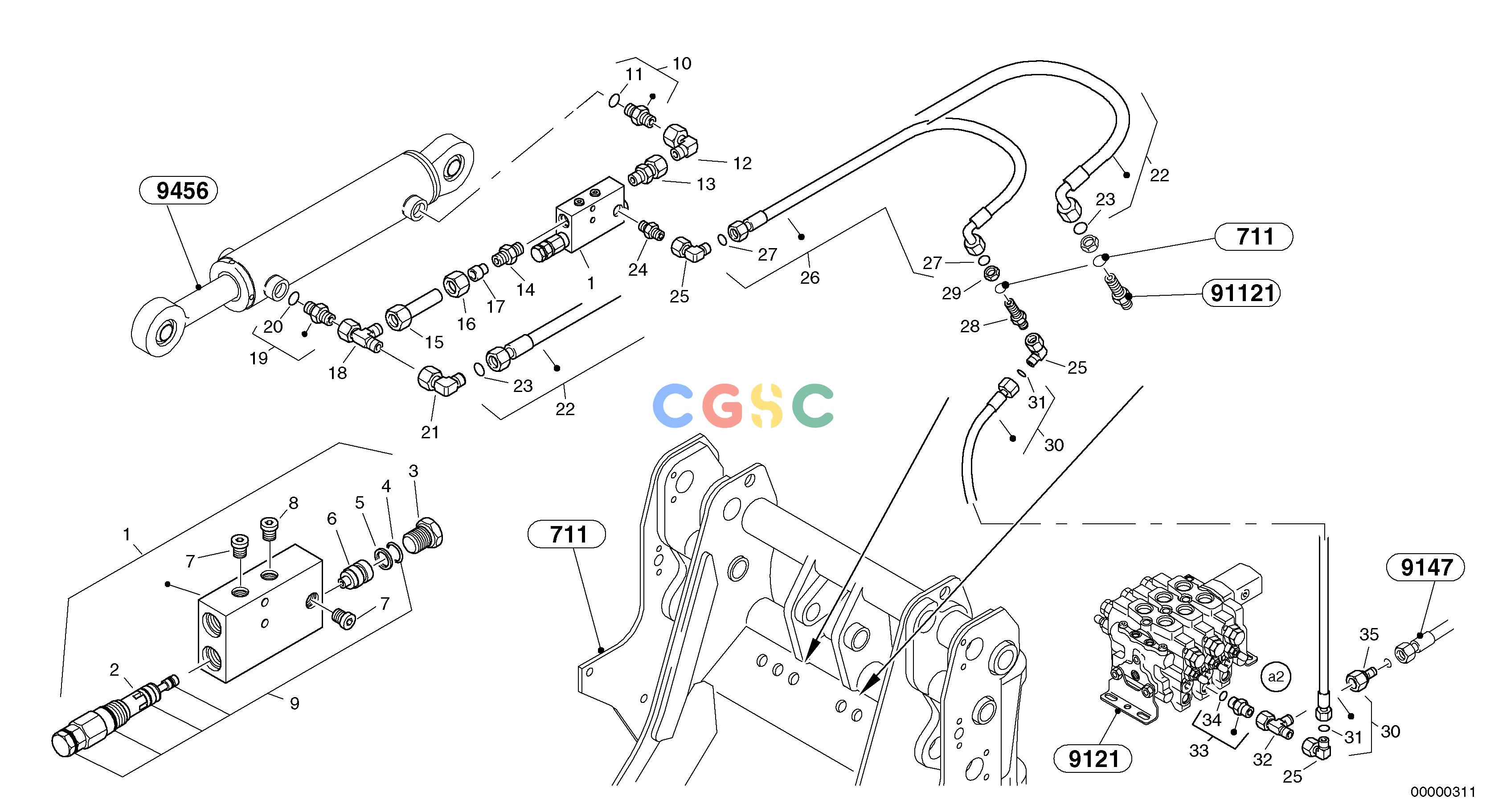

沃尔沃零件查询L40 Line fracture safety - TiltTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
275 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812922
|
[1] |
Load holder valve, cpl.
|
|
| 10. |
VOE11306451
|
[1] |
Nipple
|
|
| 11. |
ZM2087970
|
[1] |
O-ring
|
19,3x2,4
|
| 12. |
VOE946390
|
[1] |
Elbow nipple
|
L18
|
| 13. |
VOE11306452
|
[1] |
Fitting
|
L18G1/2 B
|
| 14. |
VOE11306367
|
[1] |
Fitting
|
L18G1/2 B
|
| 15. |
ZM2814259
|
[1] |
Pipe
|
|
| 16. |
VOE11306599
|
[1] |
Fitting nut
|
AL18
|
| 17. |
VOE980786
|
[1] |
Ferrule
|
L18
|
| 18. |
VOE11306491
|
[1] |
T-nipple
|
L18
|
| 19. |
VOE11306451
|
[1] |
Nipple
|
|
| 2. |
ZM2905769
|
[1] |
Valve
|
|
| 20. |
ZM2087970
|
[1] |
O-ring
|
19,3x2,4
|
| 21. |
VOE946390
|
[1] |
Elbow nipple
|
L18
|
| 22. |
ZM2811760
|
[1] |
Hose
|
|
| 23. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 24. |
ZM8091974
|
[1] |
Fitting
|
L10G1/4 B
|
| 25. |
ZM7092347
|
[3] |
Angular fitting
|
L10
|
| 26. |
VOE11305386
|
[1] |
Hose assembly
|
|
| 27. |
ZM1089232
|
[2] |
O-ring
|
|
| 28. |
VOE957082
|
[1] |
Nipple
|
L10
|
| 29. |
VOE957018
|
[1] |
Hexagon nut
|
M16x1,5
|
| 3. |
ZM2905267
|
[1] |
Screw plug
|
|
| 30. |
VOE11306455
|
[1] |
Hose assembly
|
|
| 31. |
ZM1089232
|
[2] |
O-ring
|
|
| 32. |
ZM7092235
|
[1] |
Nipple
|
L10
|
| 33. |
ZM2801344
|
[1] |
Fitting Ge
|
|
| 34. |
ZM2901101
|
[1] |
O-ring
|
11,89x1,98
|
| 35. |
VOE11306363
|
[1] |
Fitting
|
|
| 4. |
ZM2905766
|
[1] |
O-ring
|
15,08x2,62
|
| 5. |
ZM2903316
|
[1] |
Ring
|
|
| 6. |
ZM2905768
|
[1] |
Control piston
|
|
| 7. |
ZM2905770
|
[2] |
Screw plug
|
|
| 8. |
ZM2906184
|
[1] |
Screw plug
|
|
| 9. |
ZM2906180
|
[1] |
Gasket set
|
|
