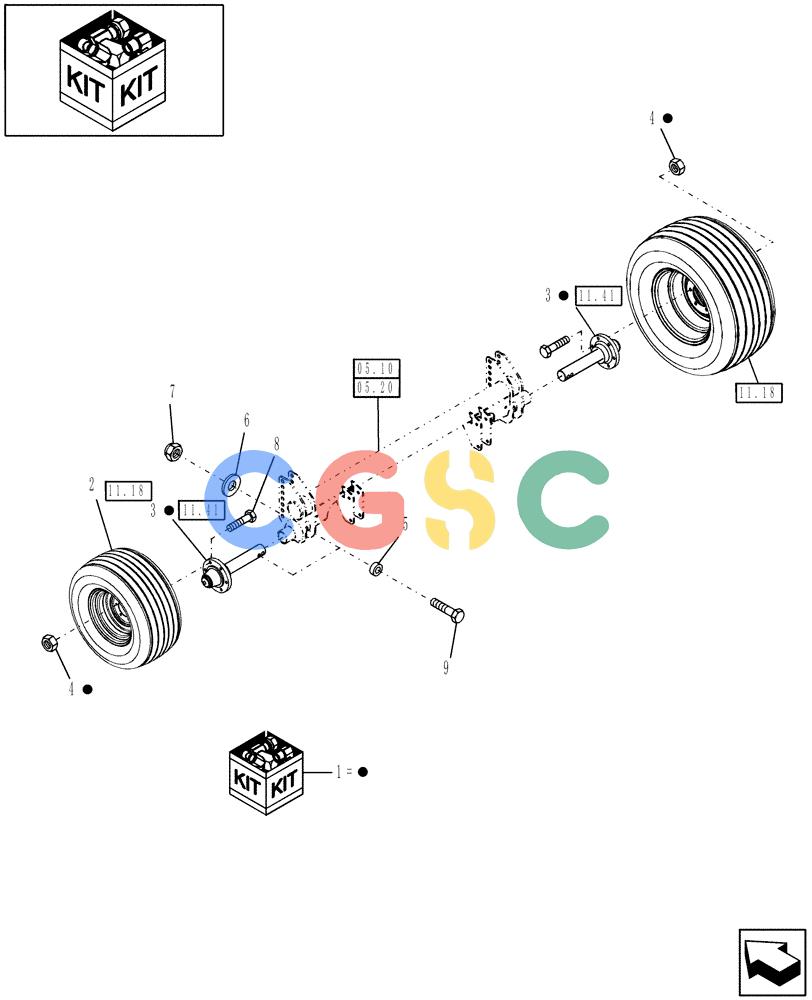

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.12) - LARGE TIRE KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87045058
|
[1] |
DIA KIT, HARVESTER
|
PA
Large Tire
|
| 2. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Tire & Wheel
|
| 4. |
86625632
|
[12] |
WHEEL NUT,Hex, M18 x 1.5
|
NH
Wheel, M18 x 1.5 UNF
|
| 5. |
86641937
|
[2] |
SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk
|
PA
|
| 6. |
122432
|
[2] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Hardened, 5/8" Superseded by part number: 84058945
|
| 7. |
832-46416
|
[2] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 8. |
87018139
|
[12] |
BOLT
|
PA
Wheel, M18 x 1.5
|
| 9. |
814-16100
|
[2] |
BOLT,Hex, M16 x 2 x 100mm, Cl 8.8
|
CAS
Superseded by part number: 374889
|
