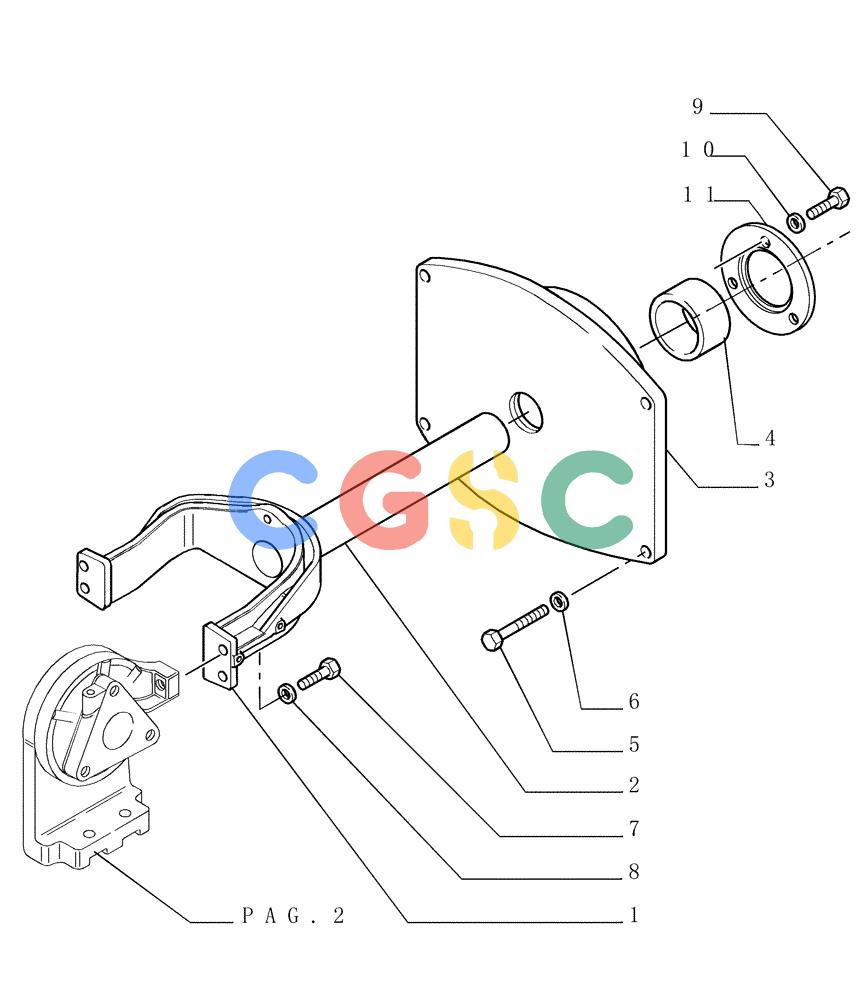

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.346[03]) - TRACK IDLER - YOKE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
458 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040873 | [2] | YOKE | LEC Superseded by part number: 76093950, 76093912 |
| 2. | 76040872 | [2] | ROD | LEC |
| 3. | 76040860 | [2] | COVER | LEC Superseded by part number: 76080847, 76080848, 337563 |
| 4. | 76040861 | [2] | BUSHING | LEC |
| 5. | 11112431 | [8] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 6. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 7. | 15981034 | [8] | BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9 | LEC Superseded by part number: 15981031 |
| 8. | 14496931 | [8] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 9. | 16043231 | [12] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 10. | 12645031 | [12] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 11. | 76068470 | [2] | RETAINING PLATE | LEC |
