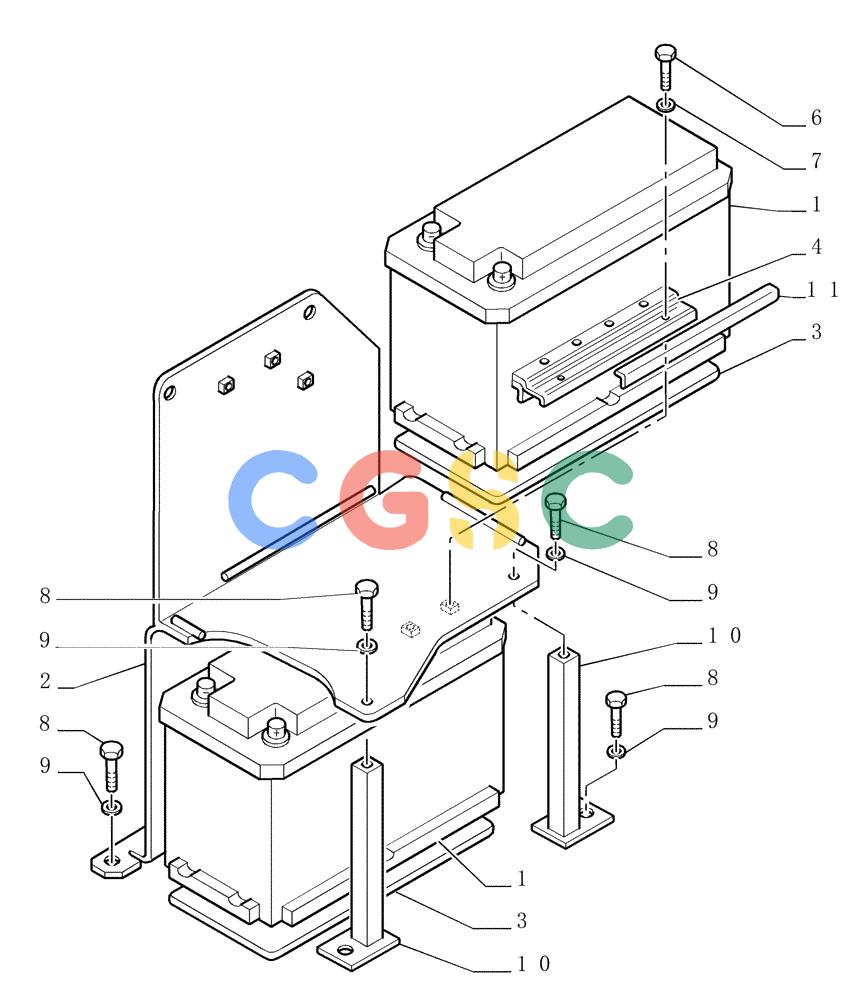

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (6.701[01]) - BATTERY - SEAT AND SUPPORT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
879 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71421589 | [2] | DRY BATTERY | LECMAGNETI - MARELLI 160AH 12V 650A Superseded by part number: 73325166 |
| 2. | 76068077 | [1] | SUPPORT | LEC Superseded by part number: 76074731 |
| 3. | 79010787 | [2] | PLATE | LEC |
| 4. | 79084347 | [2] | BRACKET | LEC |
| 6. | 16043031 | [4] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 7. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 8. | 11112231 | [6] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 9. | 12648531 | [6] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 10. | 76054961 | [2] | SUPPORT | LEC |
| 11. | 70731647 | [1] | SEAL | LECL=0,300M Superseded by part number: 73128091 |
