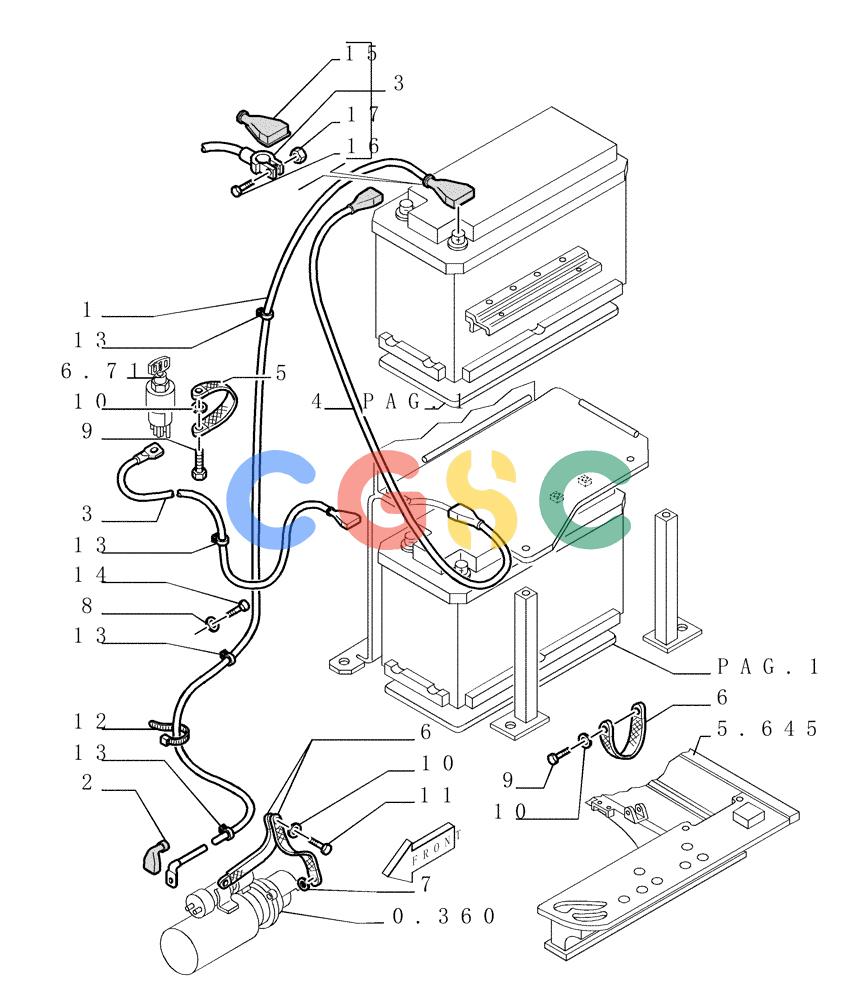

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (6.701[02]) - BATTERY - SEAT AND SUPPORT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
928 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76053570 | [1] | POS BATTERY CABLE | LEC |
| 2. | 5128817 | [1] | PROTECTION CAP | LEC |
| 3. | 79090059 | [1] | NEG BATTERY CABLE | LEC- ASSY |
| 4. | 4954336 | [1] | NEG BATTERY CABLE | LEC |
| 5. | 79028421 | [1] | GROUND CABLE | LEC |
| 6. | 79020354 | [3] | GROUND STRAP | LEC |
| 7. | 14496731 | [1] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 8. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 10979231 | [3] | BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87547661 |
| 10. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 11. | 11103031 | [1] | BOLT,Hex, M10 x 18, 10.9, Full Thd | LEC |
| 12. | 4982514 | [1] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 13. | 10450290 | [4] | CLAMP,12mm, Coat, 9mm Bolt Hole, P Type | LEC74X9 Superseded by part number: 86625036 |
| 14. | 16043431 | [4] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 15. | 4950259 | [1] | PROTECTION CAP | LEC |
| 16. | 11945008 | [1] | SCREW | LECSq. Hd, M6 x 1 x 30 Superseded by part number: 11945208 |
| 17. | 15896218 | [1] | NUT | TTF6X1X5 Superseded by part number: 86500688 |
