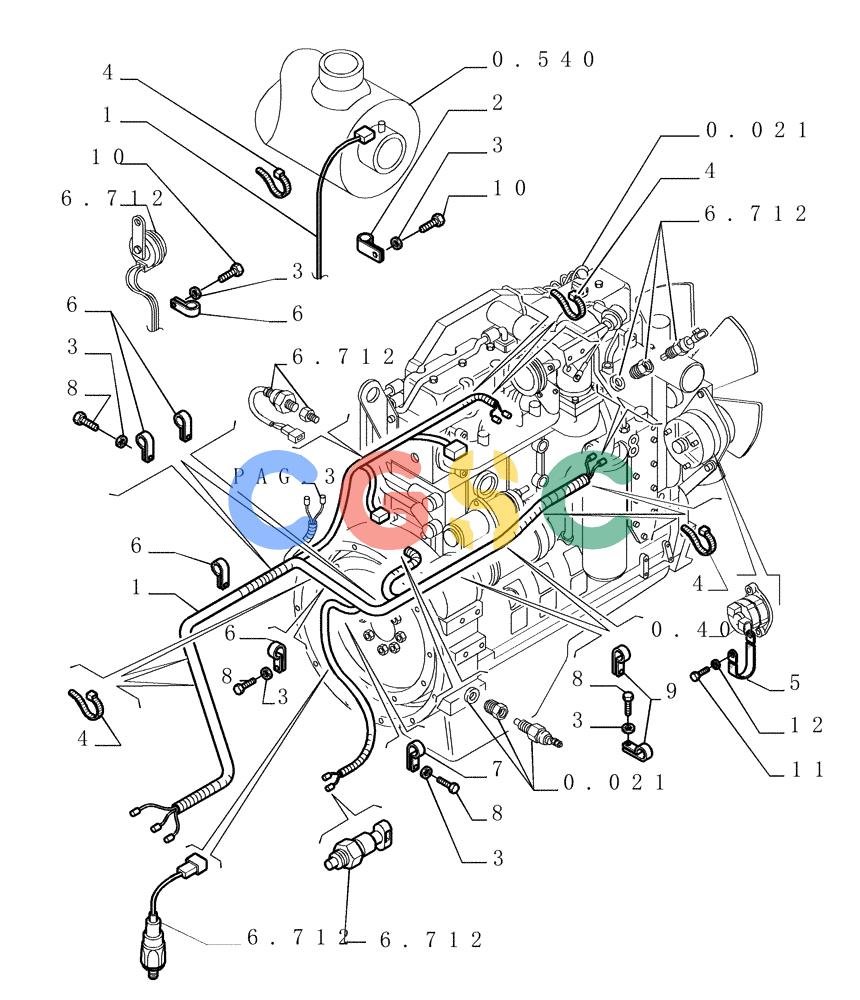

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (6.711[01]) - ELECTRICAL SYSTEM - ELECTRIC WIRING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76047475 | [1] | WIRE HARNESS | LEC- MACHINE |
| 2. | 10450290 | [2] | CLAMP,12mm, Coat, 9mm Bolt Hole, P Type | LEC74X9 Superseded by part number: 86625036 |
| 3. | 14496531 | [14] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 4. | 4982514 | [4] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 5. | 76047478 | [1] | WIRE HARNESS | LEC- GROUND ALTERNATOR |
| 6. | 10450990 | [6] | CLAMP,26mm, Coat, 9mm Bolt Hole, P Type | LEC26X9 Superseded by part number: 86637977 |
| 7. | 10450790 | [1] | RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type | LEC22X9 Superseded by part number: 10450990 |
| 8. | 16043031 | [10] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 9. | 10448890 | [2] | CLAMP,36mm, Coat, P Type | LEC36 Superseded by part number: |
| 10. | 16043231 | [4] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 11. | 11103031 | [1] | BOLT,Hex, M10 x 18, 10.9, Full Thd | LEC |
| 12. | 14496631 | [1] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 13. | 76193563 | [1] | SENSOR | LEC Superseded by part number: 47475675 |
