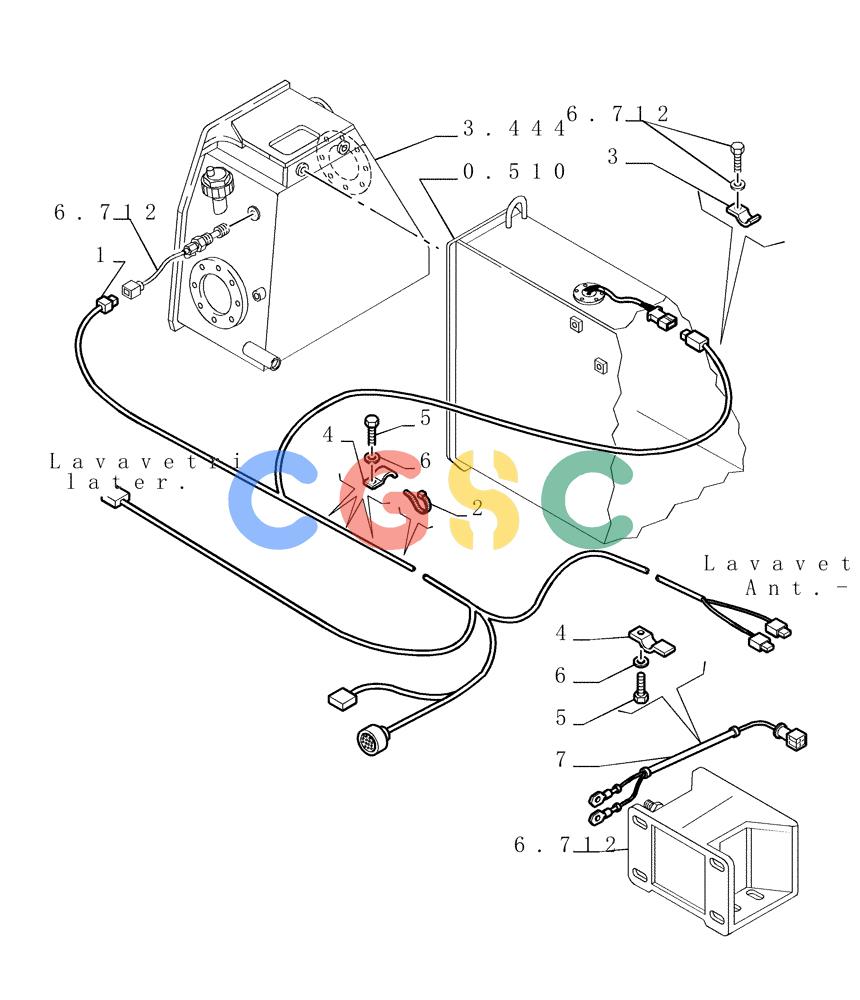

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (6.711[02]) - ELECTRICAL SYSTEM - ELECTRIC WIRING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
305 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76047476 | [1] | WIRE HARNESS | LEC- REAR |
| 2. | 4982514 | [1] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 3. | 10117201 | [1] | CLAMP | LEC3-10 |
| 4. | 10450290 | [1] | CLAMP,12mm, Coat, 9mm Bolt Hole, P Type | LEC74X9 Superseded by part number: 86625036 |
| 5. | 16043031 | [3] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 6. | 14496531 | [3] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 7. | 76042318 | [1] | WIRE HARNESS | LEC- HORN BACK-UP |
