纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (6.711[03]) - ELECTRICAL SYSTEM - ELECTRIC WIRING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
390 次

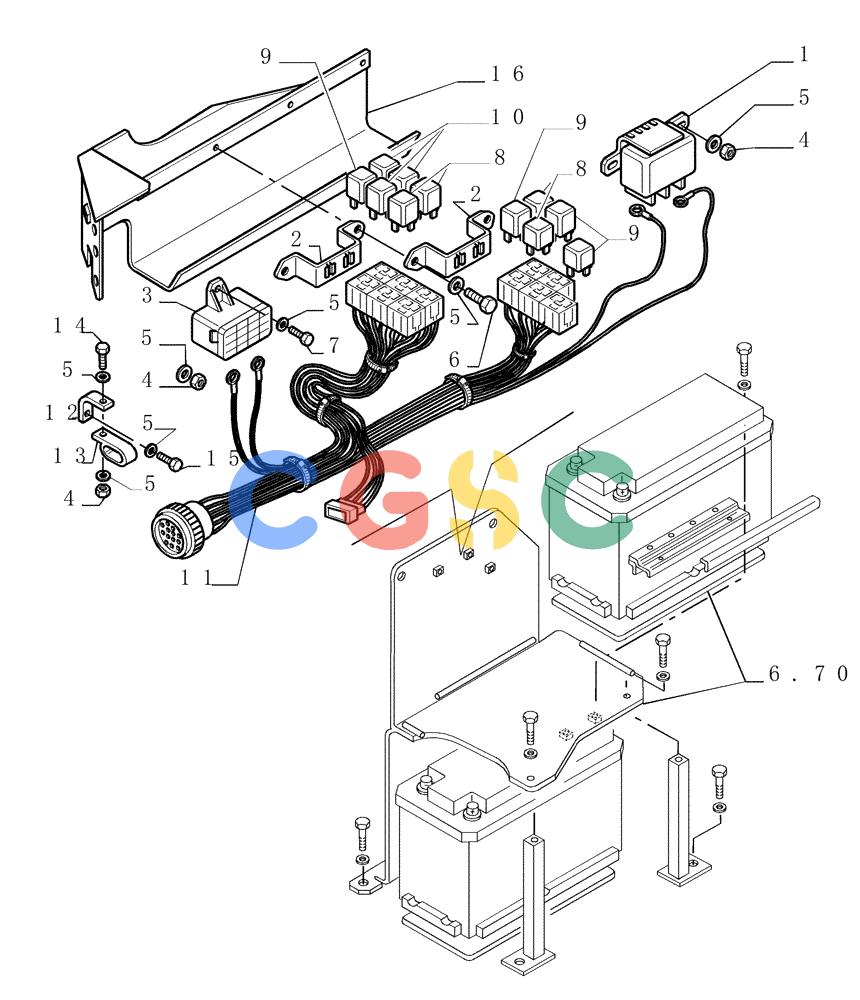

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79099760 | [1] | RELAY,24V, 90A | LEC- STRIBEL-90A |
| 2. | 79068201 | [2] | BRACKET | LEC |
| 3. | 79102105 | [1] | BOX | LEC- DERIVATION Superseded by part number: 87616204 |
| 4. | 15896221 | [5] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 5. | 14496431 | [9] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 6. | 10979431 | [4] | SCREW,Hex, M6 x 10mm, Cl 10.9, Full Thd | LEC |
| 7. | 10902231 | [1] | SCREW,Hex, M6 x 16mm, Cl 10.9 | LEC Superseded by part number: 86639037 |
| 8. | 76036558 | [4] | RELAY | LEC24V-10/20A |
| 9. | 79098184 | [4] | RELAY | LEC24V - 50A |
| 10. | 76069188 | [3] | RELAY | LEC |
| 11. | 76053578 | [1] | ELECTRIC CABLE | LEC- BATTERY BOX |
| 12. | 76042591 | [1] | BRACKET | LEC |
| 13. | 10448790 | [1] | CLAMP,30mm, Coat, 9mm Bolt Hole, P Type | LEC30 |
| 14. | 10902331 | [1] | SCREW,Hex, M6 x 18mm, Cl 10.9, Full Thd | LEC |
| 15. | 16043031 | [1] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 16. | 76068071 | [1] | SUPPORT | LEC |
