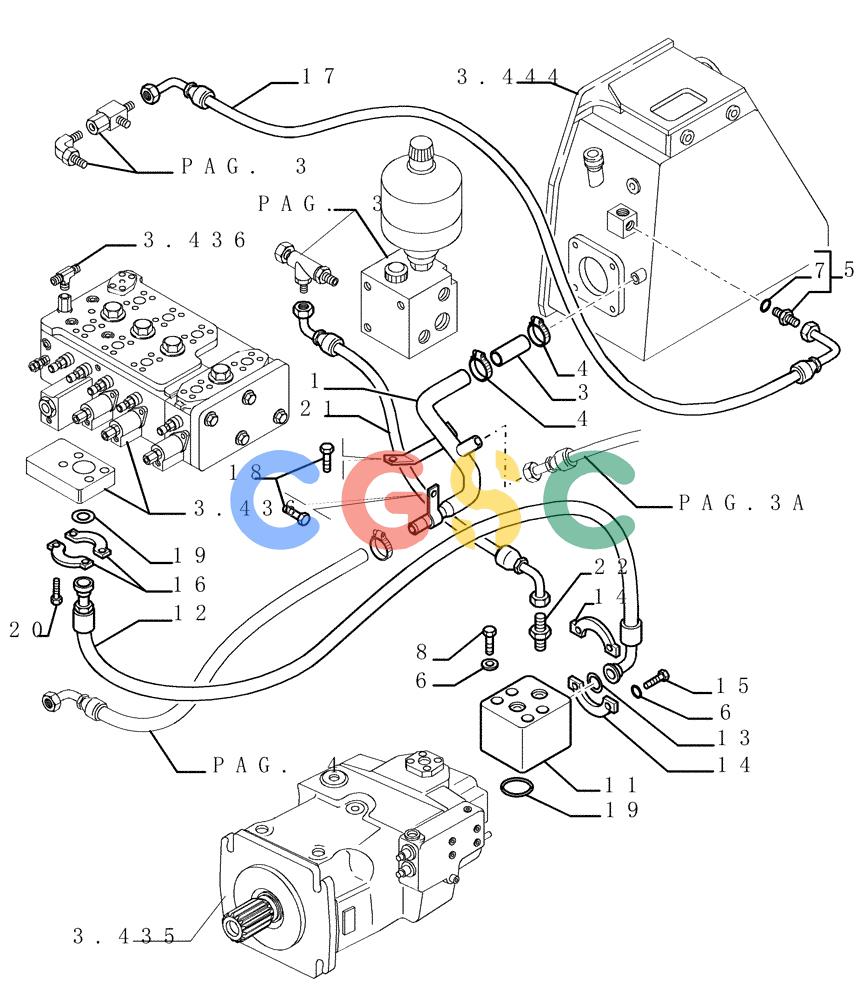

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.434[02]) - HYDRAULIC SYSTEM PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
727 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069295 | [1] | RIGID TUBE | LEC |
| 2. | 79066986 | [1] | TEE | LEC |
| 3. | 76046672 | [1] | HOSE,45.00 mm ID x 235.00 mm | LEC |
| 4. | 79083847 | [2] | HOSE CLAMP,M50-70 | LEC |
| 5. | 79066943 | [1] | ELBOW | LEC- ASSY |
| 6. | 10119340 | [1] | PLUG,M16 x 1.5 x 15, Brass | LEC |
| 7. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 8. | 76069276 | [1] | RIGID TUBE | LEC- DELIVERY |
| 11. | 76069294 | [1] | HYD CONNECTOR | LEC90° |
| 12. | 76069289 | [1] | FLEXIBLE HOSE | LEC- DELIVERY |
| 13. | 70924192 | [1] | O-RING | LEC3,53X37,69 Superseded by part number: 14464080 |
| 14. | 76044748 | [2] | FLANGE | LEC Superseded by part number: 71444029 |
| 15. | 14313231 | [4] | HEX SOC SCREW,M14 x 2 x 45mm, Cl 10.9, Full Thd | LEC Superseded by part number: 1939880 |
| 16. | 71444029 | [1] | HALF-FLANGE | LEC |
| 17. | 12626231 | [1] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 18. | 70931640 | [1] | O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro | LEC1,78X23,52 Superseded by part number: 87473574 |
| 19. | 76069349 | [1] | FLEXIBLE HOSE | LECL=620 |
| 20. | 14420131 | [1] | HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd | LEC |
| 21. | 71437620 | [1] | TEE | LECTEE 9/16" |
| 22. | 70919552 | [1] | CAP | BHB- 9/16" Superseded by part number: 574342 |
| 23. | 79105687 | [1] | HYD CONNECTOR | LEC1"G-1"7/16 |
