纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[12]) - ROPS CAB - FRONT WINDSHIELD WIPER - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
986 次

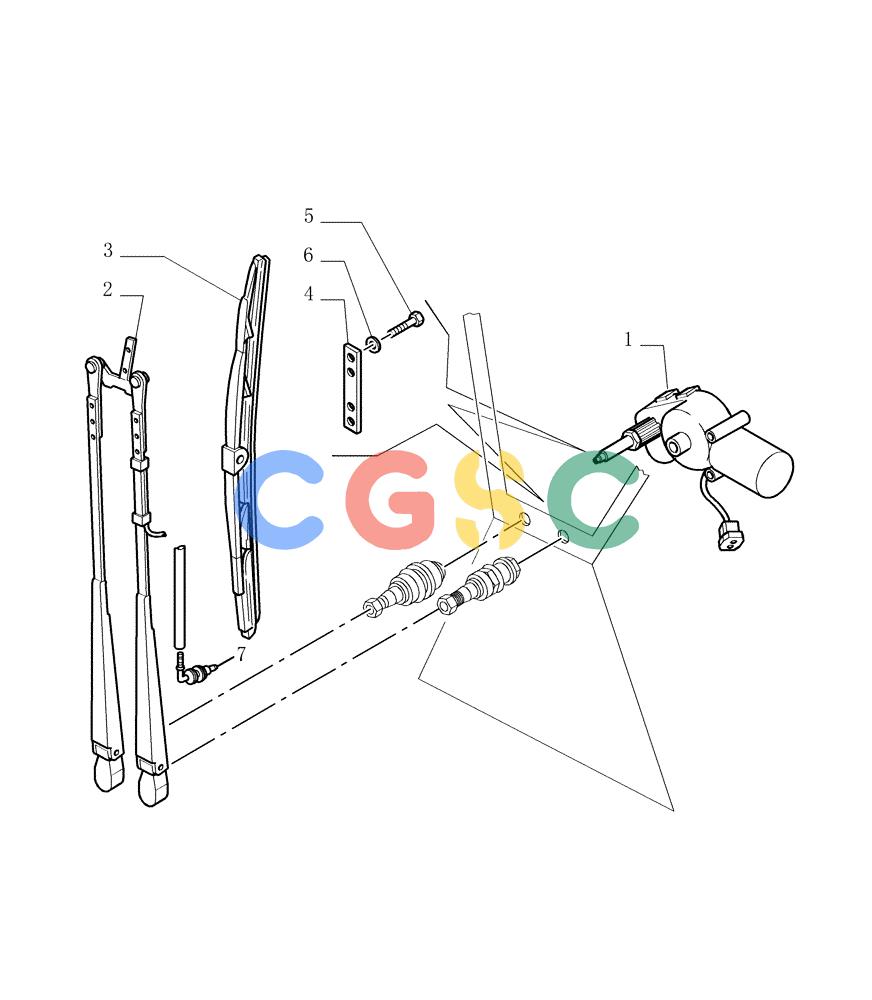

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067667 | [1] | WIPER MOTOR | LEC24V Superseded by part number: 87696031 |
| 2. | 76067238 | [1] | WIPER ARM | LECL=430 |
| 3. | 76067230 | [1] | WIPER BLADE | LECL=507; Includes Bracket, Which is Not Serviced Separately, for Mounting, Serial Range: Blade-Arm |
| 4. | 76067231 | [1] | BRACKET | LEC |
| 5. | 16043231 | [2] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 6. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 7. | 76043978 | [1] | ELBOW | LECConnection |
