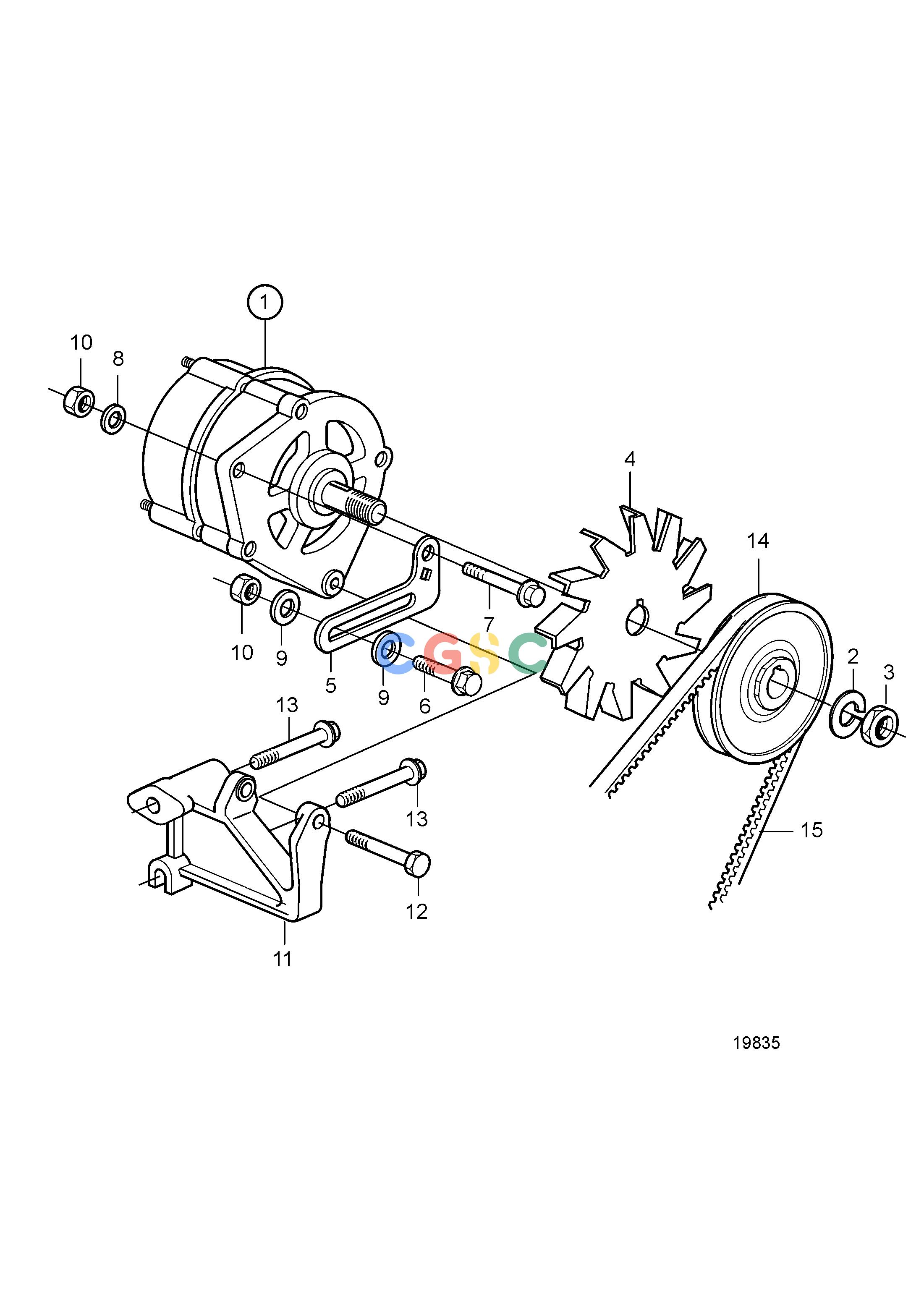

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemAlternator, Low-Left Mounted 14V 95AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20571644
|
[1] |
Alternator
|
(20460424)
|
| 1. |
3803882
|
[1] |
Alternator, exch
|
|
| 2. |
941912
|
[1] |
Spring washer
|
|
| 3. |
20441521
|
[1] |
Hexagon nut
|
|
| 4. |
20459039
|
[1] |
Fan
|
|
| 5. |
20405804
|
[1] |
Tensioner
|
|
| 6. |
984734
|
[1] |
Flange screw
|
|
| 7. |
20405917
|
[1] |
Flange screw
|
|
| 8. |
20460226
|
[1] |
Washer
|
|
| 9. |
20405802
|
[2] |
Washer
|
|
| 10. |
20501349
|
[2] |
Hexagon nut
|
|
| 11. |
20460411
|
[1] |
Bracket
|
|
| 12. |
955306
|
[1] |
Hexagon screw
|
|
| 13. |
973924
|
[2] |
Flange screw
|
|
| 14. |
20464462
|
[1] |
Pulley
|
|
| 15. |
968933
|
[1] |
V-belt
|
L=1075mm
|
