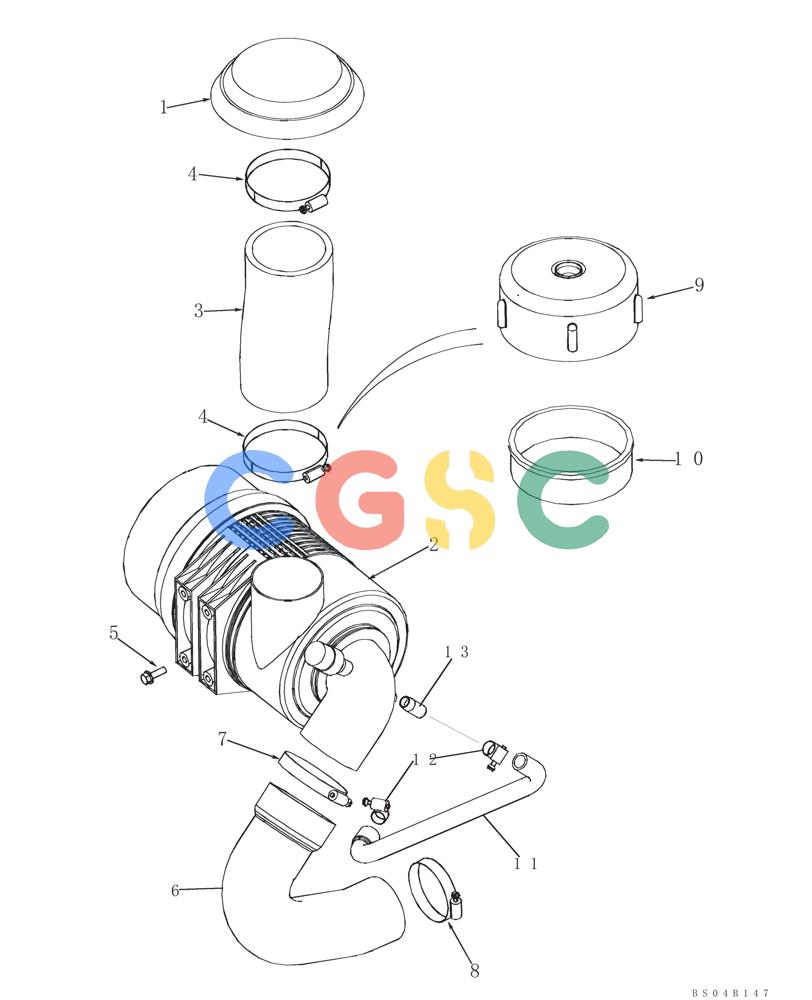

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-06) - AIR CLEANER - MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
112 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | A170235 | [1] | CAP | CASIncludes Clamp Superseded by part number: 70698760 |
| 2. | 87434701 | [1] | AIR CLEANER | BURSee Figure 02-07 |
| 3. | 429531A1 | [1] | RADIATOR HOSE,95.30 mm ID x 194.00 mm, SAE J200, SAE J20 | BUR |
| 4. | 214-3180 | [2] | HOSE CLAMP,4-1/4" - 5-1/8", HD Worm | CAS5 in Superseded by part number: 86633351 |
| 5. | 844-8025 | [4] | BOLT,Hvy Hex, M8 x 25mm, Cl 8.8 | CAS Superseded by part number: 9671714 |
| 6. | 87431919 | [1] | LARGE HOSE | BURHOSE,LARGE |
| 7. | 214-3172 | [1] | HOSE CLAMP,3-3/4" - 4-5/8", HD Worm | CAS4-1/2 in |
| 8. | 214-3164 | [1] | HOSE CLAMP,3-1/4" - 4-1/8", HD Worm | CAS4 in |
| 9. | 86988018 | [1] | AIR INTAKE | BURIncludes Clamp; Component Parts Not Serviced Separately; If Used |
| 10. | 86988017 | [1] | INSERT | BURRubber |
| 11. | 87435086 | [1] | HOSE | BUR |
| 12. | 214-1424 | [2] | HOSE CLAMP,#24, 1.06" - 2", Type F Worm | CAS Superseded by part number: 513309 |
| 13. | L17985 | [1] | FITTING | CAS |
