纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (03-11) - FUEL PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
854 次

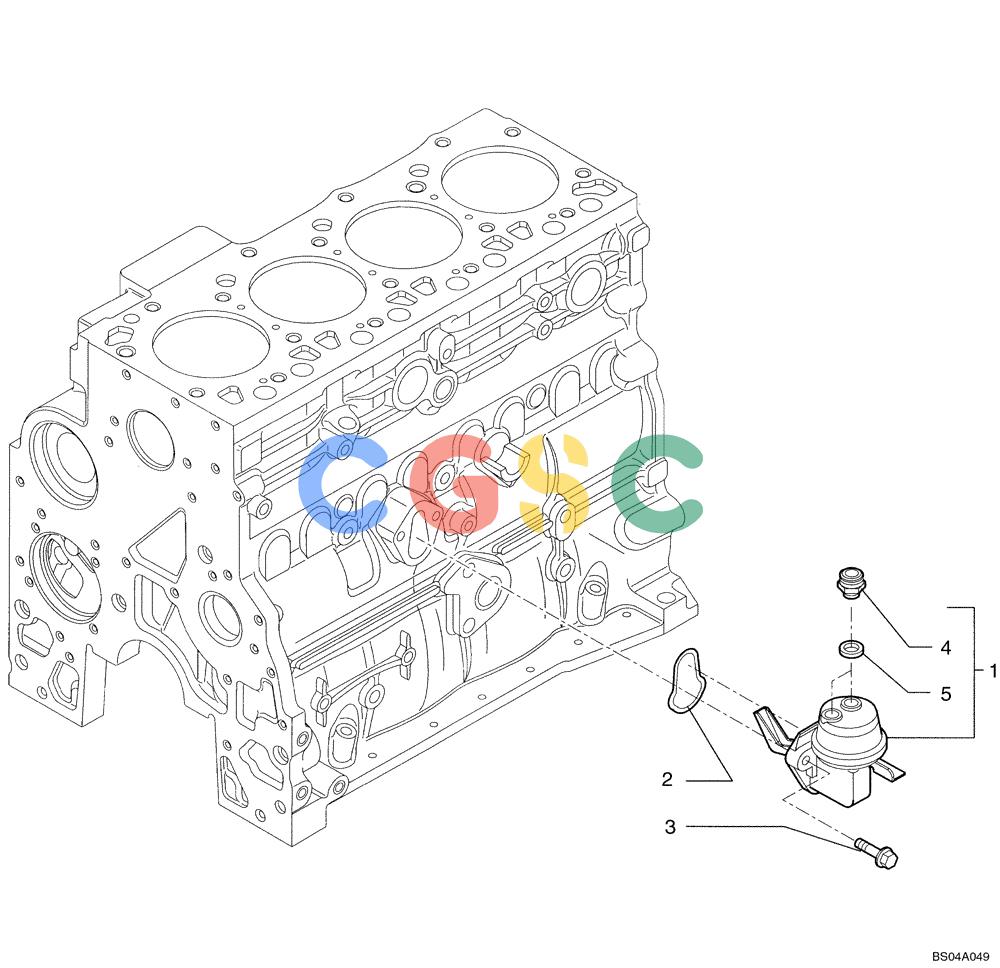

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2830266 | [1] | FUEL PUMP | TORFuel Transfer; Incl. Ref 4, 5 Superseded by part number: 4890964, 4894721 |
| . . | 2830266R | [1] | REMAN-FUEL LIFT PUMP | MKTDC75 (8/04-) Superseded by part number: 84268475R |
| . . | 2830266C | [1] | FUEL PUMP | MKTReturn Number |
| 2. | 2830156 | [1] | O-RING,70 Duro, M2.62 Thk | TOR |
| 3. | 4899031 | [2] | BOLT,Flng, M8 x 1.25 x 25mm | TOR Superseded by part number: 4899079 |
| 4. | 4890964 | [2] | FITTING,M12 x 1.5 | TOR |
| 5. | 4894721 | [2] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TOR |
