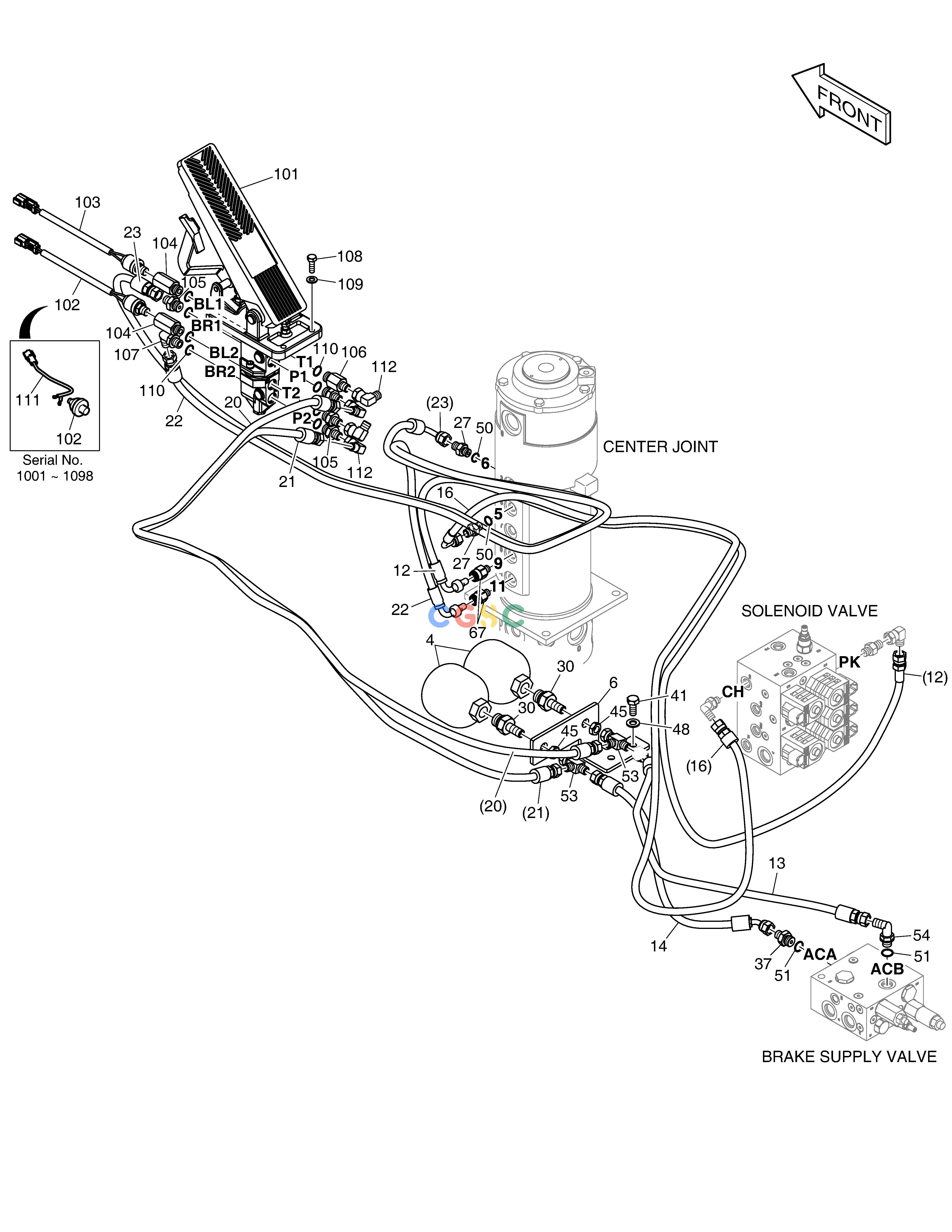

斗山零件查询BRAKE PIPING(1) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
913 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09585
|
[-] |
|
|
| 101. |
410102-00062
|
[1] |
|
|
| 102. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 102. |
301413-00340
|
[1] |
|
|
| 103. |
301413-00289
|
[1] |
|
|
| 104. |
181-00182
|
[2] |
REDUCER
|
|
| 105. |
2181-1126D36
|
[4] |
ADAPTER
|
|
| 106. |
DS2213166
|
[1] |
ADAPTER
|
|
| 107. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 108. |
S0555753
|
[4] |
BOLT M8X1.25X25
|
|
| 109. |
S5010516
|
[4] |
WASHER
|
|
| 110. |
S8000141
|
[8] |
O-RING
|
|
| 111. |
530-00067
|
[1] |
HARNESS
|
|
| 112. |
181-00709
|
[4] |
ELBOW;UNION
|
|
| 12. |
DS2164003
|
[1] |
|
|
| 13. |
DS2092322
|
[1] |
|
|
| 14. |
DS2092092
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 16. |
DS2093126
|
[1] |
HOSE
|
|
| 20. |
DS2094215
|
[1] |
HOSE
|
|
| 21. |
DS2094340
|
[1] |
|
|
| 22. |
DS2164004
|
[1] |
|
|
| 23. |
DS2093335
|
[1] |
|
|
| 27. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 30. |
430201-01054
|
[2] |
|
|
| 37. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 4. |
2460-9037
|
[2] |
ACCUMULATOR
|
|
| 41. |
S0512066
|
[2] |
. BOLT
|
|
| 45. |
121-00010D7
|
[2] |
NUT
|
|
| 48. |
120804-00076
|
[2] |
WASHER
|
|
| 50. |
S8000111
|
[2] |
O-RING
|
|
| 51. |
S8000141
|
[2] |
O-RING
|
|
| 53. |
181-00837D1
|
[2] |
TEE;UNION
|
|
| 54. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 6. |
250127-00930
|
[1] |
|
|
| 67. |
430201-01435
|
[2] |
|
|
