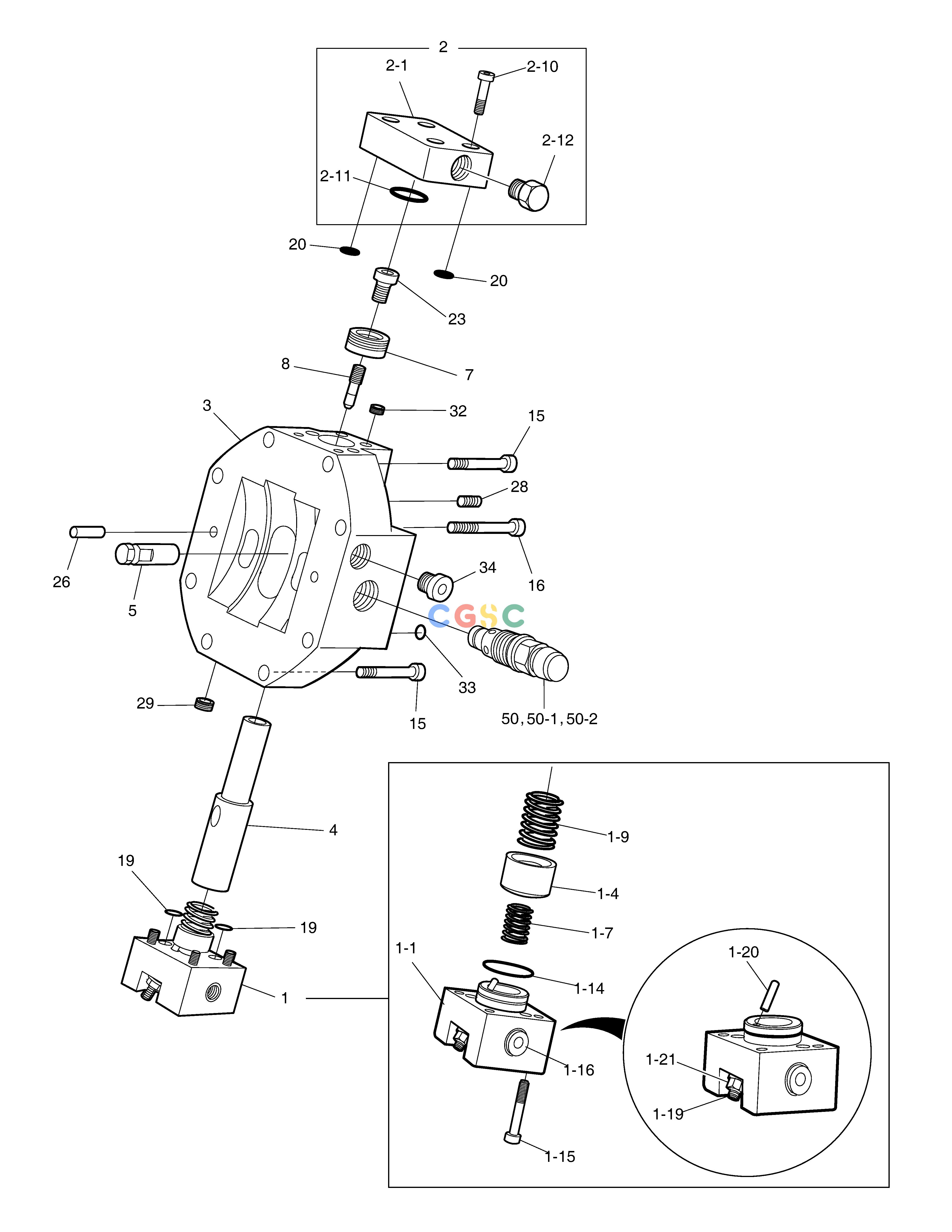

斗山零件查询TRAVEL MOTOR - CONTROL PARTS E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
494 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2.409-00244
|
[1] |
CONTROL
|
|
| 1. |
2.421-00360
|
[1] |
PART;CONTROL
|
|
| 1-1. |
2.402-00339
|
[1] |
HOUSING;CONTROL
|
|
| 1-14. |
2.180-01204
|
[1] |
O-RING
|
|
| 1-15. |
2.120-00825
|
[4] |
SCREW;SOCKET HEAD
|
|
| 1-16. |
2.120-00813
|
[2] |
SCREW;LOCKING
|
|
| 1-19. |
2.123-00247
|
[1] |
SCREW;SET
|
|
| 1-20. |
2.123-00287
|
[1] |
PIN;CYLINDER
|
|
| 1-21. |
2.121-00202
|
[1] |
NUT;SEAL LOCK
|
|
| 1-4. |
2.110-00020
|
[1] |
BUSHING;ADJUSTING
|
|
| 1-7. |
2.131-00421
|
[1] |
SPRING
|
|
| 1-9. |
2.129-00018
|
[1] |
SPRING;PRESSURE
|
|
| 15. |
2.120-00834
|
[4] |
SCREW;SOCKET HEAD
|
|
| 16. |
2.120-00835
|
[4] |
SCREW;SOCKET HEAD
|
|
| 19. |
K9000961
|
[2] |
O-RING
|
|
| 2. |
2.430-00438
|
[1] |
COVER ASS'Y
|
|
| 2-1. |
2.430-00437
|
[1] |
COVER
|
|
| 2-10. |
2.120-00841
|
[4] |
SCREW;SOCKET HEAD
|
|
| 2-11. |
2.180-01188
|
[1] |
O-RING
|
|
| 2-12. |
2.120-00813
|
[1] |
SCREW;LOCKING
|
|
| 20. |
2.180-01187
|
[3] |
O-RING
|
|
| 23. |
2.120-00839
|
[1] |
SCREW;SOCKET
|
|
| 26. |
2.123-00132
|
[2] |
PIN;CYLINDER
|
|
| 28. |
2.181-00183
|
[1] |
PLUG
|
|
| 29. |
430221-00446
|
[2] |
|
|
| 3. |
NA00828
|
[1] |
|
|
| 32. |
2.181-00184
|
[1] |
PLUG
|
|
| 33. |
2.180-01195
|
[1] |
O-RING
|
|
| 34. |
2.120-00816
|
[2] |
PLUG
|
|
| 4. |
2.452-00010
|
[1] |
PISTON;POSITIONING
|
|
| 5. |
2.428-00074
|
[1] |
TRUNNION;POSITIONING
|
|
| 50. |
410127-00357
|
[2] |
|
|
| 50-1. |
2.180-01215
|
[1] |
KIT;SEAL
|
|
| 50-2. |
2.430-00058
|
[1] |
CAP
|
|
| 7. |
130602-00669
|
[1] |
|
|
| 8. |
2.123-00296
|
[1] |
PIN;THREADED
|
|
