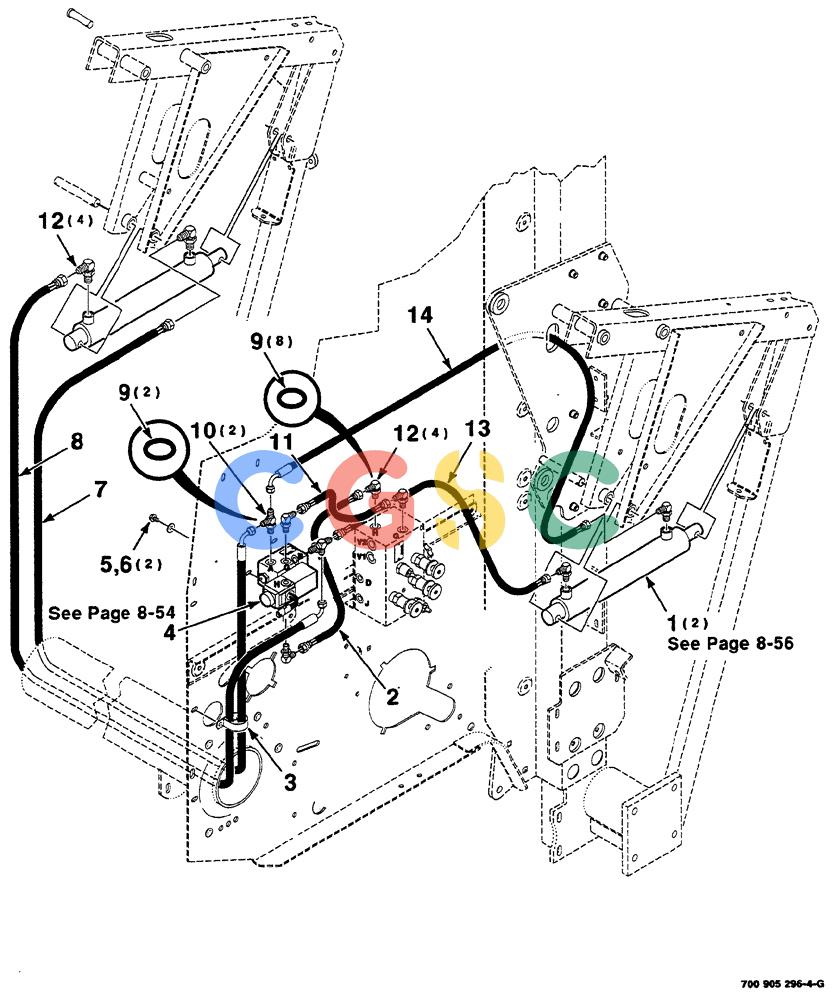

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (09-032) - BALE KICKER KIT - HYDRAULIC ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
846 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700714707
|
[2] |
CYLINDER
|
CAS
ASSEMBLY hydraulic
|
| 2. |
700718466
|
[1] |
HYDRAULIC HOSE,0.38" ID x 11.81", SAE J516, SAE J343
|
CAS
hydraulic
|
| 3. |
515-23444
|
[1] |
CLAMP,1 3/4", Insul, 3/8" Bolt
|
CAS
line Superseded by part number: 603022
|
| 4. |
700714785
|
[1] |
MANIFOLD
|
CAS
VALVE
|
| 5. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 6. |
495-61034
|
[2] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
wide plain, 5/16
|
| 7. |
700718470
|
[1] |
HOSE
|
CAS
hydraulic
|
| 8. |
700718069
|
[1] |
HOSE
|
CAS
hydraulic
|
| 9. |
738468
|
[10] |
O-RING
|
IH
|
| 10. |
218-5243
|
[2] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes: Ref. 9) Superseded by part number: 86513020
|
| 11. |
700718467
|
[1] |
HYDRAULIC HOSE,0.38" ID x 14.96", SAE J516, SAE J343
|
CAS
hydraulic
|
| 12. |
218-5105
|
[8] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(Includes Ref. 9) Superseded by part number: 76344, 72186128
|
| 13. |
700718059
|
[1] |
HYDRAULIC HOSE,0.25" ID x 45.28", SAE100R17, SAE J517, SAE J516, SAE J343
|
CAS
hydraulic
|
| 14. |
700718468
|
[1] |
HOSE
|
CAS
hydraulic
|
