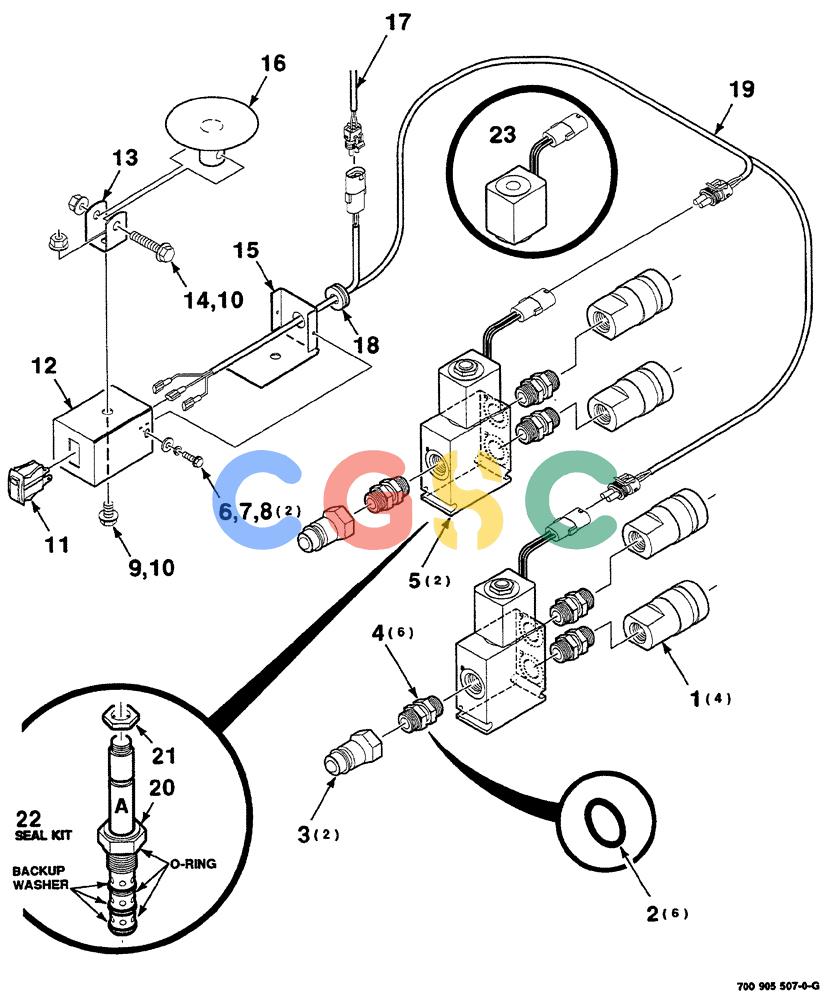

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (09-034) - HYDRAULIC TRACTOR REMOTE KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
540 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK51001
|
[1] |
KIT hydraulic tractor remote, complete
|
|
| 1. |
700719352
|
[4] |
COUPLING
|
HFI
half, female
|
| 2. |
237-6008
|
[6] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
Superseded by part number: 128825
|
| 3. |
700703886
|
[2] |
COUPLING
|
HFI
half, male
|
| 4. |
700713197
|
[6] |
FITTING
|
HFI
hydraulic Superseded by part number: 87412765
|
| 5. |
700719354
|
[2] |
SHUT-OFF VALVE
|
HFI
tractor remote (Includes: Ref. 20, 21, 22 & 23)
|
| 6. |
7884331
|
[2] |
SCREW
|
CAS
hex washer head thread cutting tapping, #10-32 x 1/2
|
| 7. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 8. |
495-31022
|
[2] |
WASHER,#10
|
CAS
Superseded by part number: 88612
|
| 9. |
256873
|
[1] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 10. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
hex flange top lock, 5/16-18 GR/G
|
| 11. |
700714799
|
[1] |
SWITCH
|
CAS
rocker
|
| 12. |
700132706
|
[1] |
SUPPORT
|
HFI
MOUNT switch
|
| 13. |
700132408
|
[1] |
MOUNTING PARTS
|
CAS
|
| 14. |
409-7524
|
[1] |
BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl
|
CAS
hex flange serrated, 5/16-18 x 1-1/2 Superseded by part number: 86512170
|
| 15. |
700132707
|
[1] |
SUPPORT
|
HFI
MOUNT
|
| 16. |
700714802
|
[1] |
CUP
|
CAS
suction
|
| 17. |
700719539
|
[1] |
HARNESS
|
HFI
wire
|
| 18. |
727768
|
[1] |
GROMMET
|
CAS
|
| 19. |
700719353
|
[1] |
HARNESS
|
HFI
wire
|
| 20. |
700706610
|
[1] |
CARTRIDGE
|
L
CARTRIDGE
|
| 21. |
700706151
|
[1] |
NUT
|
CAS
hex Superseded by part number: 87033382
|
| 22. |
700707215
|
[1] |
SEAL KIT
|
IH
seal
|
| 23. |
700720041
|
[1] |
SOLENOID
|
CAS
12V Superseded by part number: 1340843C1
|
