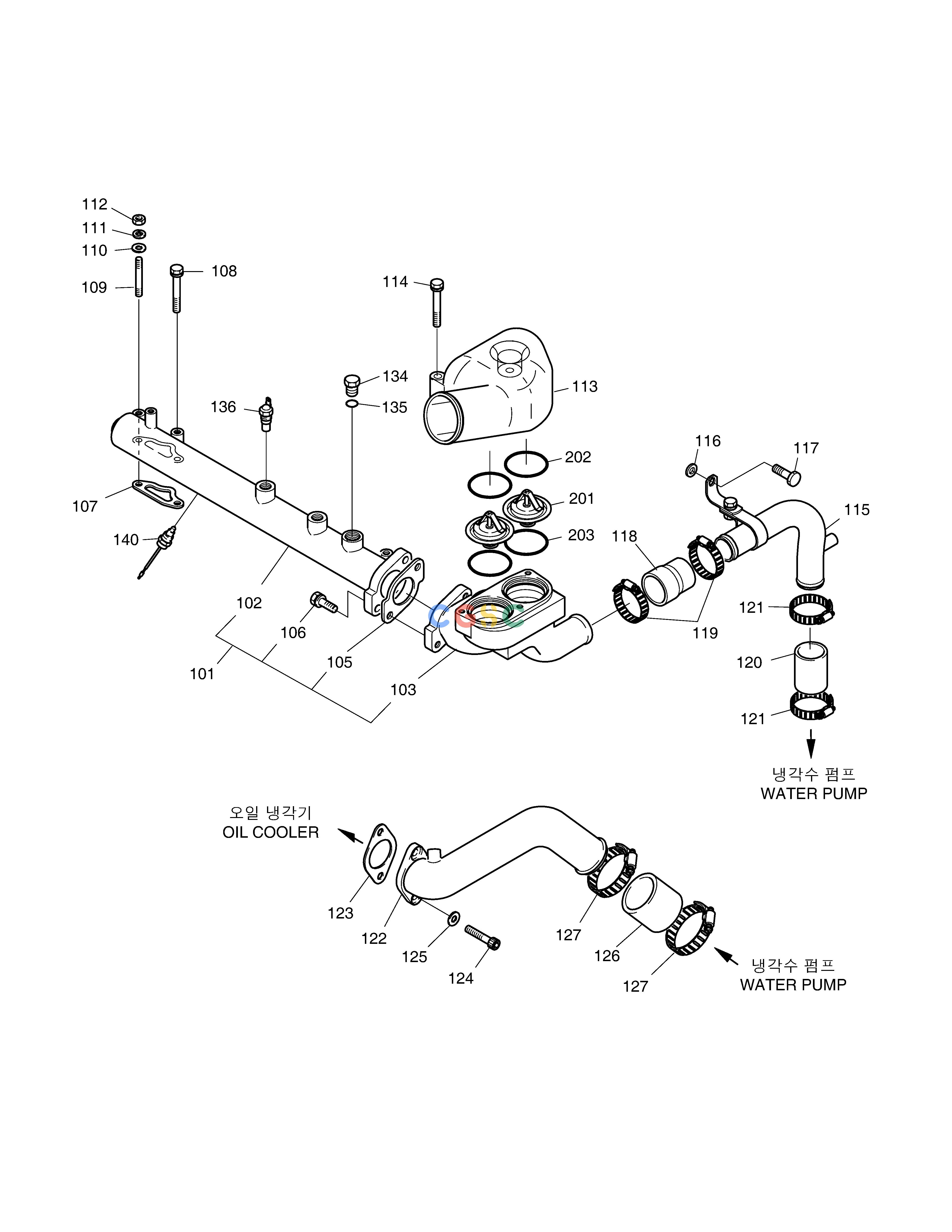

斗山零件查询COOLING SYSTEM MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.06301-6084B
|
[1] |
|
|
| 102. |
65.06301-0240A
|
[1] |
|
|
| 103. |
65.06404-0021B
|
[1] |
HOUSING;THERMOSTAT
|
|
| 105. |
65.06903-0021A
|
[1] |
|
|
| 106. |
06.01923-3218
|
[2] |
BOLT ASS`Y M10X35
|
|
| 107. |
65.06903-0028
|
[2] |
GASKET;COOLING WATER PIPE
|
|
| 108. |
06.01923-3124
|
[2] |
BOLT ASS`Y M8X65
|
|
| 109. |
65.90201-0064
|
[2] |
BOLT;STUD M8X60
|
|
| 110. |
06.15010-2311
|
[2] |
WASHER
|
|
| 111. |
06.16731-2107
|
[2] |
WASHER
|
|
| 112. |
06.11063-8214
|
[2] |
. NUT
|
|
| 113. |
65.06405-0028
|
[1] |
OUTLET;WATER
|
|
| 114. |
06.01923-3124
|
[3] |
BOLT ASS`Y M8X65
|
|
| 115. |
65.06301-6072
|
[1] |
PIPE;BY-PASS
|
|
| 116. |
65.90710-0019
|
[1] |
WASHER
|
|
| 117. |
06.01923-3218
|
[1] |
BOLT ASS`Y M10X35
|
|
| 118. |
65.96301-0204B
|
[1] |
HOSE;RUBBER
|
|
| 119. |
06.67020-0108
|
[2] |
CLAMP;HOSE
|
|
| 120. |
04.27405-1506
|
[1] |
HOSE;RUBBER
|
|
| 121. |
06.67020-0108
|
[2] |
CLAMP;HOSE
|
|
| 122. |
65.06301-0675
|
[1] |
PIPE
|
|
| 123. |
65.06903-0020
|
[1] |
GASKET
|
|
| 124. |
06.02090-0513
|
[2] |
BOLT;SOCKET HEAD
|
|
| 125. |
06.15010-2312
|
[2] |
WASHER;PLAIN
|
|
| 126. |
65.96301-0205A
|
[1] |
HOSE;RUBBER
|
|
| 127. |
06.67020-0110
|
[2] |
CLAMP;HOSE
|
|
| 134. |
06.08092-2408
|
[1] |
SCREW;PLUG
|
|
| 135. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
| 136. |
66.27435-6008
|
[1] |
SWITCH;THERMO
|
|
| 140. |
65.27435-6003
|
[1] |
SWITCH;WATER TEMP
|
|
| 201. |
65.06402-0006
|
[2] |
THERMOSTAT
|
|
| 202. |
06.56342-1208
|
[2] |
O-RING
|
|
| 203. |
65.06901A0069
|
[2] |
GASKET
|
|
