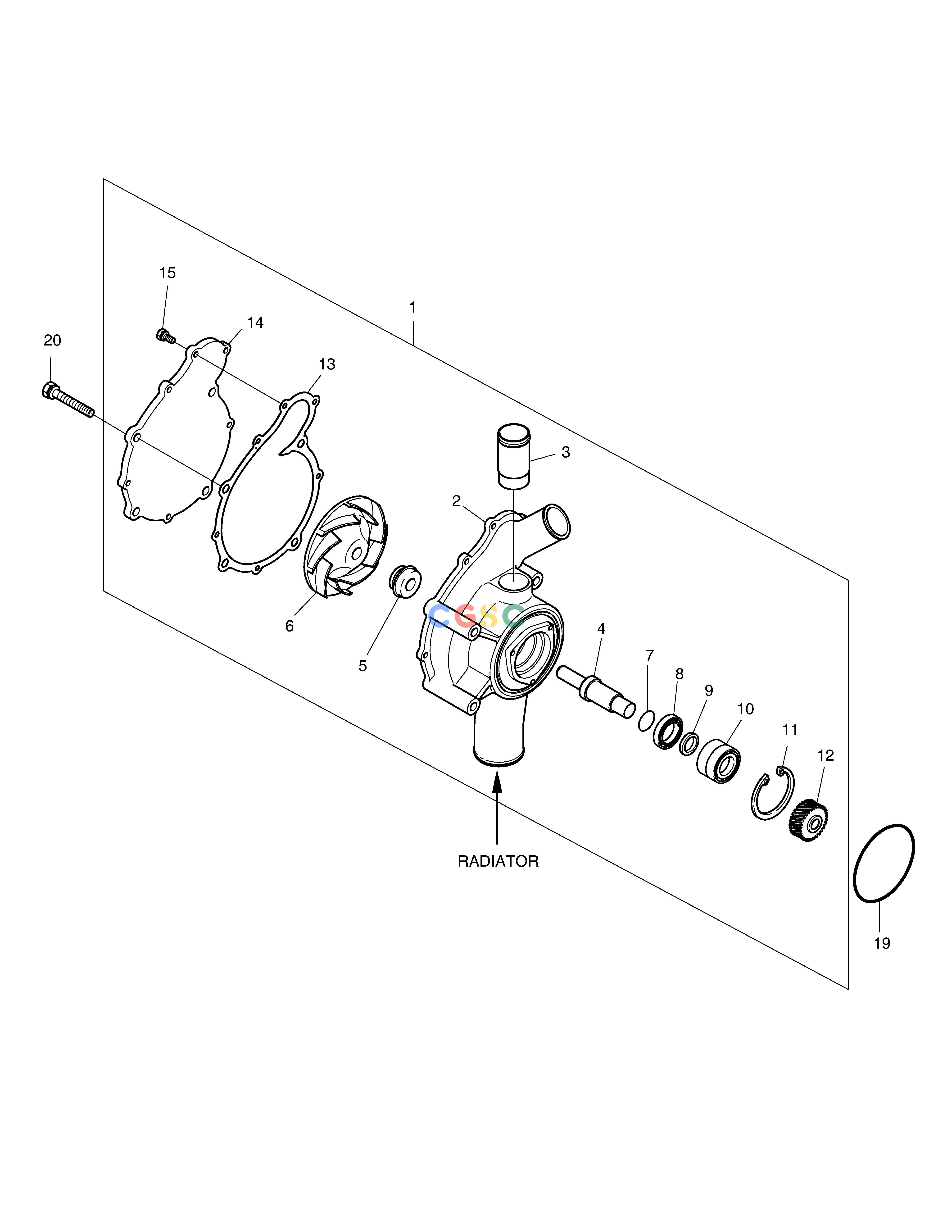

斗山零件查询COOLING WATER PUMP MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06500-6357C
|
[1] |
WATER PUMP ASS'Y
|
|
| 10. |
65.93410-0038
|
[1] |
BEARING
|
|
| 11. |
06.29020-0131
|
[1] |
RING;SNAP;RING 52X2
|
|
| 12. |
65.06507-0005A
|
[1] |
GEAR;WATER PUMP DRIVE
|
|
| 13. |
65.06901-0076
|
[1] |
GASKET
|
|
| 14. |
65.06512-0014A
|
[1] |
COVER
|
|
| 15. |
06.01913-2914
|
[5] |
BOLT ASS'Y M6X22
|
|
| 19. |
65.96501-0068
|
[1] |
O-RING
|
|
| 2. |
65.06501-0092
|
[1] |
HOUSING;WATER PUMP
|
|
| 20. |
06.01913-3234
|
[4] |
BOLT ASS`Y M10X130
|
|
| 3. |
65.06301-0058
|
[1] |
PIPE;COOLING WATER
|
|
| 4. |
65.06505-0027
|
[1] |
SHAFT
|
|
| 5. |
65.06520-6008
|
[1] |
. SEAL;MECHANICAL
|
|
| 6. |
65.06506-0027
|
[1] |
IMPELLER
|
|
| 7. |
65.01510-0103
|
[1] |
SEAL;OIL
|
|
| 8. |
06.31420-4513
|
[1] |
BEARING;BALL
|
|
| 9. |
65.06508-0012
|
[1] |
SPACER
|
|
