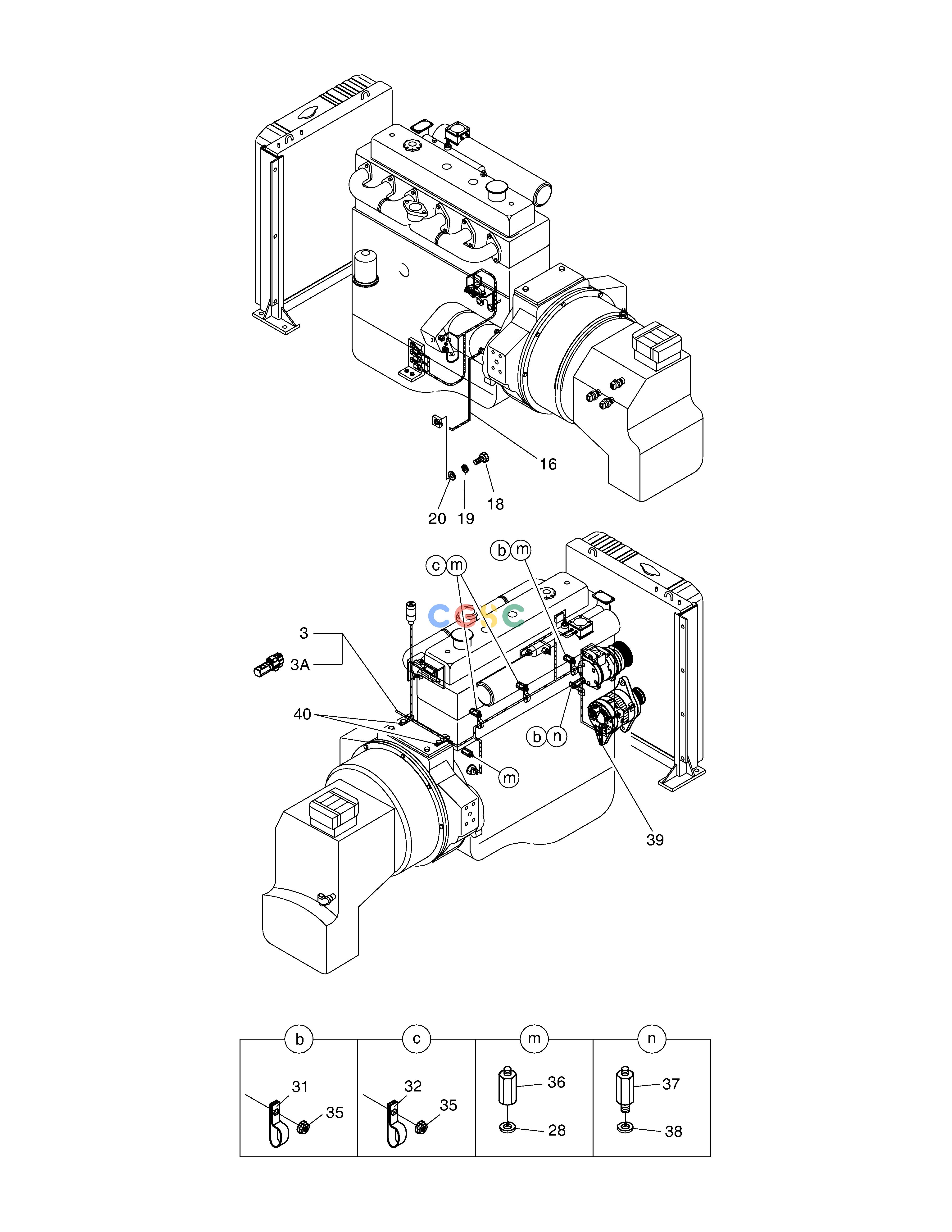

斗山零件查询ELECTRIC WIRING(2) - ENGINE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
433 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00036
|
[-] |
ELECTRIC PARTS(3)
|
|
| -. |
300619-00217
|
[-] |
|
|
| 16. |
2553-1261D30
|
[1] |
CABLE;ENGINE-EARTH
|
|
| 18. |
S0511653
|
[1] |
BOLT
|
|
| 19. |
S5102603
|
[1] |
. WASHER
|
|
| 20. |
S5010613
|
[1] |
WASHER
|
|
| 28. |
S5102503
|
[4] |
. WASHER
|
|
| 3. |
530-00073B
|
[1] |
HARNESS;ENGINE
|
|
| 3. |
310207-01233
|
[1] |
|
|
| 31. |
2124-1509D2
|
[2] |
CLIP
|
|
| 32. |
2124-1509D3
|
[2] |
CLIP D24/M8
|
|
| 35. |
2121-1305
|
[4] |
NUT
|
|
| 36. |
2120-2187
|
[4] |
BOLT
|
|
| 37. |
2120-2185A
|
[1] |
BOLT;STUD M12X1.5X15/M8
|
|
| 38. |
S5102703
|
[1] |
WASHER
|
|
| 39. |
2124-1353D8
|
[1] |
CLIP D22/M12
|
|
| 3A. |
2548-1027
|
[1] |
DIODE
|
|
| 3B. |
300803-00086
|
[1] |
|
|
| 40. |
2124-1353D13
|
[2] |
CLIP
|
|
