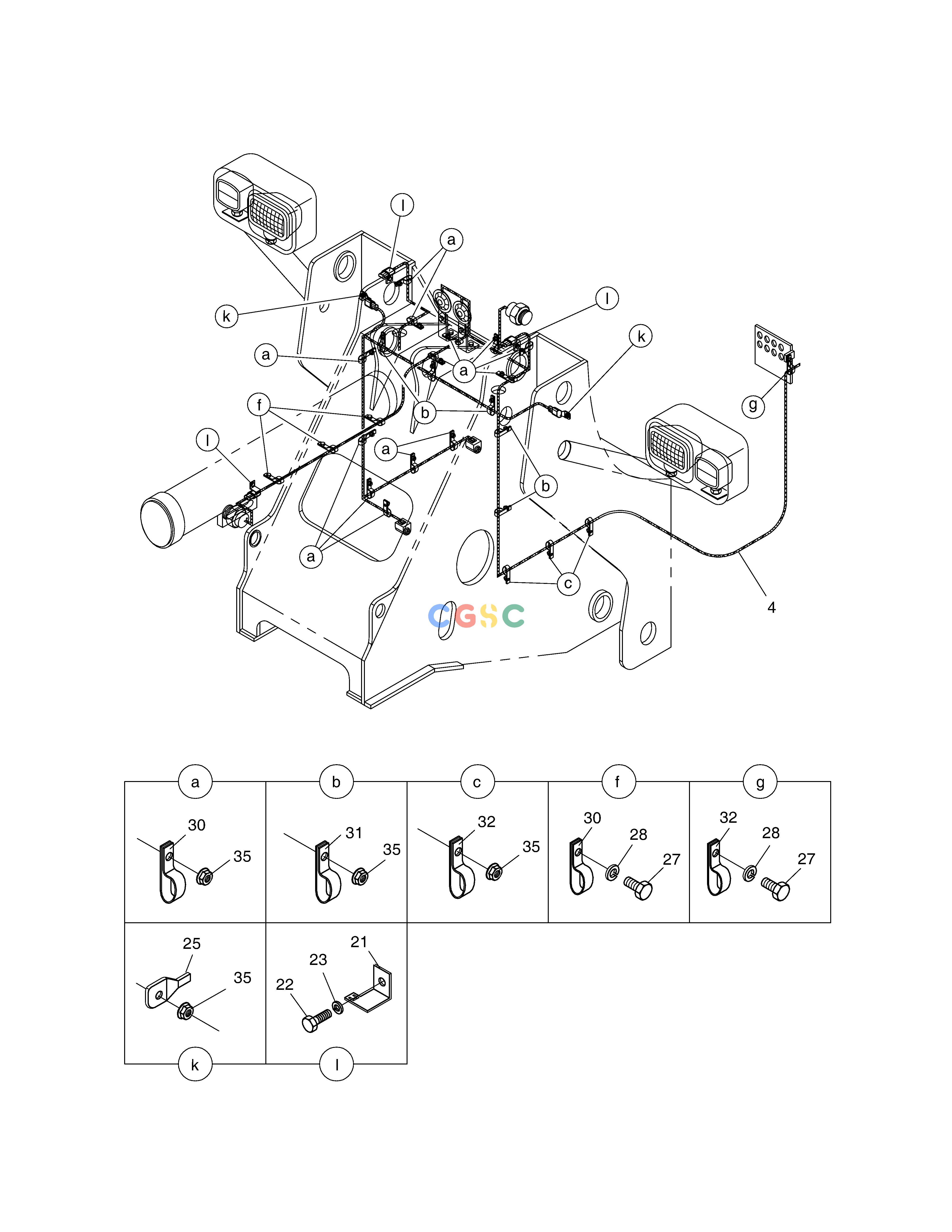

斗山零件查询ELECTRIC WIRING(3) - FRONT FRAME MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
901 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00036
|
[-] |
ELECTRIC PARTS(3)
|
|
| -. |
300619-00217
|
[-] |
|
|
| 21. |
2195-3500
|
[3] |
BRACKET
|
|
| 22. |
S0504453
|
[3] |
BOLT
|
|
| 23. |
S5102303
|
[3] |
. WASHER
|
|
| 25. |
2197-1661
|
[2] |
BRACKET
|
|
| 27. |
S0508653
|
[4] |
BOLT
|
|
| 28. |
S5102503
|
[4] |
. WASHER
|
|
| 30. |
2124-1509D1
|
[16] |
CLIP
|
|
| 31. |
2124-1509D2
|
[5] |
CLIP
|
|
| 32. |
2124-1509D3
|
[4] |
CLIP D24/M8
|
|
| 35. |
2121-1305
|
[23] |
NUT
|
|
| 4. |
530-00445
|
[1] |
HARNESS;FRONT FRAME
|
|
| 4. |
310207-01173
|
[1] |
|
|
