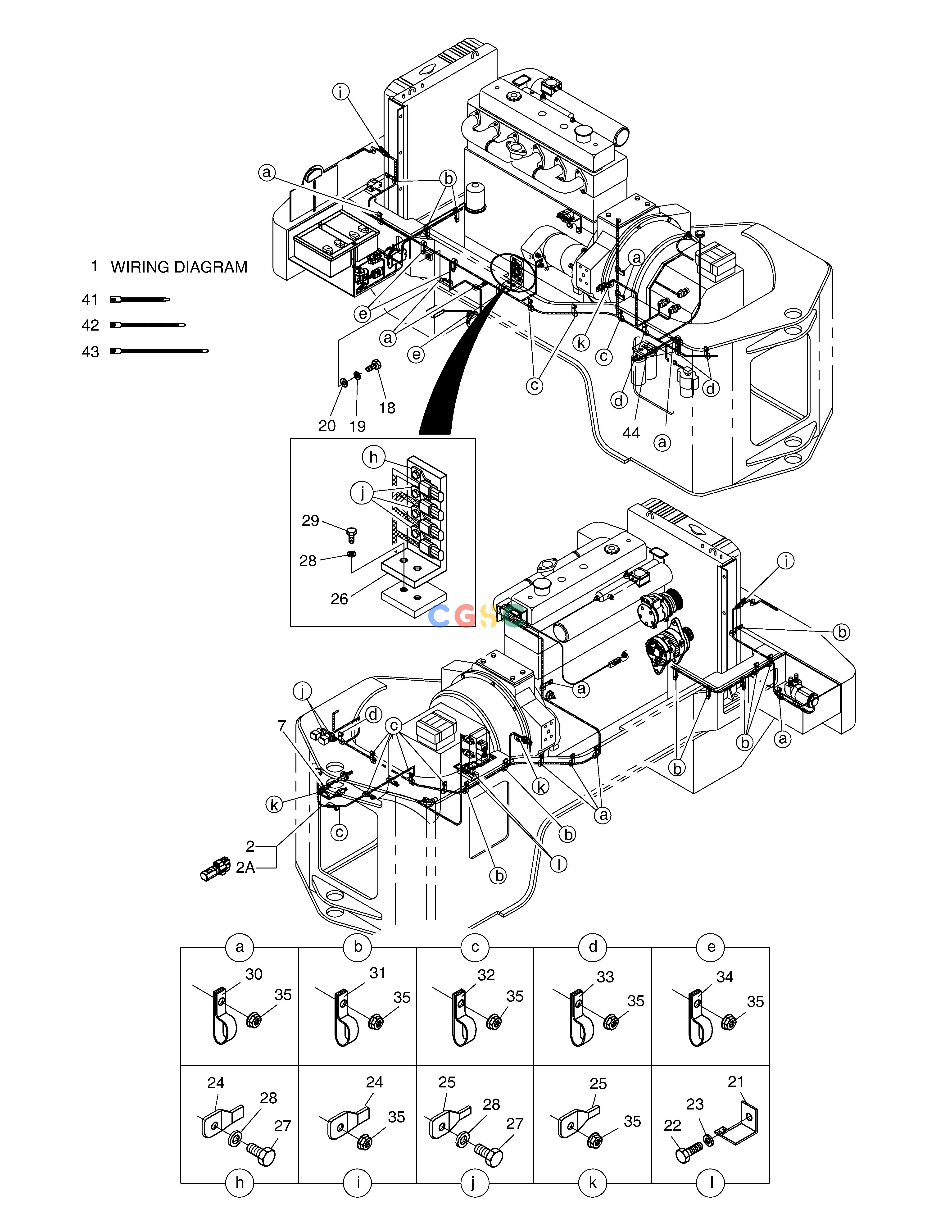

斗山零件查询ELECTRIC WIRING(4) - RELATED PARTS MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
844 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00036A
|
[-] |
ELECTRIC PARTS(3)
|
|
| -. |
300619-00217
|
[-] |
|
|
| 1. |
599-00017E
|
[1] |
WIRING DIAGRAM
|
|
| 18. |
S0511653
|
[1] |
BOLT
|
|
| 19. |
S5102603
|
[1] |
. WASHER
|
|
| 2. |
530-00072K
|
[1] |
HARNESS;MAIN
|
|
| 2. |
310207-00824
|
[1] |
|
|
| 2. |
310207-00824A
|
[1] |
|
|
| 20. |
S5010613
|
[1] |
WASHER
|
|
| 21. |
2195-3500
|
[2] |
BRACKET
|
|
| 22. |
S0504453
|
[2] |
BOLT
|
|
| 23. |
S5102303
|
[2] |
. WASHER
|
|
| 24. |
2197-1660
|
[3] |
BRACKET
|
|
| 25. |
2197-1661
|
[8] |
BRACKET
|
|
| 26. |
4197-2051
|
[1] |
BRACKET;CONNECTOR
|
|
| 27. |
S0508653
|
[6] |
BOLT
|
|
| 28. |
S5102503
|
[8] |
. WASHER
|
|
| 29. |
S0508853
|
[2] |
. BOLT
|
|
| 2A. |
2548-1027
|
[8] |
DIODE
|
|
| 30. |
2124-1509D1
|
[11] |
CLIP
|
|
| 31. |
2124-1509D2
|
[11] |
CLIP
|
|
| 32. |
2124-1509D3
|
[8] |
CLIP D24/M8
|
|
| 33. |
2124-1509D4
|
[4] |
CLIP D30/M8
|
|
| 34. |
2124-1509D6
|
[3] |
CLIP D42/M8
|
|
| 35. |
2121-1305
|
[42] |
NUT
|
|
| 41. |
2124-1622D1
|
[10] |
CLIP,BAND
|
|
| 42. |
2124-1622D2
|
[30] |
CLIP
|
|
| 43. |
2124-1622D3
|
[10] |
CLIP;BAND 280L
|
|
| 44. |
2124-1509D9
|
[1] |
CLIP
|
|
| 7. |
530-00067
|
[1] |
HARNESS
|
|
