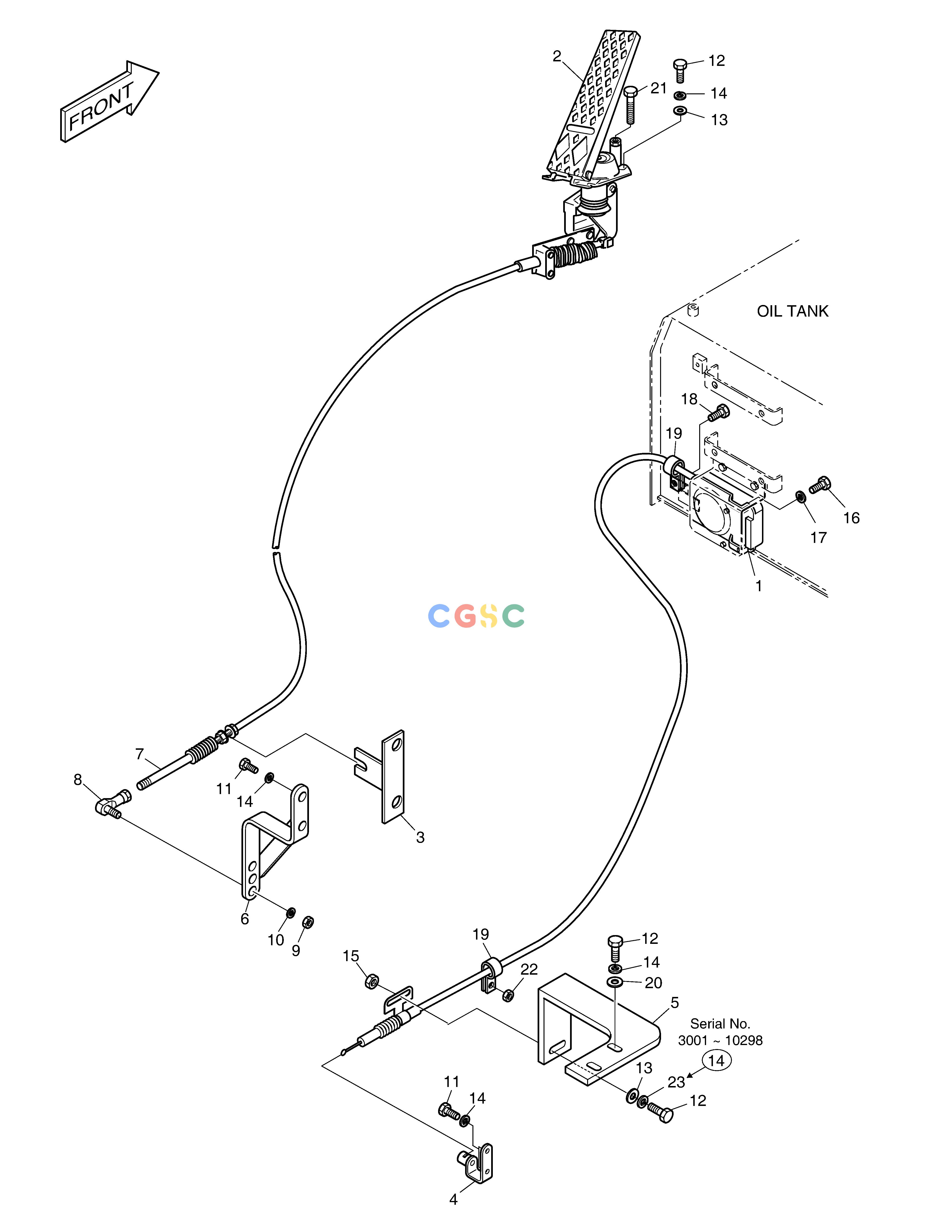

斗山零件查询ENGINE CONTROL ASS'Y MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150126-00065
|
[-] |
|
|
| -. |
201-00045A
|
[-] |
ENGINE CONTROL
|
|
| 1. |
2523-9016
|
[1] |
MOTOR,E/G STOP
|
|
| 10. |
S5100203
|
[1] |
WASHER
|
|
| 11. |
S0504453
|
[4] |
BOLT
|
|
| 12. |
S0504853
|
[6] |
BOLT M6X1.0X20
|
|
| 13. |
S5010313
|
[4] |
WASHER
|
|
| 14. |
S5102303
|
[9] |
. WASHER
|
|
| 14. |
S5102303
|
[10] |
. WASHER
|
|
| 15. |
S4012333
|
[1] |
NUT
|
|
| 16. |
S0508853
|
[2] |
. BOLT
|
|
| 17. |
S5010513
|
[2] |
WASHER
|
|
| 18. |
S0508453
|
[1] |
BOLT
|
|
| 19. |
2124-1353D1
|
[2] |
CLIP
|
|
| 2. |
134-00028
|
[1] |
PEDAL ASS'Y
|
|
| 20. |
2114-1058D52
|
[2] |
WASHER
|
|
| 21. |
S0509853
|
[1] |
BOLT M8X1.25X60
|
|
| 22. |
S4012533
|
[1] |
NUT
|
|
| 23. |
120810-00145
|
[1] |
WASHER,PLAIN
|
|
| 3. |
4197-1730A
|
[1] |
BRACKET
|
|
| 4. |
K1015745
|
[1] |
BRACKET
|
|
| 5. |
195-02051A
|
[1] |
BRACKET
|
|
| 6. |
195-01069
|
[1] |
BRACKET
|
|
| 7. |
139-00022D1
|
[1] |
CABLE;CONTROL
|
|
| 8. |
2138-9006B
|
[1] |
JOINT,BALL
|
|
| 9. |
S4012233
|
[1] |
NUT
|
|
