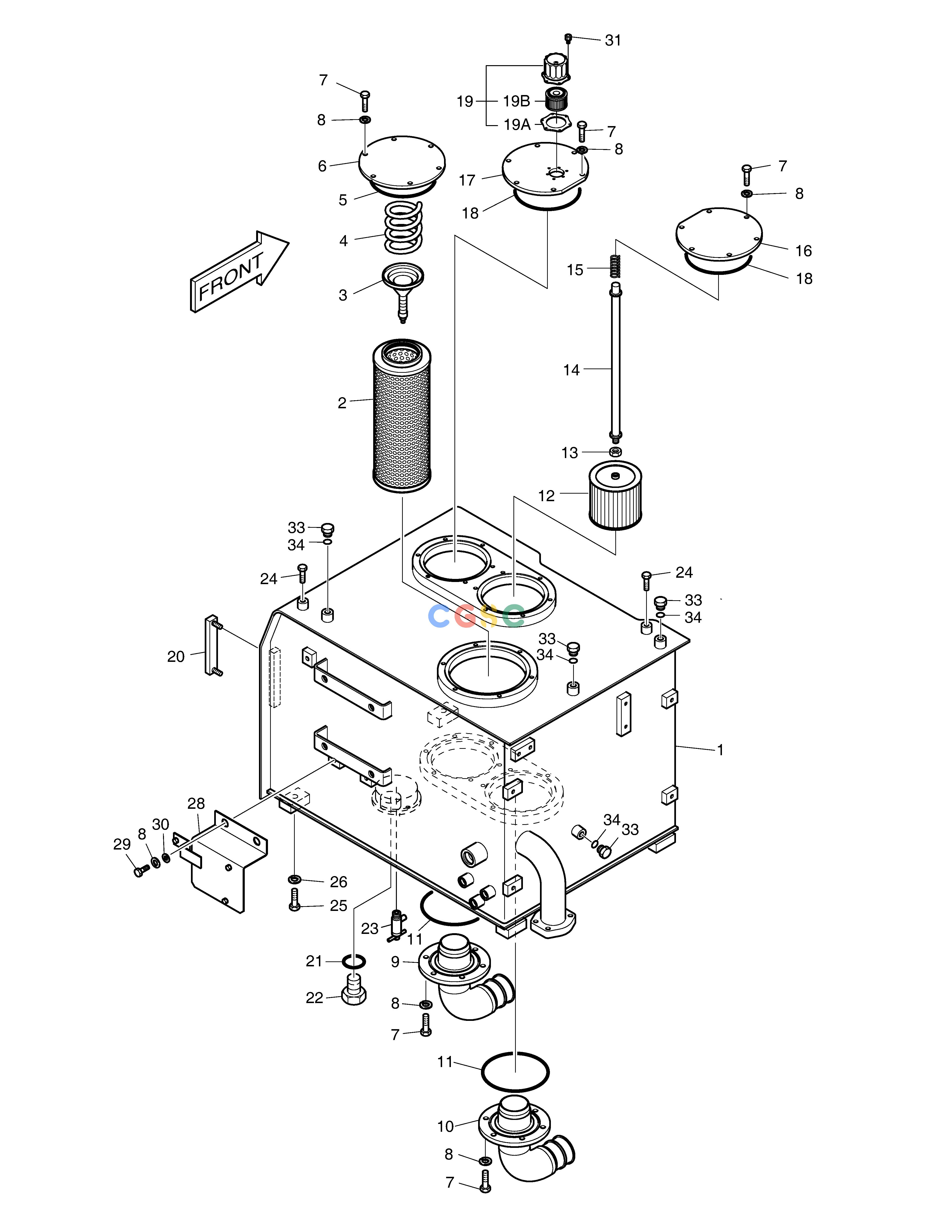

斗山零件查询OIL TANK MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450105-00101
|
[-] |
|
|
| 1. |
450105-00099
|
[1] |
|
|
| 10. |
140-00217A
|
[1] |
PIPE;SUCTION
|
|
| 11. |
S8011200
|
[2] |
O-RING
|
|
| 12. |
2474-9016A
|
[2] |
FILTER,SUCTION
|
|
| 13. |
S4012733
|
[2] |
NUT
|
|
| 14. |
136-00017
|
[2] |
ROD
|
|
| 15. |
2129-1008
|
[2] |
SPRING,COMPRESS
|
|
| 16. |
473-00017
|
[1] |
COVER
|
|
| 17. |
473-00016
|
[1] |
COVER
|
|
| 18. |
S8011650
|
[2] |
O-RING
|
|
| 19. |
K1012685A
|
[1] |
BREATHER;AIR
|
|
| 19A. |
K9005662
|
[1] |
. GASKET
|
|
| 19B. |
K1029257
|
[1] |
ELEMENT;AIR BREATHER
|
|
| 2. |
2471-9051B
|
[1] |
ELEMENT;FILTER
|
|
| 20. |
2119-1007
|
[1] |
GAUGE;LEVEL
|
|
| 21. |
S8000291
|
[1] |
O-RING
|
|
| 22. |
2181-1950D9
|
[1] |
PLUG
|
|
| 23. |
2186-9005
|
[1] |
COCK
|
|
| 24. |
S0514653
|
[2] |
BOLT M12X1.75X16
|
|
| 25. |
S0521251
|
[4] |
BOLT M16X2.0X30
|
|
| 26. |
2114-1816A
|
[4] |
WASHER
|
|
| 28. |
195-01023B
|
[1] |
BRACKET;COVER
|
|
| 29. |
S0511853
|
[2] |
BOLT
|
|
| 3. |
2426-1175
|
[1] |
VALVE;BY-PASS
|
|
| 30. |
S5010613
|
[2] |
WASHER
|
|
| 31. |
S2202766
|
[6] |
BOLT
|
|
| 33. |
2181-1890D2
|
[4] |
PLUG
|
|
| 34. |
S8000111
|
[4] |
O-RING
|
|
| 4. |
2129-1393
|
[1] |
SPRING
|
|
| 5. |
S8012000
|
[1] |
O-RING
|
|
| 6. |
2473-1080A
|
[1] |
COVER
|
|
| 7. |
S0512053
|
[30] |
BOLT
|
|
| 8. |
S5102603
|
[32] |
. WASHER
|
|
| 9. |
140-00215A
|
[1] |
PIPE;SUCTION
|
|
