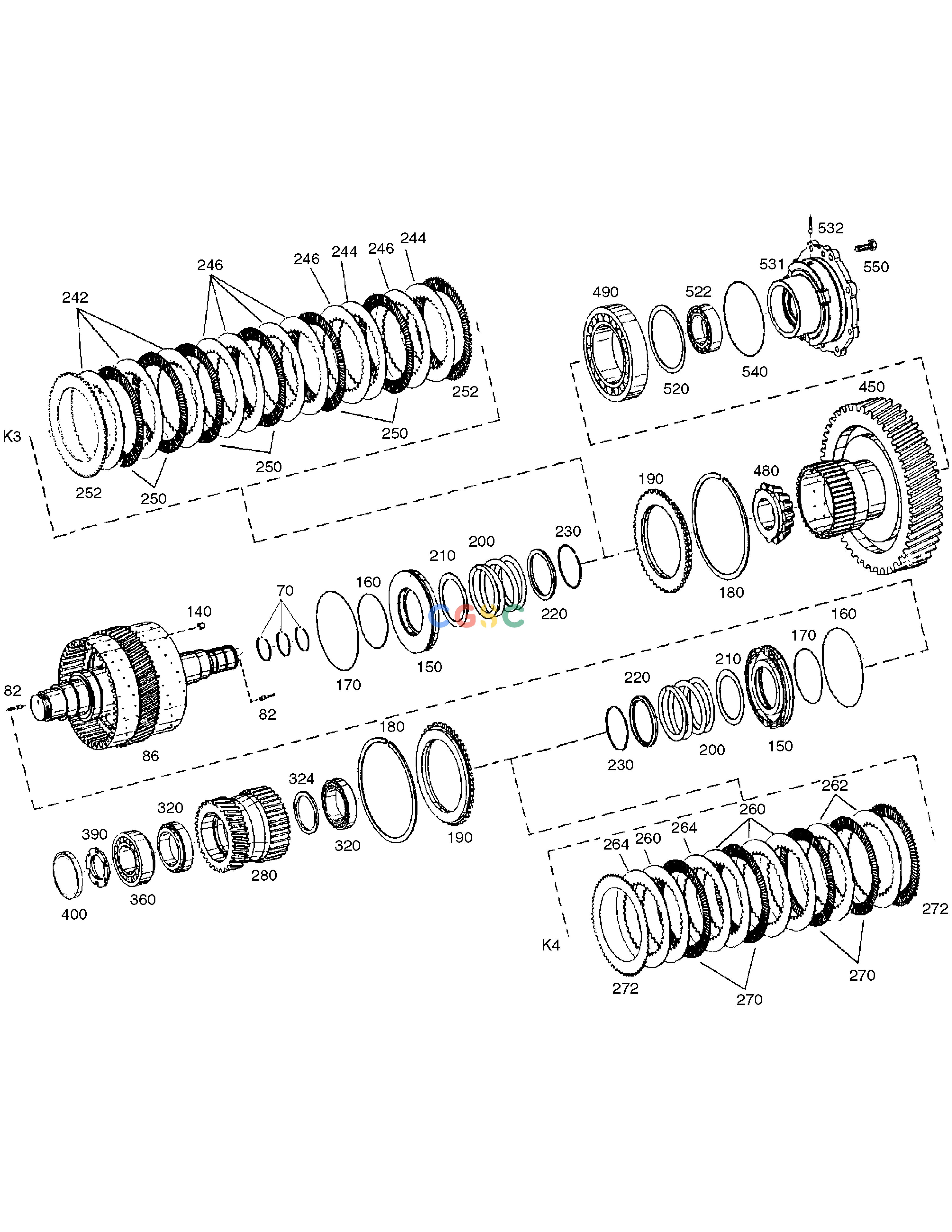

斗山零件查询COUPLING K3/K4 - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000141
|
[1] |
COUPLING K3/K4
|
|
| 140. |
1.420-00008
|
[2] |
VALVE
|
|
| 150. |
2.409-00238
|
[2] |
PISTON
|
|
| 160. |
1.180-00096
|
[2] |
O-RING
|
|
| 170. |
1.180-00097
|
[2] |
O-RING
|
|
| 180. |
1.115-00070
|
[2] |
RING;SNAP A=2.45
|
|
| 180. |
1.115-00071
|
[2] |
RING;SNAP A=2.55
|
|
| 180. |
1.115-00073
|
[2] |
RING;SNAP A=2.60
|
|
| 180. |
1.115-00074
|
[2] |
RING;SNAP A=2.65
|
|
| 180. |
1.115-00075
|
[2] |
RING;SNAP A=2.70
|
|
| 180. |
1.115-00076
|
[2] |
RING;SNAP A=2.75
|
|
| 180. |
1.115-00077
|
[2] |
RING;SNAP A=2.80
|
|
| 180. |
1.115-00078
|
[2] |
RING;SNAP A=2.85
|
|
| 180. |
1.115-00079
|
[2] |
RING;SNAP A=2.90
|
|
| 180. |
1.115-00317
|
[2] |
RING;SNAP A=3.00
|
|
| 180. |
1.115-00357
|
[2] |
RING;SNAP A=3.05
|
|
| 180. |
1.115-00358
|
[2] |
RING;SNAP A=3.10
|
|
| 180. |
2.115-00318
|
[2] |
RING;SNAP A=2.95
|
|
| 180. |
2.115-00504
|
[2] |
RING;SNAP A=2.1
|
|
| 180. |
2.115-00505
|
[2] |
RING;SNAP A=2.15
|
|
| 180. |
2.115-00506
|
[2] |
RING;SNAP A=2.25
|
|
| 180. |
2.115-00507
|
[2] |
RING;SNAP A=2.35
|
|
| 190. |
K9000090
|
[2] |
SHIM;END
|
|
| 200. |
2.131-00292
|
[2] |
SPRING;COMPR.
|
|
| 210. |
2.114-01321
|
[2] |
WASHER
|
|
| 220. |
2.115-00494
|
[2] |
RING;GUIDE
|
|
| 230. |
2.115-00366
|
[2] |
RING;SNAP
|
|
| 242. |
1.114-00172
|
[3] |
DISC;I.CLUTCH B=4.0
|
|
| 244. |
1.114-00170
|
[2] |
DISC;I. CLUTCH B=3.0
|
|
| 244. |
1.114-00171
|
[2] |
DISC;I. CLUTCH B=3.5
|
|
| 244. |
1.114-00172
|
[2] |
DISC;I.CLUTCH B=4.0
|
|
| 244. |
2.222-00043
|
[2] |
DISC;I.CLUTCH B=2.5
|
|
| 246. |
2.222-00043
|
[6] |
DISC;I.CLUTCH B=2.5
|
|
| 250. |
2.222-00047
|
[6] |
DISC;O.CLUTCH
|
|
| 252. |
2.222-00048
|
[2] |
DISC;O.CLUTCH
|
|
| 260. |
2.222-00043
|
[4] |
DISC;I.CLUTCH B=2.5
|
|
| 262. |
1.114-00172
|
[2] |
DISC;I.CLUTCH B=4.0
|
|
| 264. |
1.114-00170
|
[2] |
DISC;I. CLUTCH B=3.0
|
|
| 264. |
1.114-00171
|
[2] |
DISC;I. CLUTCH B=3.5
|
|
| 264. |
1.114-00172
|
[2] |
DISC;I.CLUTCH B=4.0
|
|
| 264. |
2.222-00043
|
[2] |
DISC;I.CLUTCH B=2.5
|
|
| 270. |
2.222-00047
|
[4] |
DISC;O.CLUTCH
|
|
| 272. |
2.222-00048
|
[2] |
DISC;O.CLUTCH
|
|
| 280. |
K9000095
|
[1] |
GEAR;HELICAL
|
|
| 320. |
K9000102
|
[2] |
BEARING;TAPER ROLLER
|
|
| 324. |
2.114-01232
|
[1] |
WASHER
|
|
| 360. |
1.109-00074
|
[1] |
BEARING;ROLLER
|
|
| 390. |
K9000108
|
[1] |
NUT;SLOTTED
|
|
| 400. |
2.430-00427
|
[1] |
COVER
|
|
| 450. |
K9000094
|
[1] |
GEAR;SPUR
|
|
| 480. |
2.109-00312
|
[1] |
BEARING;ROLLER
|
|
| 490. |
2.109-00317
|
[1] |
BEARING;ROLLER
|
|
| 520. |
2.114-01268
|
[1] |
WASHER;SPACING A=0.10
|
|
| 520. |
2.114-01269
|
[1] |
WASHER;SPACING A=0.20
|
|
| 520. |
2.114-01271
|
[1] |
WASHER;SPACING A=0.50
|
|
| 520. |
2.114-01274
|
[1] |
WASHER;SPACING A=1.50
|
|
| 520. |
2.114-01275
|
[1] |
WASHER;SPACING A=1.55
|
|
| 520. |
2.114-01276
|
[1] |
WASHER;SPACING A=1.60
|
|
| 520. |
2.114-01277
|
[1] |
WASHER;SPACING A=1.65
|
|
| 520. |
2.114-01278
|
[1] |
WASHER;SPACING A=1.70
|
|
| 520. |
2.114-01279
|
[1] |
WASHER;SPACING A=1.75
|
|
| 520. |
2.114-01280
|
[1] |
WASHER;SPACING A=1.80
|
|
| 522. |
2.109-00320
|
[1] |
BEARING;ROLLER
|
|
| 531. |
K9000096
|
[1] |
COVER
|
|
| 532. |
K9000032
|
[2] |
PLUG
|
|
| 540. |
2.180-01097
|
[1] |
O-RING
|
|
| 550. |
2.120-00580
|
[8] |
SCREW
|
|
| 70. |
1.115-00302
|
[3] |
RING;PISTON
|
|
| 82. |
K9000032
|
[3] |
PLUG
|
|
| 86. |
K9000149
|
[1] |
CARRIER;DISC
|
|
