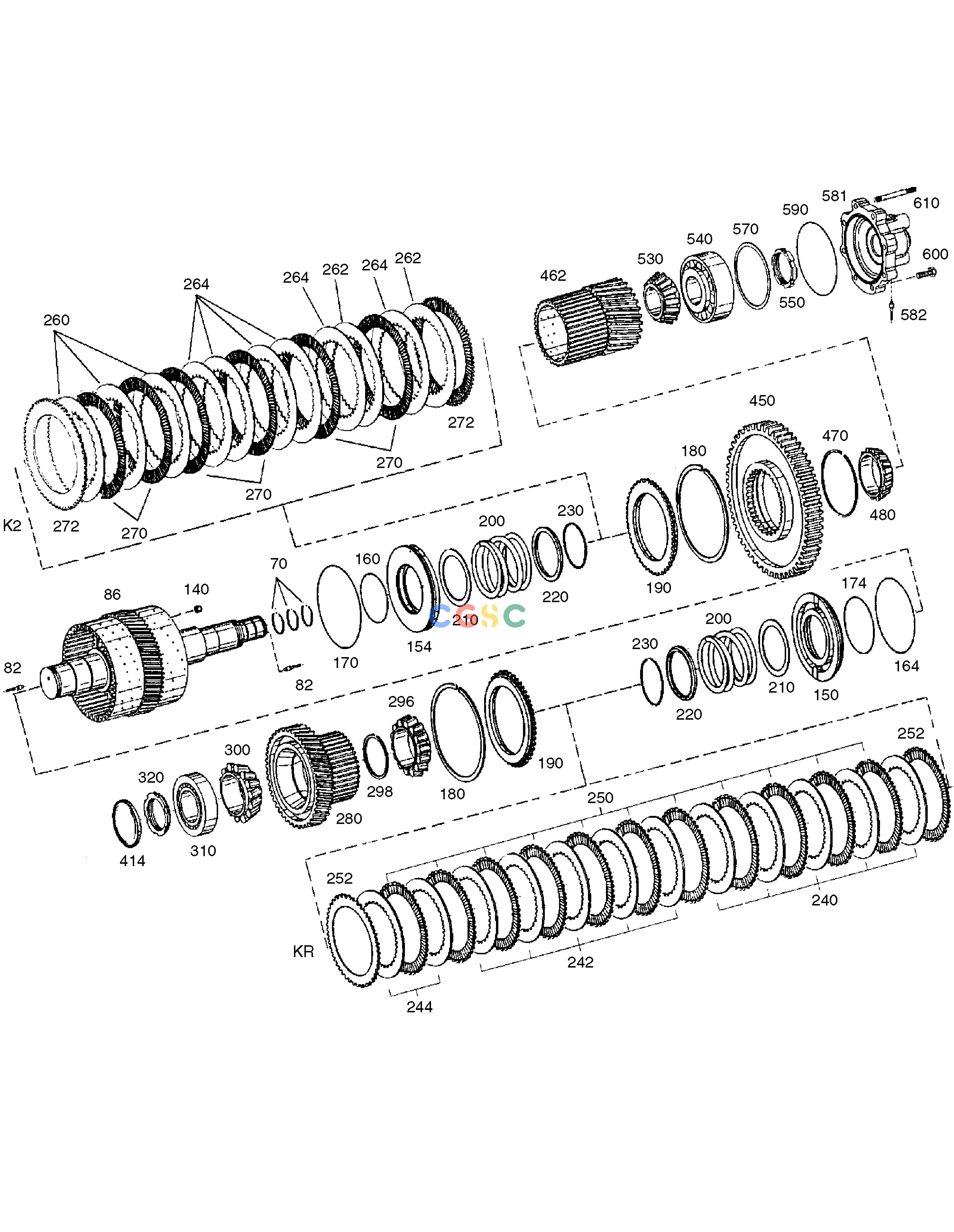

斗山零件查询COUPLING KR/K2 - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
818 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000140
|
[1] |
COUPLING KR/K2
|
|
| 140. |
1.420-00008
|
[2] |
VALVE
|
|
| 150. |
2.409-00230
|
[1] |
PISTON
|
|
| 154. |
2.409-00238
|
[1] |
PISTON
|
|
| 160. |
1.180-00096
|
[1] |
O-RING
|
|
| 164. |
1.180-00095
|
[1] |
O-RING
|
|
| 170. |
1.180-00097
|
[1] |
O-RING
|
|
| 174. |
1.180-00098
|
[1] |
O-RING
|
|
| 180. |
1.115-00070
|
[2] |
RING;SNAP A=2.45
|
|
| 180. |
1.115-00071
|
[2] |
RING;SNAP A=2.55
|
|
| 180. |
1.115-00073
|
[2] |
RING;SNAP A=2.60
|
|
| 180. |
1.115-00074
|
[2] |
RING;SNAP A=2.65
|
|
| 180. |
1.115-00075
|
[2] |
RING;SNAP A=2.70
|
|
| 180. |
1.115-00076
|
[2] |
RING;SNAP A=2.75
|
|
| 180. |
1.115-00077
|
[2] |
RING;SNAP A=2.80
|
|
| 180. |
1.115-00078
|
[2] |
RING;SNAP A=2.85
|
|
| 180. |
1.115-00079
|
[2] |
RING;SNAP A=2.90
|
|
| 180. |
1.115-00317
|
[2] |
RING;SNAP A=3.00
|
|
| 180. |
1.115-00357
|
[2] |
RING;SNAP A=3.05
|
|
| 180. |
1.115-00358
|
[2] |
RING;SNAP A=3.10
|
|
| 180. |
2.115-00318
|
[2] |
RING;SNAP A=2.95
|
|
| 180. |
2.115-00504
|
[2] |
RING;SNAP A=2.1
|
|
| 180. |
2.115-00505
|
[2] |
RING;SNAP A=2.15
|
|
| 180. |
2.115-00506
|
[2] |
RING;SNAP A=2.25
|
|
| 180. |
2.115-00507
|
[2] |
RING;SNAP A=2.35
|
|
| 190. |
K9000090
|
[2] |
SHIM;END
|
|
| 200. |
2.131-00292
|
[2] |
SPRING;COMPR.
|
|
| 210. |
2.114-01321
|
[2] |
WASHER
|
|
| 220. |
2.115-00494
|
[2] |
RING;GUIDE
|
|
| 230. |
2.115-00366
|
[2] |
RING;SNAP
|
|
| 240. |
K9000036
|
[5] |
DISC;I.CLUTCH B=2.5
|
|
| 242. |
K9000037
|
[5] |
DISC;I.CLUTCH B=3.0
|
|
| 244. |
K9000036
|
[2] |
DISC;I.CLUTCH B=2.5
|
|
| 250. |
K9000013
|
[11] |
DISC;O. CLUTCH
|
|
| 252. |
2.222-00048
|
[2] |
DISC;O.CLUTCH
|
|
| 260. |
1.114-00172
|
[3] |
DISC;I.CLUTCH B=4.0
|
|
| 262. |
1.114-00170
|
[2] |
DISC;I. CLUTCH B=3.0
|
|
| 262. |
1.114-00171
|
[2] |
DISC;I. CLUTCH B=3.5
|
|
| 262. |
1.114-00172
|
[2] |
DISC;I.CLUTCH B=4.0
|
|
| 262. |
2.222-00043
|
[2] |
DISC;I.CLUTCH B=2.5
|
|
| 264. |
2.222-00043
|
[6] |
DISC;I.CLUTCH B=2.5
|
|
| 270. |
2.222-00047
|
[6] |
DISC;O.CLUTCH
|
|
| 272. |
2.222-00048
|
[2] |
DISC;O.CLUTCH
|
|
| 280. |
K9000092
|
[1] |
GEAR;SPUR
|
|
| 296. |
K9000104
|
[1] |
BEARING;TAPER ROLLER
|
|
| 298. |
K9000055
|
[1] |
RING
|
|
| 300. |
K9000103
|
[1] |
BEARING;TAPER ROLLER
|
|
| 310. |
2.109-00314
|
[1] |
BEARING;ROLLER
|
|
| 320. |
K9000112
|
[1] |
NUT;SLOTTED
|
|
| 414. |
1.430-00012
|
[1] |
COVER
|
|
| 450. |
K9000049
|
[1] |
GEAR
|
|
| 462. |
K9000093
|
[1] |
GEAR
|
|
| 470. |
2.115-00367
|
[1] |
RING;SNAP
|
|
| 480. |
K9000105
|
[1] |
BEARING;TAPER ROLLER
|
|
| 530. |
K9000106
|
[1] |
BEARING;TAPER ROLLER
|
|
| 540. |
2.109-00309
|
[1] |
BEARING;ROLLER
|
|
| 550. |
K9000111
|
[1] |
NUT;SLOTTED
|
|
| 570. |
2.114-01197
|
[1] |
WASHER S=0.8
|
|
| 570. |
2.114-01199
|
[1] |
WASHER S=0.9
|
|
| 570. |
2.114-01200
|
[1] |
SHIM A=0.95
|
|
| 570. |
2.114-01203
|
[1] |
SHIM A=1.05
|
|
| 570. |
2.114-01205
|
[1] |
SHIM A=1.15
|
|
| 570. |
2.114-01207
|
[1] |
SHIM A=1.25
|
|
| 570. |
2.114-01209
|
[1] |
SHIM A=1.35
|
|
| 570. |
2.114-01211
|
[1] |
SHIM A=1.45
|
|
| 570. |
2.114-01213
|
[1] |
SHIM A=1.55
|
|
| 570. |
2.114-01214
|
[1] |
SHIM A=1.65
|
|
| 570. |
2.114-01215
|
[1] |
SHIM A=1.75
|
|
| 570. |
1.114-00077
|
[1] |
WASHER S=1.0
|
|
| 570. |
1.114-00080
|
[1] |
WASHER S=1.1
|
|
| 570. |
1.114-00088
|
[1] |
WASHER S=1.2
|
|
| 570. |
1.114-00092
|
[1] |
WASHER S=1.3
|
|
| 570. |
1.114-00098
|
[1] |
WASHER S=1.4
|
|
| 570. |
1.114-00105
|
[1] |
WASHER S=1.5
|
|
| 570. |
1.114-00111
|
[1] |
WASHER S=1.6
|
|
| 570. |
1.114-00115
|
[1] |
WASHER S=1.7
|
|
| 570. |
1.114-00117
|
[1] |
WASHER S=1.8
|
|
| 570. |
1.114-00119
|
[1] |
WASHER S=1.9
|
|
| 570. |
1.114-00123
|
[1] |
WASHER S=2.0
|
|
| 581. |
K9000091
|
[1] |
COVER
|
|
| 582. |
K9000032
|
[2] |
PLUG
|
|
| 590. |
1.180-00099
|
[1] |
O-RING
|
|
| 600. |
1.120-00142
|
[6] |
VIS
|
|
| 610. |
2.317-00086
|
[2] |
STUD
|
|
| 70. |
1.115-00302
|
[3] |
RING;PISTON
|
|
| 82. |
K9000032
|
[3] |
PLUG
|
|
| 86. |
K9000148
|
[1] |
CARRIER;DISC
|
|
