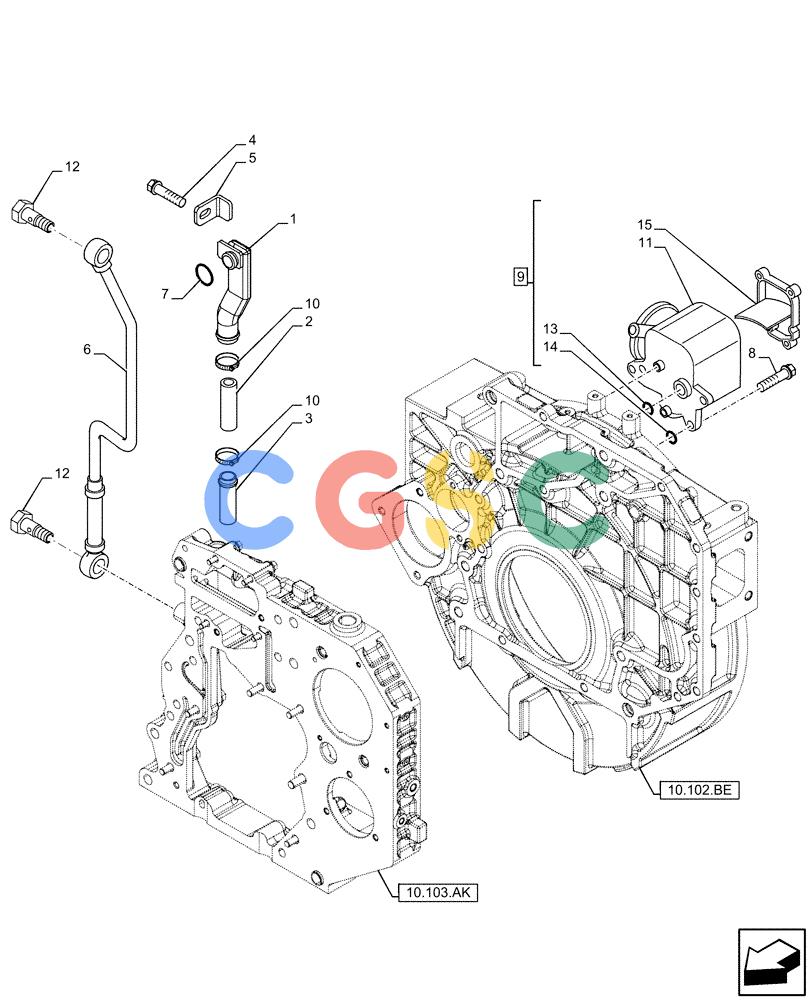

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (10.304.AP) - BREATHER, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897534 | [1] | TUBE | TOR |
| 2. | 4897546 | [1] | RUBBER SLEEVE | TORAlternative Superseded by part number: 2854521 |
| 2. | 2854521 | [1] | HOSE | TORAlternative Superseded by part number: 4897546 |
| 3. | 4897547 | [1] | TUBE | TOR |
| 4. | 4897537 | [1] | SCREW | TORM6 x 1 x 10 |
| 5. | 4897536 | [1] | BRACKET | TOR |
| 6. | 4899219 | [1] | TUBE | TORASSY |
| 7. | 4898439 | [1] | O-RING,20.29mm ID x 2.62mm Width | TOR Superseded by part number: 17282081 |
| 8. | 4899092 | [3] | SCREW,Hex Flg, M6 x 1 x 25 | TOR |
| 9. | 4892871 | [1] | BREATHER | TORASSY, Incl 11 - 15 |
| 10. | 4893234 | [2] | HOSE CLAMP | TORAlternative |
| 12. | 2852772 | [2] | BANJO BOLT | TOR Superseded by part number: |
| 13. | 4898372 | [1] | O-RING,13.11mm ID x 2.62mm Width | TOR |
| 14. | 2830304 | [1] | O-RING | TOR |
